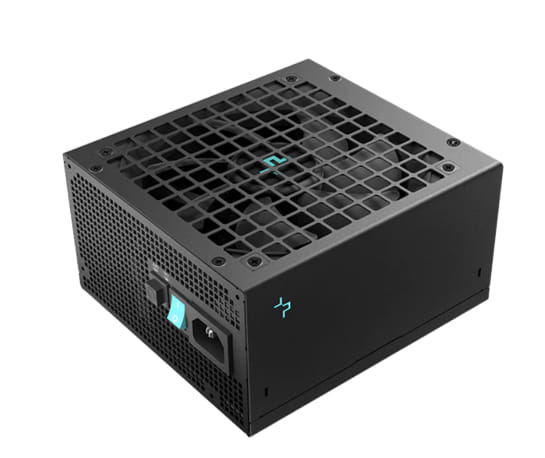

DeepCool PX1000 G 80 GOLD Power Supply, 135mm Fan, Japan Electrolytic Capacitors, DC to DC, ATX12V V3.0, 100,000 MTBF, 90% Efficiency
PX1000GThe DeepCool PX1000G is a newly designed power supply that meets the latest ATX 3.0 standard. With a dedicated 12VHPWR, 2 EPS, and 3 PCI e ports, the PX1000G provides stable power for a wide range of components.
Type ATX12V V3.0
Product Dimensions 150 -160 -86mm (W x L x H)
Efficiency certification 80Plus GOLD/Cybenetics_Platinum
Fan Size 135mm
Fan Bearing FDB (Fluid Dynamic Bearing)
Topology Active PFC Half Bridge SRC LLC DC to DC
Capacitors Full Japan Electrolytic Capacitors
Power Good Signal 100 150ms
Hold Up Time 16ms
Efficiency 90% Under Typical Load(50% Loading)
Protection OPP/OVP/SCP/OTP/OCP/UVP
Operation Temperature 0 40
Regulatory CE/FCC/CCC/TUV RH/RCM/EAC/CAN ICES 003(B)/NMB 003(B)/UKCA/BIS/KC;
Type ATX12V V3.0
Product Dimensions 150 -160 -86mm (W x L x H)
Efficiency certification 80Plus GOLD/Cybenetics_Platinum
Fan Size 135mm
Fan Bearing FDB (Fluid Dynamic Bearing)
Topology Active PFC Half Bridge SRC LLC DC to DC
Capacitors Full Japan Electrolytic Capacitors
Power Good Signal 100 150ms
Hold Up Time 16ms
Efficiency 90% Under Typical Load(50% Loading)
Protection OPP/OVP/SCP/OTP/OCP/UVP
Operation Temperature 0 40
Regulatory CE/FCC/CCC/TUV RH/RCM/EAC/CAN ICES 003(B)/NMB 003(B)/UKCA/BIS/KC;
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 1000 W |
| Peak power This is the maximum power required by the device or peak music power. | 1000 W |
| Maximum input current (@110V) | 6.5 A |
| Maximum input current (@220V) | 13 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 999.6 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 16 ms |
| Efficiency | 90% |
| Power protection features Features that protect the device against power problems e.g. overload. | Over power, Over voltage, Overcharge, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 2 |
| SATA power cable length | 150,500 mm |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 1 |
| Peripheral (Molex) power cable length | 150,500 mm |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power cable length | 65 cm |
| CPU power connector (4+4 pin) |
 |
| CPU power cable length | 65 cm |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Supported motherboard form factors Design of the supported motherboards. | ATX |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 3.0 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 100000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 13.5 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Packaging content | |
| Cables included | PCIe, Peripheral (Molex), SATA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 160 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Packaging data | |
| Package type The type of product package e.g. box. | Box |
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | CCC, RoHS, WEEE |
| SKU | 726002 |
| MPN | R-PXA00G-FC0B-AU |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| PSU Form Factor | ATX / PS2 |
| Stock Availability | Available for Shipping, In Stock at Blacktown, In Stock at Castle Hill |
| Product Use | General, Gaming |
| Warranty Period | 10 Years Warranty |
