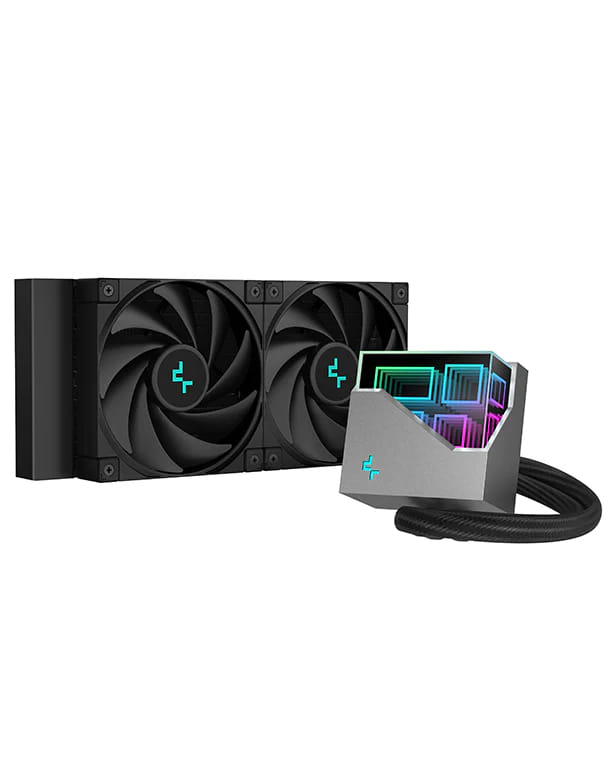

DeepCool LT520, All in one liquid cooler, 12 cm, 85.85 cfm, Black
The DeepCool LT520 high performance liquid CPU cooler provides strong heat dissipation power with a 240mm radiator, two precision tuned FK120 fans, and a multidimensional infinity mirror top cap.
LT520
240mm High Performance Liquid CPU Cooler
BREAK OPEN ANOTHER DIMENSION
A three dimensional infinity mirror surface is revealed underneath the top cover that offers a new visual experience through a multi faceted geometric reflection.
A NEW ERA OF DeepCool
Built on our 4th Generation high performance water pump that maximizes cooling performance featuring:
Improved microchannel design ensures optimal coolant flow.
Powerful three phase drive motor up to 3100 RPM.
Thick solid copper base with a seamless match.
EXTREMELY POWERFUL
Maximize cooling potential with DeepCool FK120 fans that are balanced to perfection for both performance and operational efficiency. The sturdy frame and fluid dynamic bearings offer stable and long term reliability.
500 2250 RPM Dynamic PWM Range
85.85 CFM Supreme Airflow
3.27 mmAq High Static Pressure
32.9 dB(A) Full Load Noise
SYNCHRONIZE YOUR SETUP WITH RGB LIGHTING EFFECTS
Coordinate your colors through supported RGB software and motherboard synchronization to access control for different lighting effects that match the rest of your setup.
SIMPLE AND SECURE
The installation process is intuitive and simple to use ensuring a proper fit and pressure match on any platform. The newly designed brackets are blacked out and stealthy hidden when installed into your system.
LT520
240mm High Performance Liquid CPU Cooler
BREAK OPEN ANOTHER DIMENSION
A three dimensional infinity mirror surface is revealed underneath the top cover that offers a new visual experience through a multi faceted geometric reflection.
A NEW ERA OF DeepCool
Built on our 4th Generation high performance water pump that maximizes cooling performance featuring:
Improved microchannel design ensures optimal coolant flow.
Powerful three phase drive motor up to 3100 RPM.
Thick solid copper base with a seamless match.
EXTREMELY POWERFUL
Maximize cooling potential with DeepCool FK120 fans that are balanced to perfection for both performance and operational efficiency. The sturdy frame and fluid dynamic bearings offer stable and long term reliability.
500 2250 RPM Dynamic PWM Range
85.85 CFM Supreme Airflow
3.27 mmAq High Static Pressure
32.9 dB(A) Full Load Noise
SYNCHRONIZE YOUR SETUP WITH RGB LIGHTING EFFECTS
Coordinate your colors through supported RGB software and motherboard synchronization to access control for different lighting effects that match the rest of your setup.
SIMPLE AND SECURE
The installation process is intuitive and simple to use ensuring a proper fit and pressure match on any platform. The newly designed brackets are blacked out and stealthy hidden when installed into your system.
| Performance | |
| Suitable location Locations in which the product can be used. | Processor |
| Type Characteristics of the device. | All-in-one liquid cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5, Socket sTR4, Socket sTRX4 |
| Maximum airflow | 85.85 cfm |
| Maximum air pressure | 3.27 mmH2O |
| Fan noise level (max) | 32.9 dB |
| Pump noise level | 19 dB |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Pump connector | 3-pin |
| Quantity per pack | 1 pc(s) |
| Pump motor speed | 3100 RPM |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 2250 RPM |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Radiator material | Aluminum |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Illumination LED |
 |
| LED connector type | 3-pin |
| Fan connector | 4-pin |
| Power | |
| Voltage | 12 V |
| Fan power consumption | 2.64 W |
| Pump power consumption | 4.56 W |
| LED voltage | 5 V |
| Pump voltage | 12 V |
| Pump current | 0.38 mA |
| Fan voltage | 12 V |
| Fan current | 0.22 A |
| LED power consumption (pump) | 3.15 W |
| Weight & dimensions | |
| Radiator width | 28.2 cm |
| Radiator depth | 12 cm |
| Radiator height | 2.7 cm |
| Tube length | 41 cm |
| Pump width | 9.4 cm |
| Pump depth | 6.8 cm |
| Pump height | 8 cm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.54 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| SKU | 707678 |
| MPN | R-LT520-BKAMNF-G-1 |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.deepcool.com/ |
| Stock Availability | Available for Shipping, In Stock at Warehouse |
