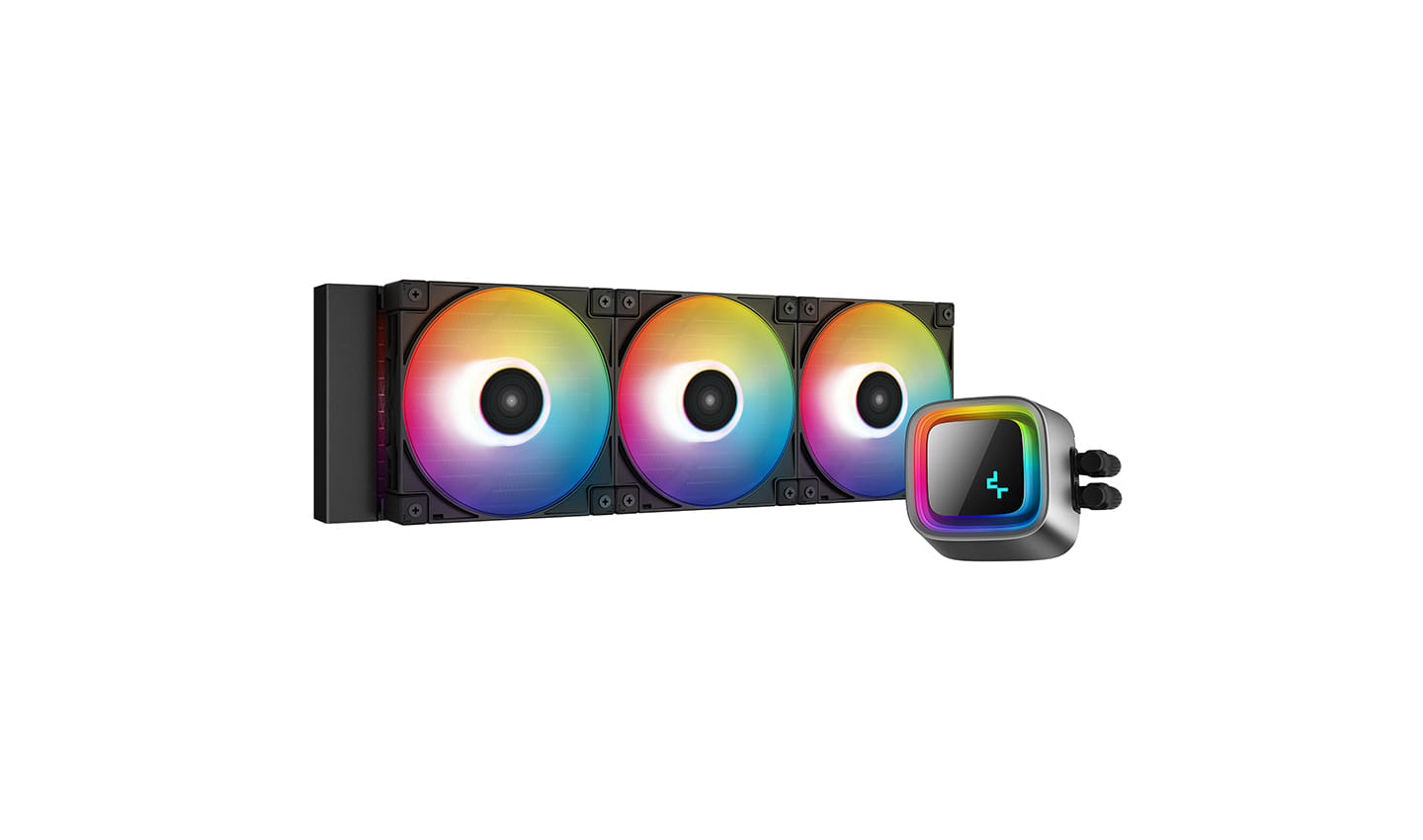

DeepCool LS720 Premium Liquid CPU Cooler, 360mm Radiator, 3xFC120 A-RGB PWM Fans, Low Noise LGA2066/2011-v3/2011/1700/1200/1151 AMD sTRX4/sTR4/AM5/AM4
DeepCool LS720 premium liquid CPU cooler maximizes cooling performance and low-noise efficiency with a 360mm radiator, three FC120 A-RGB PWM fans, and an infinity mirror cap design.
INTEL LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD sTRX4/sTR4/AM5/AM4
COOL AND QUIET Get treated to excellent cooling and superb silent efficiency with the included FC120 fans boasting enhanced static pressure, concentrated airflow, and a fluid dynamic bearings.
Dynamic PWM Range 500~2250 RPM *
Supreme Airflow 85.85 CFM
Full Load Noise 32.9 dB(A)
Long Operational Lifespan 50,000 Hours
* The FC120 fans included on the LS series coolers feature different PWM range compared to retail models.
SIMPLE AND SECURE Installation is quick and easy with newly designed mounting brackets that keep your cooler fastened safely on both Intel and AMD platforms.
CUSTOMIZE YOUR LOOK The new infinity mirror pump face design projects two light loops for a mesmerizing visual effect while also allowing installation in any orientation with a independently rotatable logo plate. For full customization, an additional blank plate is provided for your own design.
Technical Spec
Net Weight 1607 g
Radiator Dimensions 402 -120 -27 mm
Radiator Material Aluminum
Tube length 410 mm
Pump Dimensions 86 -74 -57 mm
Pump Speed 3100 RPM 10%
Pump Noise 19 dB(A)
Pump Connector 3-pin
Pump Rated Voltage 12 VDC
Pump Rated Current 0.47 A
Pump Power Consumption 5.64 W
Fan Dimensions 120 -120 -25 mm
Fan Speed 500~2250 RPM 10%
Fan Airflow 85.85 CFM
Fan Air Pressure 3.27 mmAq
Fan Noise 32.9 dB(A)
Fan Connector 4-pin PWM
Bearing Type Fluid Dynamic Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.29 A
Fan Power Consumption 3.48 W
LED Type Addressable RGB LED
LED Connector 3-pin(+5V-D-G)
LED Rated Voltage 5 VDC
LED Power Consumption 2.2 W 1/4 PUMP 1/4 / 5.4 W 1/4 FAN -3 1/4
INTEL LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD sTRX4/sTR4/AM5/AM4
COOL AND QUIET Get treated to excellent cooling and superb silent efficiency with the included FC120 fans boasting enhanced static pressure, concentrated airflow, and a fluid dynamic bearings.
Dynamic PWM Range 500~2250 RPM *
Supreme Airflow 85.85 CFM
Full Load Noise 32.9 dB(A)
Long Operational Lifespan 50,000 Hours
* The FC120 fans included on the LS series coolers feature different PWM range compared to retail models.
SIMPLE AND SECURE Installation is quick and easy with newly designed mounting brackets that keep your cooler fastened safely on both Intel and AMD platforms.
CUSTOMIZE YOUR LOOK The new infinity mirror pump face design projects two light loops for a mesmerizing visual effect while also allowing installation in any orientation with a independently rotatable logo plate. For full customization, an additional blank plate is provided for your own design.
Technical Spec
Net Weight 1607 g
Radiator Dimensions 402 -120 -27 mm
Radiator Material Aluminum
Tube length 410 mm
Pump Dimensions 86 -74 -57 mm
Pump Speed 3100 RPM 10%
Pump Noise 19 dB(A)
Pump Connector 3-pin
Pump Rated Voltage 12 VDC
Pump Rated Current 0.47 A
Pump Power Consumption 5.64 W
Fan Dimensions 120 -120 -25 mm
Fan Speed 500~2250 RPM 10%
Fan Airflow 85.85 CFM
Fan Air Pressure 3.27 mmAq
Fan Noise 32.9 dB(A)
Fan Connector 4-pin PWM
Bearing Type Fluid Dynamic Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.29 A
Fan Power Consumption 3.48 W
LED Type Addressable RGB LED
LED Connector 3-pin(+5V-D-G)
LED Rated Voltage 5 VDC
LED Power Consumption 2.2 W 1/4 PUMP 1/4 / 5.4 W 1/4 FAN -3 1/4
| Performance | |
| Suitable location Locations in which the product can be used. | Processor |
| Type Characteristics of the device. | All-in-one liquid cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5, Socket TR4, Socket sTRX4 |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 2250 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 32.9 dB |
| Maximum airflow | 85.85 cfm |
| Maximum air pressure | 3.27 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Pump noise level | 19 dB |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Pump connector | 3-pin |
| Quantity per pack | 1 pc(s) |
| Pump motor speed | 3100 RPM |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Radiator material | Aluminum |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 3 fan(s) |
| Illumination LED |
|
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Multi |
| LED connector type | 3-pin |
| Fan connector | 4-pin |
| Power | |
| Fan power consumption | 3.48 W |
| Pump power consumption | 5.64 W |
| LED voltage | 5 V |
| Pump voltage | 12 V |
| Pump current | 470 mA |
| Fan voltage | 12 V |
| Fan current | 0.29 A |
| LED power consumption (fan) | 5.4 W |
| LED power consumption (pump) | 2.2 W |
| Weight & dimensions | |
| Radiator width | 40.2 cm |
| Radiator depth | 12 cm |
| Radiator height | 2.7 cm |
| Tube length | 41 cm |
| Pump width | 8.6 cm |
| Pump depth | 7.4 cm |
| Pump height | 5.7 cm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.61 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Packaging content | |
| Package type The type of product package e.g. box. | Box |
| Mounting kit |
|
| Screws included |
|
| CPU bracket(s) |
|
| Other features | |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | China |
| SKU | 643230 |
| MPN | R-LS720-BKAMNT-G-1 |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.deepcool.com/ |
| Stock Availability | Available for Shipping, In Stock at Bankstown |
