DeepCool LS520 WH, All in one liquid cooler, 12 cm, 500 RPM, 2250 RPM, 32.9 dB, 85.85 cfm
LS520 WH
Elite performance

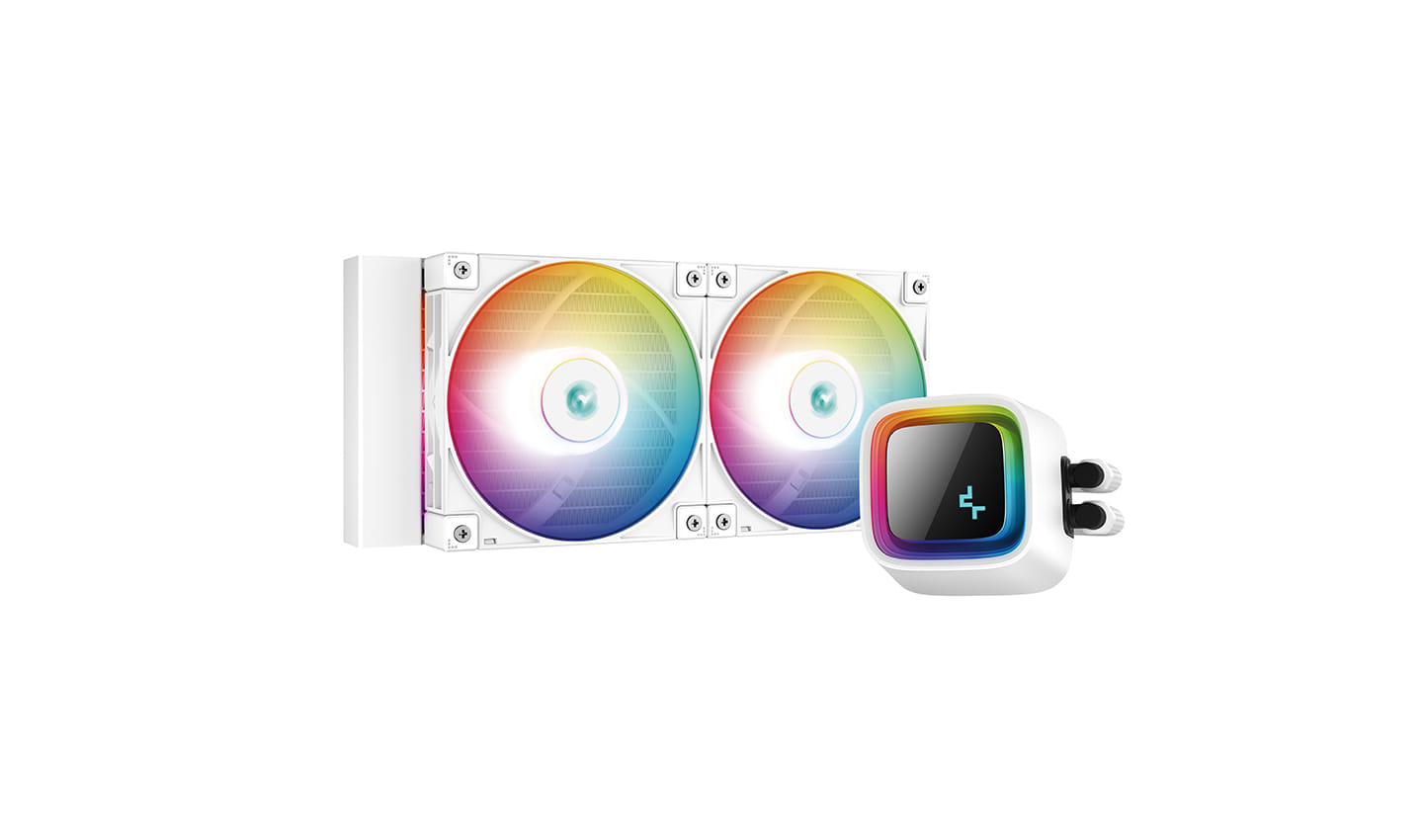

The DeepCool LS520 WH premium liquid CPU cooler maximizes cooling performance and low noise efficiency with a 240mm radiator, two FC120 A RGB PWM fans, and an infinity mirror cap design.
A NEW ERA OF DEEPCOOL
Built on our 4th Generation high performance water pump that maximizes cooling performance featuring:
1. Improved microchannel design ensures optimal coolant flow.
2. Powerful three phase drive motor up to 3100 RPM.
3. Thick solid copper base with a seamless match.
COOL AND QUIET
Get treated to excellent cooling and superb silent efficiency with the included FC120 fans boasting enhanced static pressure, concentrated airflow, and a fluid dynamic bearings.
SIMPLE AND SECURE
Installation is quick and easy with newly designed mounting brackets that keep your cooler fastened safely on both Intel and AMD platforms.
CUSTOMIZE YOUR LOOK
The new infinity mirror pump face design projects two light loops for a mesmerizing visual effect while also allowing installation in any orientation with a independently rotatable logo plate. For full customization, an additional blank plate is provided for your own design.
SYNCHRONIZE YOUR SETUP WITH RGB LIGHTING EFFECTS
Coordinate your colors through supported RGB software and motherboard synchronization to access control for different lighting effects. A default Auto RGB rainbow effect is enabled when no controller is detected allowing limited functionality on motherboards without 5V A RGB headers.
Elite performance
The DeepCool LS520 WH premium liquid CPU cooler maximizes cooling performance and low noise efficiency with a 240mm radiator, two FC120 A RGB PWM fans, and an infinity mirror cap design.
A NEW ERA OF DEEPCOOL
Built on our 4th Generation high performance water pump that maximizes cooling performance featuring:
1. Improved microchannel design ensures optimal coolant flow.
2. Powerful three phase drive motor up to 3100 RPM.
3. Thick solid copper base with a seamless match.
COOL AND QUIET
Get treated to excellent cooling and superb silent efficiency with the included FC120 fans boasting enhanced static pressure, concentrated airflow, and a fluid dynamic bearings.
SIMPLE AND SECURE
Installation is quick and easy with newly designed mounting brackets that keep your cooler fastened safely on both Intel and AMD platforms.
CUSTOMIZE YOUR LOOK
The new infinity mirror pump face design projects two light loops for a mesmerizing visual effect while also allowing installation in any orientation with a independently rotatable logo plate. For full customization, an additional blank plate is provided for your own design.
SYNCHRONIZE YOUR SETUP WITH RGB LIGHTING EFFECTS
Coordinate your colors through supported RGB software and motherboard synchronization to access control for different lighting effects. A default Auto RGB rainbow effect is enabled when no controller is detected allowing limited functionality on motherboards without 5V A RGB headers.
| Performance | |
| Suitable location Locations in which the product can be used. | Processor |
| Type Characteristics of the device. | All-in-one liquid cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5, Socket TR4, Socket sTRX4 |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 2250 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 32.9 dB |
| Maximum airflow | 85.85 cfm |
| Maximum air pressure | 3.27 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Pump noise level | 19 dB |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Pump connector | 3-pin |
| Quantity per pack | 1 pc(s) |
| Pump motor speed | 3100 RPM |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Radiator material | Aluminum |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Illumination LED |
|
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Multi |
| LED connector type | 3-pin |
| Fan connector | 4-pin |
| Power | |
| Fan power consumption | 3.48 W |
| Pump power consumption | 5.64 W |
| Pump voltage | 12 V |
| Pump current | 470 mA |
| Fan voltage | 12 V |
| Fan current | 0.29 A |
| LED power consumption (fan) | 3.6 W |
| LED power consumption (pump) | 2.2 W |
| Weight & dimensions | |
| Radiator width | 28.2 cm |
| Radiator depth | 12 cm |
| Radiator height | 2.7 cm |
| Tube length | 41 cm |
| Pump width | 8.6 cm |
| Pump depth | 7.4 cm |
| Pump height | 5.7 cm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.3 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Packaging content | |
| Package type The type of product package e.g. box. | Box |
| Mounting kit |
|
| Screws included |
|
| CPU bracket(s) |
|
| Other features | |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | China |
| SKU | 707675 |
| MPN | R-LS520-WHAMNT-G-1 |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.deepcool.com/ |
