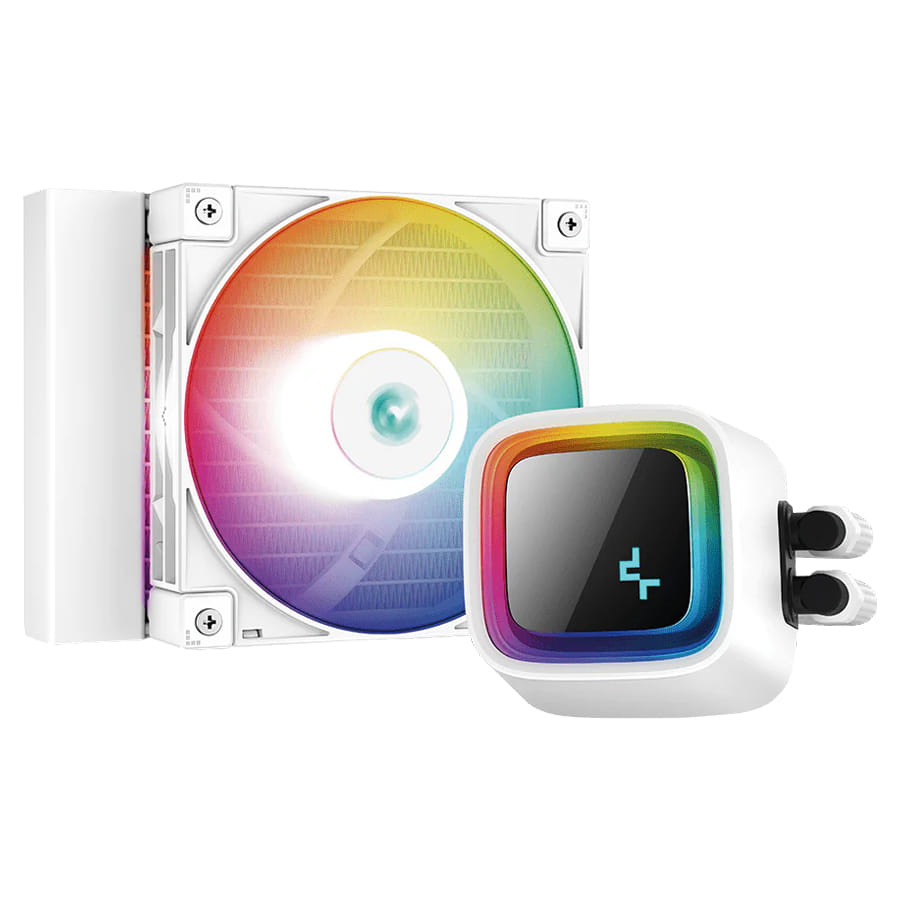

Aluminum Radiator Material; Fluid Dynamic Bearing; Fan Airflow 85.85 CFM; Fan Connector 4-pin PWM; Application for Intel LGA2066/2011-v3/2011/1700/1200/1151/1150/1155, AM5/AM4
| Performance | |
| Suitable location Locations in which the product can be used. | Processor |
| Type Characteristics of the device. | Liquid cooling kit |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 2250 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 32.9 dB |
| Maximum airflow | 85.85 cfm |
| Maximum air pressure | 3.27 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Pump noise level | 19 dB |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Pump connector | 3-pin |
| Quantity per pack | 1 pc(s) |
| Pump motor speed | 3100 RPM |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Radiator material | Aluminum |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Illumination LED |
|
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Multi |
| LED connector type | 3-pin |
| Fan connector | 4-pin |
| Power | |
| Fan power consumption | 3.48 W |
| Pump power consumption | 5.64 W |
| Pump voltage | 12 V |
| Pump current | 470 mA |
| Fan voltage | 12 V |
| Fan current | 0.29 A |
| LED power consumption (fan) | 1.8 W |
| LED power consumption (pump) | 2.2 W |
| Weight & dimensions | |
| Radiator width | 15.9 cm |
| Radiator depth | 12 cm |
| Radiator height | 2.7 cm |
| Tube length | 31 cm |
| Pump width | 8.6 cm |
| Pump depth | 7.4 cm |
| Pump height | 5.7 cm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Packaging content | |
| Package type The type of product package e.g. box. | Box |
| Mounting kit |
|
| Screws included |
|
| CPU bracket(s) |
|
| Other features | |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | China |
| SKU | 688387 |
| MPN | R-LS320-WHAMMT-G-1 |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Fan Size (mm) | 120mm |
| Cooling Technology | Liquid |
| Product Use | General |
| Product Features | RGB |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.deepcool.com/ |
