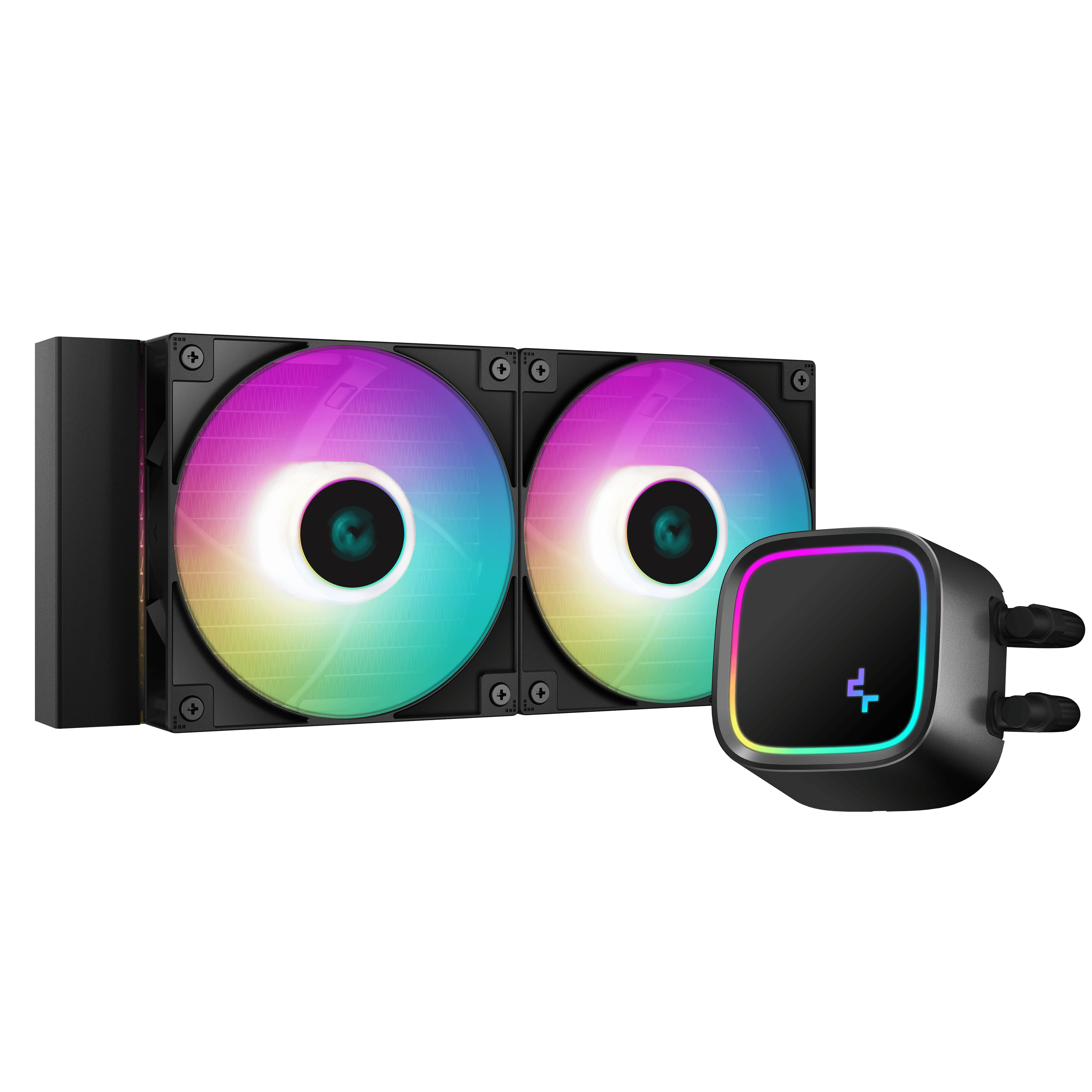

DeepCool LE520, Liquid
POWERFUL HEAT DISSIPATION
Thanks to an efficient micro channel water block, thickened copper cold plate, and new high performance ARGB fans, the LE520 achieves excellent heat dissipation of 220W TDP.
NEW SERIES DESIGN
The LE520 features a new series pump with rounded corners, a square shape, bright ARGB, and additional durability. The low pump height of 52mm provides excellent compatibility for various ITX cases.
HIGH PERFORMANCE ARGB FANS
The included high performance ARGB fans are vibrant, bright, and support various motherboard syncronizations. The fans provide maximum CFM and static pressure at higher RPMs while maintaining a quiet noise level of below 30dB at lower speeds.
ANTI LEAK TECHNOLOGY
The LE520 liquid cooler features DeepCool s patented Anti Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.
SIMPLE AND SECURE
The installation is simple and compatible with the latest mainstream Intel and AMD processors.
Thanks to an efficient micro channel water block, thickened copper cold plate, and new high performance ARGB fans, the LE520 achieves excellent heat dissipation of 220W TDP.
NEW SERIES DESIGN
The LE520 features a new series pump with rounded corners, a square shape, bright ARGB, and additional durability. The low pump height of 52mm provides excellent compatibility for various ITX cases.
HIGH PERFORMANCE ARGB FANS
The included high performance ARGB fans are vibrant, bright, and support various motherboard syncronizations. The fans provide maximum CFM and static pressure at higher RPMs while maintaining a quiet noise level of below 30dB at lower speeds.
ANTI LEAK TECHNOLOGY
The LE520 liquid cooler features DeepCool s patented Anti Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.
SIMPLE AND SECURE
The installation is simple and compatible with the latest mainstream Intel and AMD processors.
| Performance | |
| Suitable location Locations in which the product can be used. | Processor |
| Type Characteristics of the device. | All-in-one liquid cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Maximum airflow | 85.85 cfm |
| Maximum air pressure | 3.27 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Fan noise level (max) | 32.9 dB |
| Pump noise level | 17.8 dB |
| Fan bearing technology | Hydro bearing |
| Pump connector | 3-pin |
| Quantity per pack | 1 pc(s) |
| Pump motor speed | 2400 RPM |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 2250 RPM |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Radiator material | Aluminum |
| Base plate material | Copper |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Number of fan blades | 9 |
| Illumination LED |
|
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Multi |
| LED connector type | 3-pin |
| Fan connector | 4-pin |
| Power | |
| Fan power consumption | 3 W |
| Pump power consumption | 2.4 W |
| Thermal Design Power (TDP) | 220 W |
| LED voltage | 5 V |
| Pump voltage | 12 V |
| Pump current | 210 mA |
| Fan voltage | 12 V |
| Fan current | 0.25 A |
| LED power consumption (fan) | 2.1 W |
| LED power consumption (pump) | 2.25 W |
| Weight & dimensions | |
| Radiator width | 12 cm |
| Radiator depth | 28.2 cm |
| Radiator height | 2.7 cm |
| Tube length | 41 cm |
| Pump width | 9.1 cm |
| Pump depth | 8 cm |
| Pump height | 5.2 cm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.24 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Packaging content | |
| Package type The type of product package e.g. box. | Box |
| Mounting kit |
|
| Screws included |
|
| CPU bracket(s) |
|
| SKU | 725993 |
| MPN | R-LE520-BKAMMN-G-1 |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Product Features | RGB |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.deepcool.com/ |
| Stock Availability | Available for Shipping, In Stock at Bankstown |
