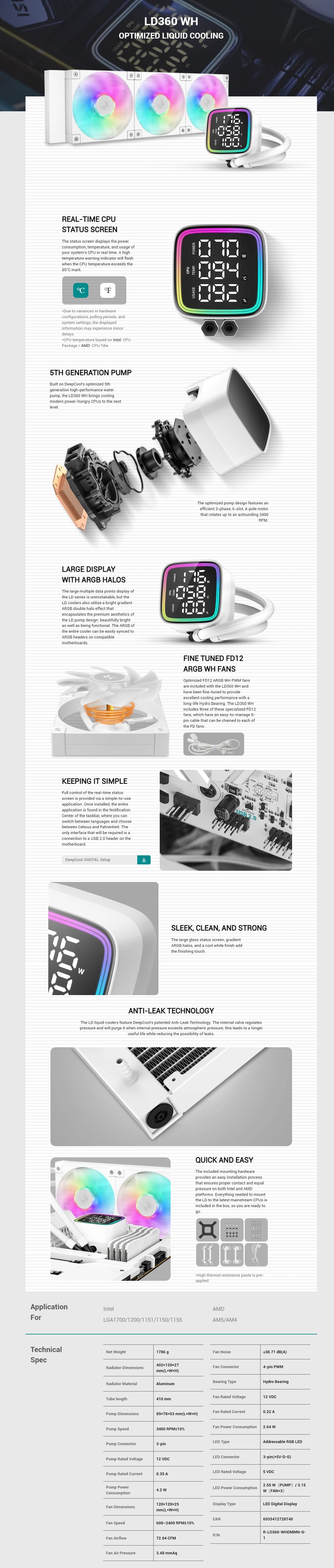

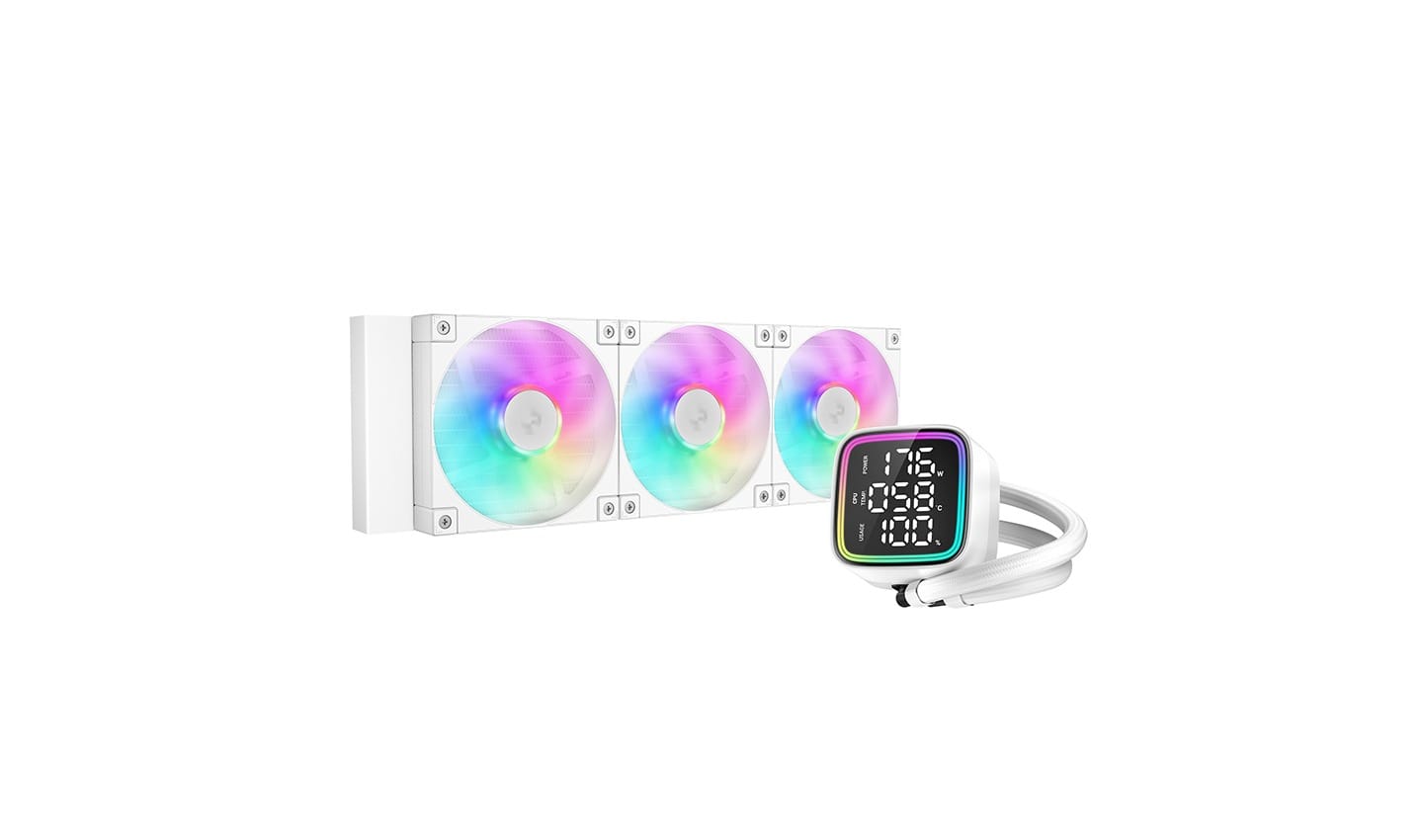

Real Time CPU Status Screen; 5th Generation Pump; Large display with ARGB Halos; Fine tuned FD12 ARGB WH Fans
| Performance | |
| Suitable location Locations in which the product can be used. | Processor |
| Type Characteristics of the device. | All-in-one liquid cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Maximum airflow | 72.04 cfm |
| Maximum air pressure | 3.48 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Bearing type | Hydro Dynamic Bearing (HDB) |
| Fan noise level (max) | 38.71 dB |
| Pump noise level | 21 dB |
| Pump connector | 3-pin |
| Quantity per pack | 1 pc(s) |
| Pump motor speed | 3400 RPM |
| Fan speed (min) | 600 RPM |
| Fan speed (max) | 2400 RPM |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Radiator material | Aluminum |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 3 fan(s) |
| Illumination LED |
|
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Multi |
| LED connector type | 3-pin |
| Fan connector | 4-pin |
| Display type Type of display (screen) e.g. LCD. | LED |
| Power | |
| Fan power consumption | 2.64 W |
| Pump power consumption | 4.2 W |
| LED voltage | 5 V |
| Pump voltage | 12 V |
| Pump current | 350 mA |
| Fan voltage | 12 V |
| Fan current | 0.22 A |
| LED power consumption (fan) | 3.15 W |
| LED power consumption (pump) | 2.55 W |
| Weight & dimensions | |
| Radiator width | 12 cm |
| Radiator depth | 40.2 cm |
| Radiator height | 2.7 cm |
| Tube length | 41 cm |
| Pump width | 7.8 cm |
| Pump depth | 8.9 cm |
| Pump height | 5.3 cm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.79 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Packaging content | |
| Package type The type of product package e.g. box. | Box |
| Mounting kit |
|
| Screws included |
|
| Number of nuts | 8 |
| Installation instruction |
|
| CPU bracket(s) |
|
| SKU | 806778 |
| MPN | R-LD360-WHDMMN-G-1 |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
