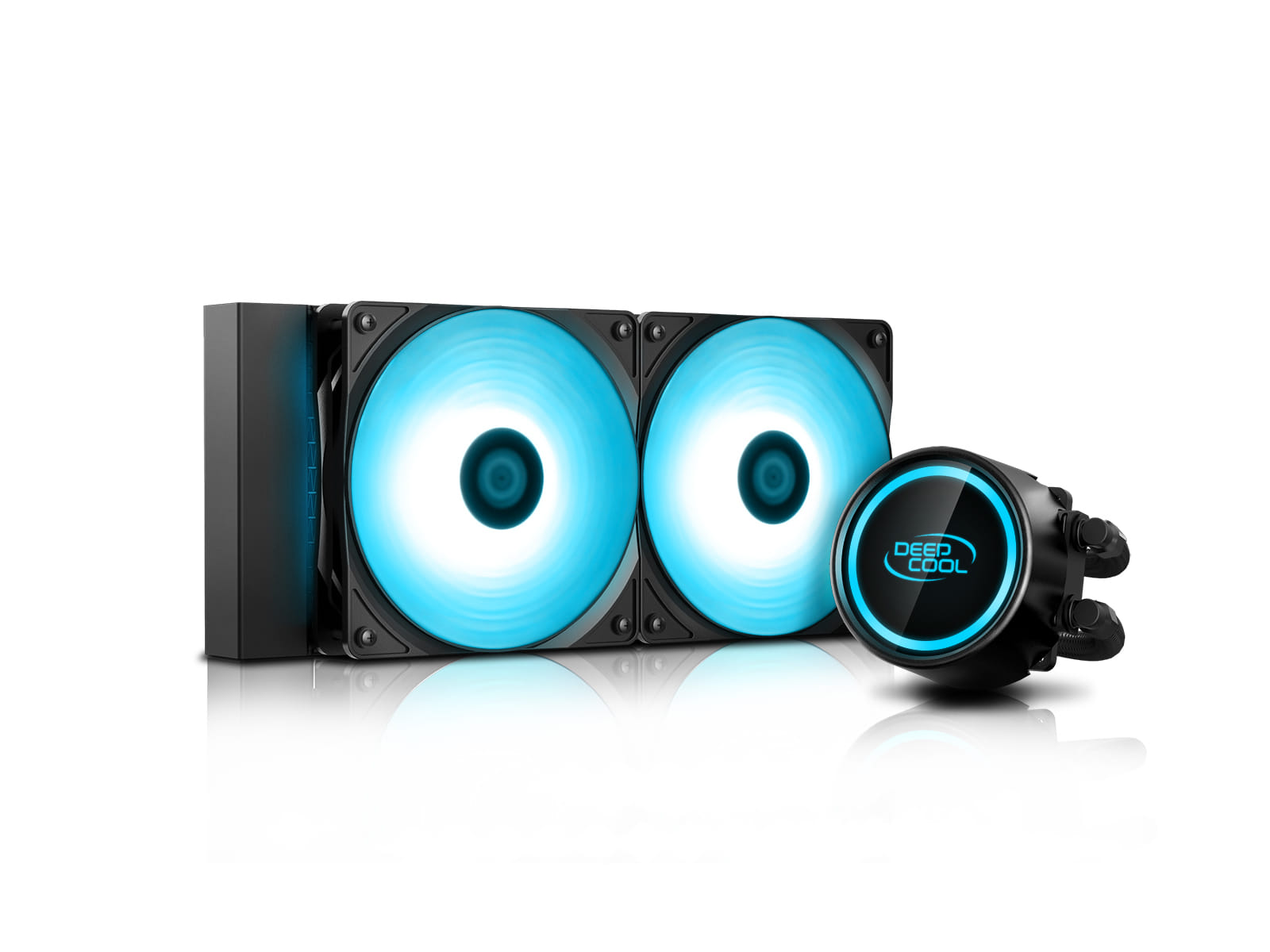

Compatible with LGA20XX/LGA1366/LGA115X/1200 (Intel 165W) & AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1 (AMD 250W) - Radiator Dimensions: 282x120x27mm - Aluminium - Tube Length: 310mm - Pump Speed: 2400 RPM - Fan Dimensions: 120x120x25mm (x2) - Fan Speed: 500 ~ 1800 RPM - Airflow: 69.34 CFM - RGB LED
| Performance | |
| Purpose What the product is used for. | Motherboard |
| Built-in fan |
 |
| Radiator Cooling system includes radiator. |
|
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 30 dB |
| Fan noise level (max) | 30 dB |
| Pump noise level | 17.8 dB |
| Bearing technology | Hydro |
| Pulse-width modulation (PWM) support |
 |
| Fan connector | 4-pin |
| Pump connector | 3-pin |
| Pump motor speed | 2400 RPM |
| Pump motor speed (max) | 2400 RPM |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1800 RPM |
| Maximum airflow | 69.34 cfm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1356 (Socket B2), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Maximum air pressure | 2.42 mmH2O |
| Number of fans supported | 2 |
| Power | |
| Fan power consumption | 2.04 W |
| Pump power consumption | 2.4 W |
| Pump voltage | 12 V |
| Fan voltage | 12 V |
| Fan current | 0.17 A |
| Design | |
| Type Characteristics of the device. | Internal |
| Radiator material | Aluminium |
| Illumination LED |
|
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Red/Green/Blue |
| Lighting effects quantity | 3 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.29 kg |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Radiator width | 28.2 cm |
| Radiator depth | 12 cm |
| Radiator height | 2.7 cm |
| Tube length | 31 cm |
| Pump width | 9.1 cm |
| Pump depth | 7.9 cm |
| Pump height | 4.7 cm |
| SKU | 437768 |
| MPN | DP-H12RF-GL240V2 |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Fan Size (mm) | 120mm |
| Cooling Technology | Liquid |
| Product Use | General |
| Product Features | RGB |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.deepcool.com/ |
