2400 RPM+/-10%, 17.8 dB(A), 500-1800 RPM+/-10%, 69.34 CFM, 2.42 mmAq,

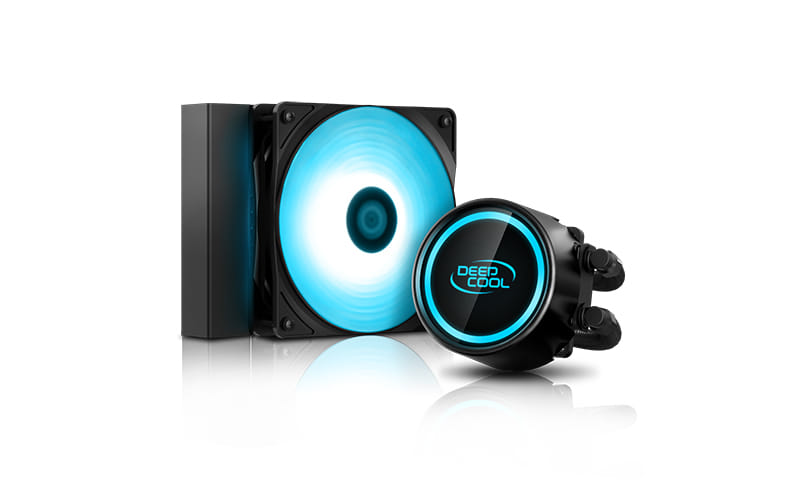

GAMMAxx L120 V2 GAMMAxx L series AIO coolers are known for their powerful performance, neat appearance, and tempting cost efficiency. The GAMMAxx L120 V2 upgraded the its reliability with Anti-leak Tech Inside system, so users can enjoy extreme processor performance without any leakage concerns.
About Anti-leak Tech Inside After 3 years of R&D, DEEPCOOL launched the new standard of liquid cooling system - The Anti-leak Tech.
The technology helps the system achieve an automated pressure balance, which will significantly improve operation safety of AIO liquid cooling systems. With this technology, Deepcool is setting a new standard for liquid cooling systems.
Optimized Micro Water-channel E-shaped micro water-channel design can effectively enhance the heat circulation efficiency and enlarge the thermal contact area.
Motherboard RGB Control The brand new water block and fan built-in 12V RGB lighting system fulfill your aesthetic desires and supports mainstream motherboards with synchronized lighting control.
Support Mainstream Intel & AMD Socket Ready for easy mounting and unrestricted direction installation on mainstream sockets of Intel/AMD.
The included 120mm RGB fan comes with 6 ultra-bright RGB LED lights, three in-built RGB effects (constant light, breathing and meteor) and PWM control with super silent performance.
About Anti-leak Tech Inside After 3 years of R&D, DEEPCOOL launched the new standard of liquid cooling system - The Anti-leak Tech.
The technology helps the system achieve an automated pressure balance, which will significantly improve operation safety of AIO liquid cooling systems. With this technology, Deepcool is setting a new standard for liquid cooling systems.
Optimized Micro Water-channel E-shaped micro water-channel design can effectively enhance the heat circulation efficiency and enlarge the thermal contact area.
Motherboard RGB Control The brand new water block and fan built-in 12V RGB lighting system fulfill your aesthetic desires and supports mainstream motherboards with synchronized lighting control.
Support Mainstream Intel & AMD Socket Ready for easy mounting and unrestricted direction installation on mainstream sockets of Intel/AMD.
The included 120mm RGB fan comes with 6 ultra-bright RGB LED lights, three in-built RGB effects (constant light, breathing and meteor) and PWM control with super silent performance.
| Performance | |
| Purpose What the product is used for. | Motherboard |
| Built-in fan |
 |
| Radiator Cooling system includes radiator. |
|
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 30 dB |
| Fan noise level (max) | 30 dB |
| Pump noise level | 17.8 dB |
| Bearing technology | Hydro |
| Pulse-width modulation (PWM) support |
 |
| Fan connector | 4-pin |
| Pump connector | 3-pin |
| Pump motor speed | 2400 RPM |
| Pump motor speed (max) | 2400 RPM |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1800 RPM |
| Maximum airflow | 69.34 cfm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Maximum air pressure | 2.42 mmH2O |
| Number of fans supported | 1 |
| Power | |
| Fan power consumption | 2.04 W |
| Pump power consumption | 2.4 W |
| Pump voltage | 12 V |
| Pump current | 0.2 mA |
| Fan voltage | 12 V |
| Fan current | 0.17 A |
| Design | |
| Type Characteristics of the device. | Internal |
| Radiator material | Aluminium |
| Illumination LED |
|
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Red/Green/Blue |
| Lighting effects quantity | 3 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 990 g |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Radiator width | 15.9 cm |
| Radiator depth | 12 cm |
| Radiator height | 2.7 cm |
| Tube length | 31 cm |
| Pump width | 9.1 cm |
| Pump depth | 7.9 cm |
| Pump height | 4.7 cm |
| SKU | 443804 |
| MPN | DP-H12RF-GL120V2 |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Fan Size (mm) | 120mm |
| Cooling Technology | Liquid |
| Product Use | General |
| Product Features | RGB |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.deepcool.com/ |
