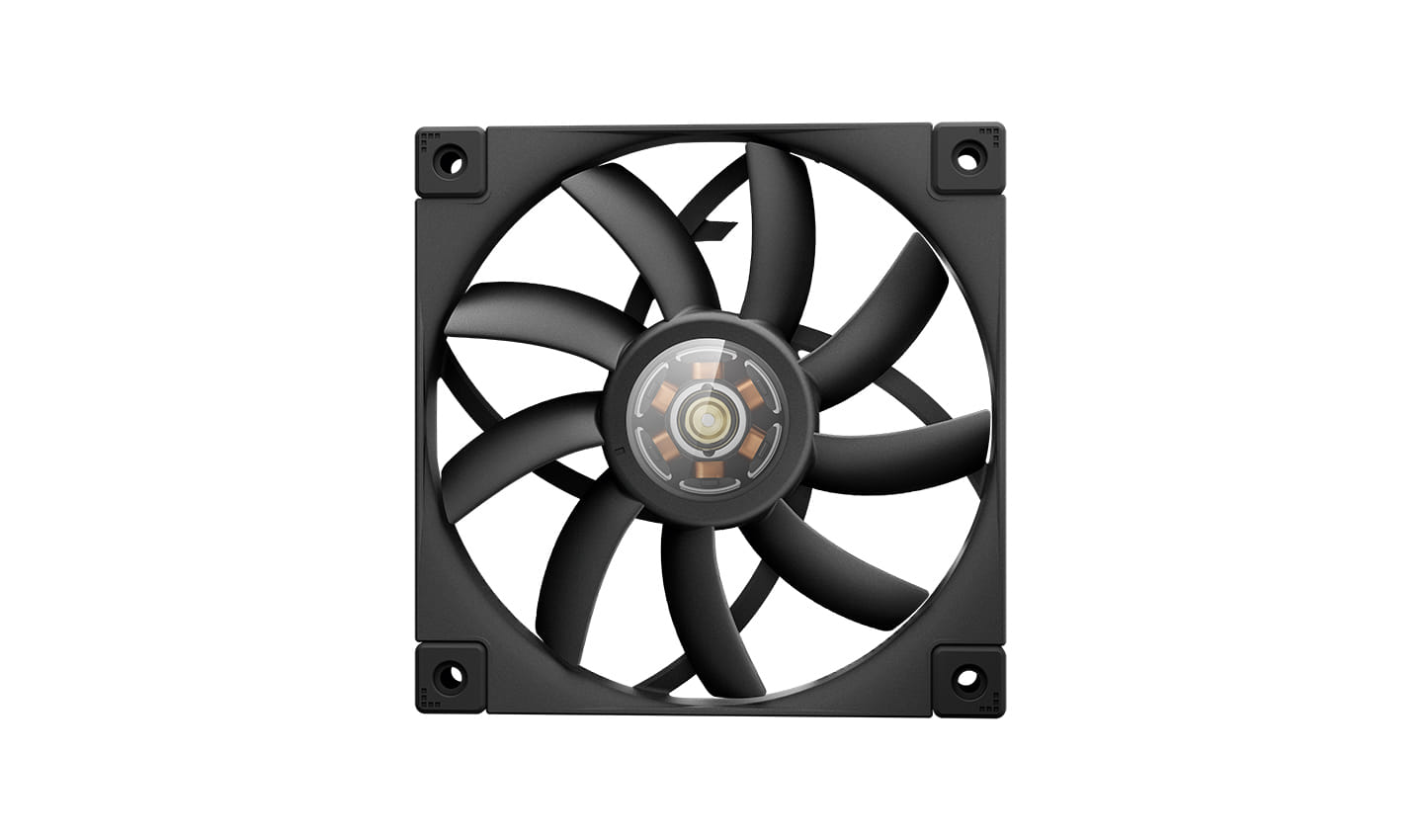

The DeepCool FT12 SLIM is a high-performance 120mm thin-profile PWM fan with excellent cooling power and silent operation-a great choice for CPU and radiator situations where clearance is at a premium.
SLIMMED DOWN PROFILE
With a thickness of 15mm, the FT12 SLIM is the most advantageous fan to use in small form factor systems.
SMALL BUT POWERFUL
Don't let the slim profile fool you; the FT12 SLIM fan provides all the performance you would expect from an elite 25mm thick cooling fan. The high static pressure and CFM levels make each fan a premium choice for CPU coolers and radiators.
ADVANCE DESIGN YOU CAN SEE
A window into the 3-phase 6-pole fan motor and FDB bearing design provides crystal-clear confidence in the quality of the FT12 SLIM fan. The magnets have been upgraded to neodymium, and the FOC closed-loop control increases stability. Subtle white LEDs are positioned under the bearing to highlight the craftsmanship of the FT SLIM fans.
REDUCED VIBRATIONS
Full-coverage rubber pads at each corner guarantee minimal fan vibration. The newer design provides quieter operation, increases performance, and extends the serviceable life of each fan.
SLIMMED DOWN PROFILE
With a thickness of 15mm, the FT12 SLIM is the most advantageous fan to use in small form factor systems.
SMALL BUT POWERFUL
Don't let the slim profile fool you; the FT12 SLIM fan provides all the performance you would expect from an elite 25mm thick cooling fan. The high static pressure and CFM levels make each fan a premium choice for CPU coolers and radiators.
ADVANCE DESIGN YOU CAN SEE
A window into the 3-phase 6-pole fan motor and FDB bearing design provides crystal-clear confidence in the quality of the FT12 SLIM fan. The magnets have been upgraded to neodymium, and the FOC closed-loop control increases stability. Subtle white LEDs are positioned under the bearing to highlight the craftsmanship of the FT SLIM fans.
REDUCED VIBRATIONS
Full-coverage rubber pads at each corner guarantee minimal fan vibration. The newer design provides quieter operation, increases performance, and extends the serviceable life of each fan.
Performance | |
Suitable location Locations in which the product can be used. | Computer case |
Type Characteristics of the device. | Air cooler |
Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
Rotational speed (min) | 500 RPM |
Rotational speed (max) | 1850 RPM |
Noise level (high speed) How loud the device is when used at high speed. | 25.6 dB |
Maximum airflow | 58.9 cfm |
Maximum air pressure | 2.42 mmH2O |
Pulse-width modulation (PWM) support | |
Bearing type | Fluid Dynamic Bearing (FDB) |
Fan noise level (max) | 25.6 dB |
Quantity per pack | 1 pc(s) |
Fan speed (min) | 500 RPM |
Fan speed (max) | 1850 RPM |
Design | |
Product colour The colour e.g. red, blue, green, black, white. | Black |
Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
Illumination LED | |
Fan connector | 4-pin |
Power | |
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 8.4 W |
Voltage | 12 V |
Rated voltage | 12 V |
Fan power consumption | 8.4 W |
Rated current | 0.15 A |
Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 0.7 A |
Weight & dimensions | |
Width The measurement or extent of something from side to side. | 120 mm |
Depth The distance from the front to the back of something. | 120 mm |
Height The measurement of the product from head to foot or from base to top. | 15 mm |
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 210 g |
Fan dimensions (W x D x H) | 120 x 120 x 15 mm |
Fan thickness | 1.5 cm |
Fan weight | 210 g |
Technical details | |
Compliance certificates | CE, UKCA |
Packaging content | |
Package type The type of product package e.g. box. | Box |
SKU | 806773 |
MPN | R-FT12SLIM-BKWPN1-G |
