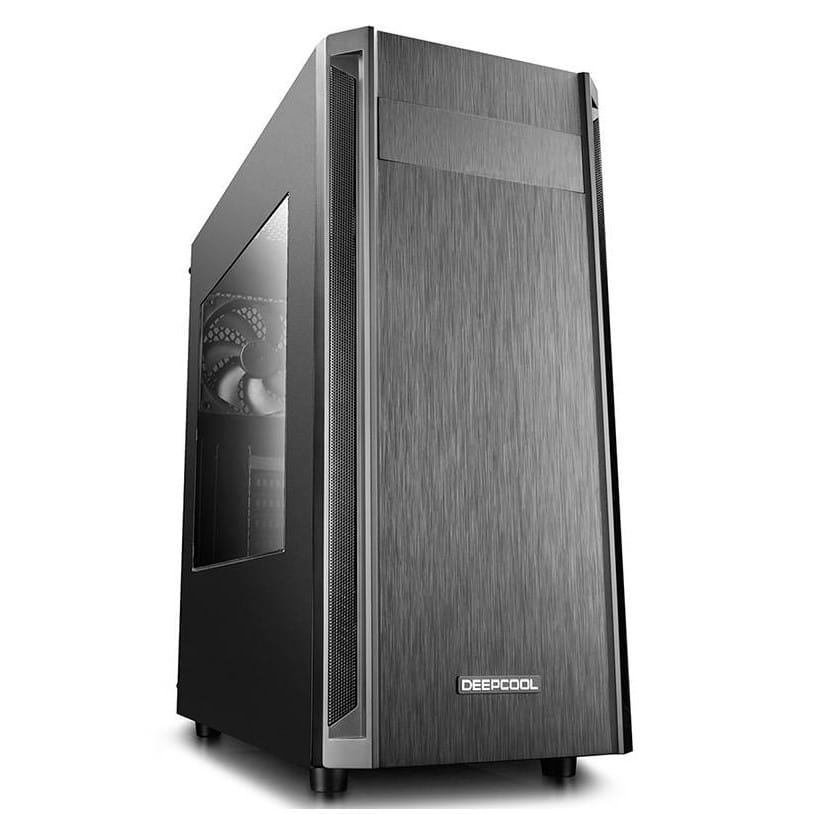

Deepcool D-Shield V2 ATX Case - Black - 1x 5.25", 2x 3.5"/2.5" Drive Bays, 2x 2.5" Drive Bays - 7x Expansion Slots - Pre-installed: Rear: 1x 120mm fan, Optional: Front: 3x 120mm, Top: 2x 120/140mm - 1x USB 3.0, 1x USB 2.0, 1x Audio, 1x Mic - Motherboard Compatibility: ATX/MICRO-ATX/MINI-ITX - DP-ATX-DSHIELD-V2 - 12 Months Limited Warranty
| Design | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Acrylonitrile butadiene styrene (ABS), SPCC |
| Form factor The shape or design of the product. | Midi Tower |
| Type Characteristics of the device. | PC |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Supported motherboard form factors Design of the supported motherboards. | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks. | 2 |
| Number of 5.25" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 5.25" drive bay, also known as full-height bays, were found in old PCs in the early to mid-1980s. They were 3¼″ high by 5¾″ wide, and up to 8″ deep (83 × 146 × 200 mm), used mainly for hard disks and floppy disk drives. | 1 |
| Number of 2.5" bays | 4 |
| Number of expansion slots | 7 |
| Side window A side window is a transparent side (or part of side) in a housing which enables you to see the internal space of the device. |
 |
| Cable management Description of improved cable management |
|
| Maximum CPU cooler height | 16.8 cm |
| Maximum graphics card length | 37 cm |
| Power supply | |
| Power supply included There is a power supply with this product. |
 |
| Supported power supply form factors | ATX |
| Ports & interfaces | |
| Audio input The type of audio input that the device requires, and the connection needed. |
|
| Audio output The type of audio output that the device produces, and the connector(s). |
|
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Cooling | |
| Front fans installed | 1x 120 mm |
| Number of front fans supported (max) | 3 |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Liquid cooling capability |
|
| Storage | |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 2.5,3.5,5.25" |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 210 mm |
| Depth The distance from the front to the back of something. | 438 mm |
| Height The measurement of the product from head to foot or from base to top. | 477 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 5 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 285 mm |
| Package depth The distance from the front to the back of the packaging. | 532 mm |
| Package height The distance from the top to the bottom of the packaging. | 520 mm |
| Other features | |
| Frame thickness | 0.6 mm |
| SKU | 316267 |
| MPN | ATX-DSHIELD-V2 |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.deepcool.com/ |
