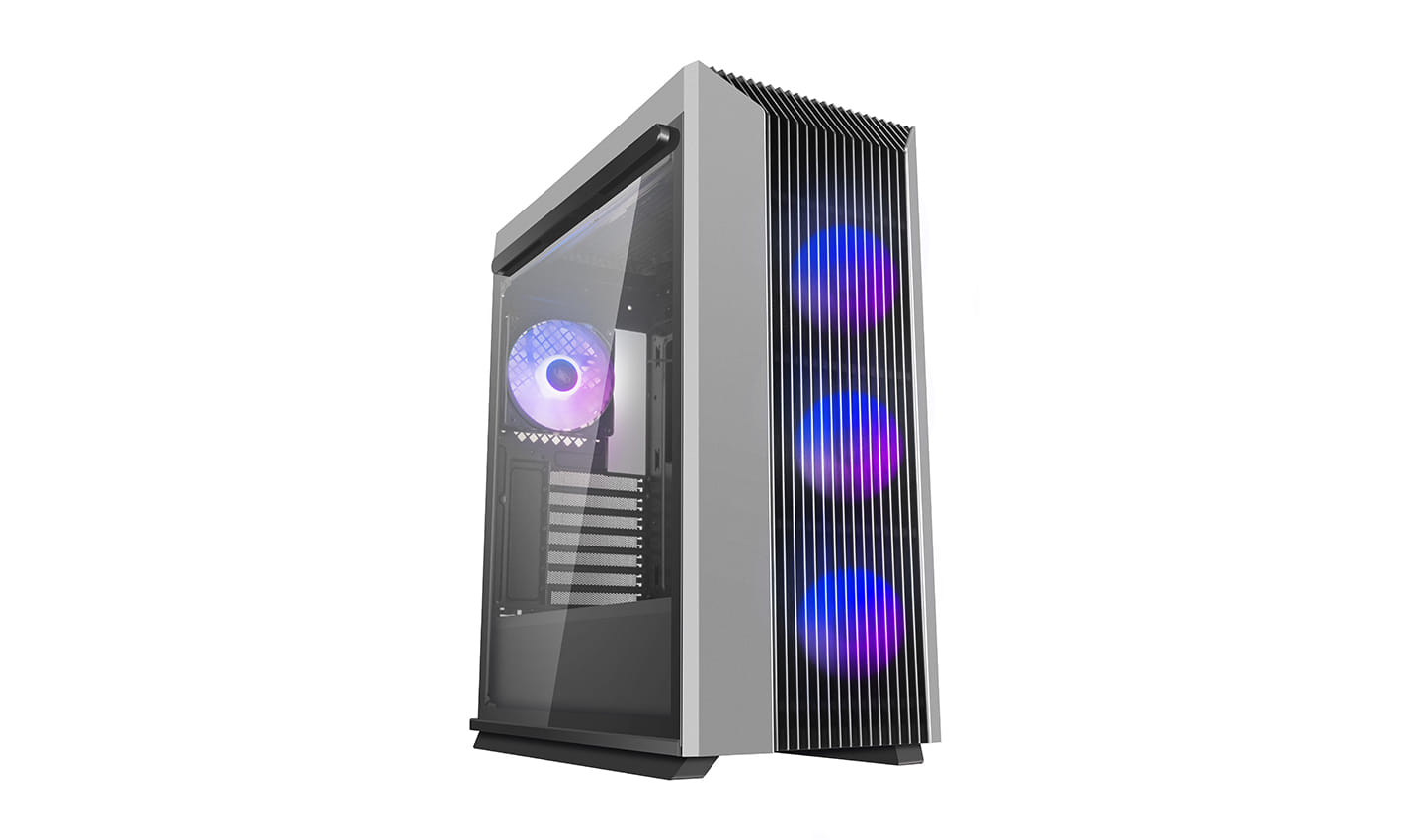

Deepcool CL500 4F-AP High Airflow Mid-Tower ATX Case Mesh Front Panel, Tempered Glass Side Panel, 4 Pre-installed A-RGB Fans
Deepcool CL500 4F AP is a mid-tower ATX case designed for high airflow and ease of use to provide builders a sensible chassis with better functionality.
Large mesh front panel
Magnetic side panels, one with tempered glass
4 A-RGB fans included
Support 120/240/280/360mm AIO radiator
Support up to six 120mm fans
Built-in fan hub
PERFORMANCE BASED Large mesh panels draw in more airflow to make sure the system is cooled and performing at its peak.
SETUP MADE SIMPLE Getting started is easy. Access from each side is effortless with magnetic side panels and a one-touch button release for the top.
VIVID ILLUMINATION Four A-RGB fans are included, which can be controlled by the case button or via motherboard software
Technical Spec
MotherboardsMini-ITX / Micro-ATX / ATX
Case TypeATX Case
MaterialsABS+SPCC+Tempered Glass
Product Dimensions473mm -226mm -519mm(L -W -H)
Carton Dimensions565mm -285mm -535mm(L -W -H)
Net Weight8.4Kg
Gross Weight9.75Kg
5.25' Drive Bays0
3.5' Drive Bays2
External 3.5'' Drive Bays0
2.5' Drive Bays2
I/O PortsAudio -1 USB3.0 Type-A -2
Expansion Slots7 Slots
Power Supply TypeATX PS2
Large mesh front panel
Magnetic side panels, one with tempered glass
4 A-RGB fans included
Support 120/240/280/360mm AIO radiator
Support up to six 120mm fans
Built-in fan hub
PERFORMANCE BASED Large mesh panels draw in more airflow to make sure the system is cooled and performing at its peak.
SETUP MADE SIMPLE Getting started is easy. Access from each side is effortless with magnetic side panels and a one-touch button release for the top.
VIVID ILLUMINATION Four A-RGB fans are included, which can be controlled by the case button or via motherboard software
Technical Spec
MotherboardsMini-ITX / Micro-ATX / ATX
Case TypeATX Case
MaterialsABS+SPCC+Tempered Glass
Product Dimensions473mm -226mm -519mm(L -W -H)
Carton Dimensions565mm -285mm -535mm(L -W -H)
Net Weight8.4Kg
Gross Weight9.75Kg
5.25' Drive Bays0
3.5' Drive Bays2
External 3.5'' Drive Bays0
2.5' Drive Bays2
I/O PortsAudio -1 USB3.0 Type-A -2
Expansion Slots7 Slots
Power Supply TypeATX PS2
| Design | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | ABS, SPCC, Tempered glass |
| Form factor The shape or design of the product. | Midi Tower |
| Type Characteristics of the device. | PC |
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| Supported motherboard form factors Design of the supported motherboards. | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks. | 2 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 7 |
| Side window A side window is a transparent side (or part of side) in a housing which enables you to see the internal space of the device. |
 |
| Suitable for Who can use the product, or what the product can be used for. | Gaming |
| Tempered glass panel(s) |
|
| Cable management Description of improved cable management |
|
| Reset button |
|
| On/off button |
|
| Maximum CPU cooler height | 16.5 cm |
| Maximum graphics card length | 33 cm |
| Maximum PSU length | 16 cm |
| Power supply | |
| Power supply included There is a power supply with this product. |
 |
| Supported power supply form factors | ATX,PS2 |
| Ports & interfaces | |
| Audio input The type of audio input that the device requires, and the connection needed. |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120 mm |
| Liquid cooling capability |
|
| Front radiator fan sizes supported | 120,140,240,280,360 mm |
| Rear radiator fan sizes supported | 120 mm |
| Top radiator fan sizes supported | 120,240 mm |
| Storage | |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 2.5,3.5" |
| SSD form factor The size of the solid-state drive, given in inches | 2.5" |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 226 mm |
| Depth The distance from the front to the back of something. | 473 mm |
| Height The measurement of the product from head to foot or from base to top. | 519 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 8.4 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 285 mm |
| Package depth The distance from the front to the back of the packaging. | 565 mm |
| Package height The distance from the top to the bottom of the packaging. | 535 mm |
| Package weight Weight of the packaged product. | 9.75 kg |
| SKU | 445643 |
| MPN | R-CL500-BKNMA4N-A-1 |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | ATX |
| Case Colour | Black |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.deepcool.com/ |
