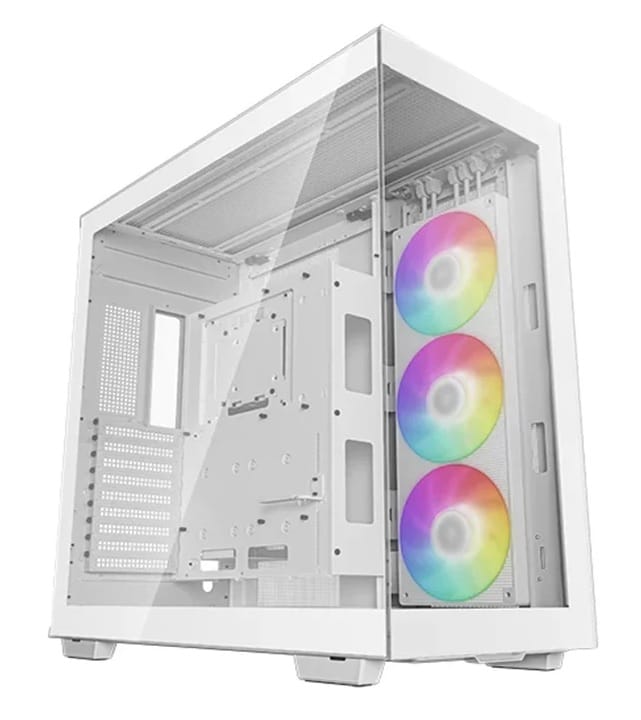

The CH780 is a majestic premium ATX+ case that places an emphasis on displaying the beauty of the high-end hardware inside. With its highly sought-after panoramic glass and dual chamber layout, the CH780 provides both premium tempered glass panels and the undeniable aesthetics of a dual chamber setup. Air flow and cooling is not ignored with the ability to mount up to three 420mm radiators and 9 120/140mm fans (or add four 200mm fans to your configuration). The options are plentiful.
CH780 - ENJOY THE VIEW
PANORAMIC GLASS-DUAL CHAMBER LAYOUT
With its highly sought-after panoramic glass and dual chamber layout, the CH780 provides both premium tempered glass panels and the undeniable aesthetics of a dual chamber setup. The lack of an A pillar removes the main obstruction to a clear and uninterrupted view of the main chamber, while the second chamber houses the less appealing cable management, drives, and power supply
MAXIMISED COMPATIBILITY
The ATX+ form factor of the CH780 case guarantees compatibility with a large range of components. This panoramic DeepCool case supports E-ATX motherboards while also having compatibility for GPUs up to 480mm in length. The dual chamber layout limits GPU mounting to the vertical position, but a PCI-e riser cable and vertical mount are included.
EXTENSIVE COOLING CAPABILITY
Fan options are plentiful, with the ability to mount nine 120mm or 140mm fans or go to the extreme and add up to four 200mm fans into the conversation. The highly modular fan rails make these configurations a reality.
The CH780 can also support up to three 420mm radiators simultaneously. 420mm radiators can be mounted to the top, bottom, and side of the motherboard tray. The CPU cooler height is limited to 132mm due to the internal configuration.
A TRINITY OF FANS!
A set of highly convenient trinity fans come mounted inside the CH780: three beautifully bright 140mm ARGB fans are united into a single 420mm unit. The trinity of fans only require the wiring of a single set of PWM and ARGB cables, greatly reducing the amount of cable management.
QUALITY OF LIFE UPGRADES
The tempered glass side panel makes upgrading components a breeze, while the secondary option to lock the panel in place with screws provides an extra bit of security. A swing-out GPU support arm is built into the case, and a generous 26mm of cable management makes everything a little less complicated. A magnetic top mesh filter helps keep the dust out and can be cleaned with ease.
PLENTY OF I/O PORTS
With four USB 3.0 ports, a Type-C port, and a hybrid audio port, there is no shortage of devices that can be accessed from the top front I/O panel.
| Design | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | ABS, SPCC, Tempered glass |
| Form factor The shape or design of the product. | Tower |
| Type Characteristics of the device. | PC |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Supported motherboard form factors Design of the supported motherboards. | ATX, micro ATX, Mini-ATX, EATX |
| Number of 3.5" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks. | 2 |
| Number of 2.5" bays | 3 |
| Number of internal 3.5" bays | 2 |
| Number of expansion slots | 3 |
| Side window A side window is a transparent side (or part of side) in a housing which enables you to see the internal space of the device. |
|
| Suitable for Who can use the product, or what the product can be used for. | Gaming |
| Illumination The device has illumination. |
|
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Multi |
| Illumination location | Case fans |
| Tempered glass panel(s) |
|
| Anti-dust filter |
|
| Cable management Description of improved cable management |
|
| On/off button |
|
| LED indicators |
|
| Maximum CPU cooler height | 13.2 cm |
| Maximum graphics card length | 48 cm |
| Maximum PSU length | 18 cm |
| Power supply | |
| Power supply included There is a power supply with this product. |
|
| Power supply location Where the power supply is positioned. | Bottom |
| Supported power supply form factors | ATX |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| Combo headphone/mic port |
|
| Cooling | |
| Number of side fans supported (max) | 3 |
| Side fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 140,120,180,200 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans diameters supported | 140,180,120,200 mm |
| Side radiator sizes supported | 120,240,360,140,280,420 mm |
| Bottom radiator sizes supported | 120,240,360,140,280,420 mm |
| Top radiator sizes supported | 120,240,360,140,280,420 mm |
| Storage | |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 2.5,3.5" |
| SSD form factor The size of the solid-state drive, given in inches | 2.5" |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 250 mm |
| Depth The distance from the front to the back of something. | 528 mm |
| Height The measurement of the product from head to foot or from base to top. | 551 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 13.7 kg |
| SKU | 759644 |
| MPN | R-CH780-WHADE41-G-1 |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | ATX |
| Case Colour | White |
| Stock Availability | Available for Shipping, In Stock at Castle Hill |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.deepcool.com/ |
