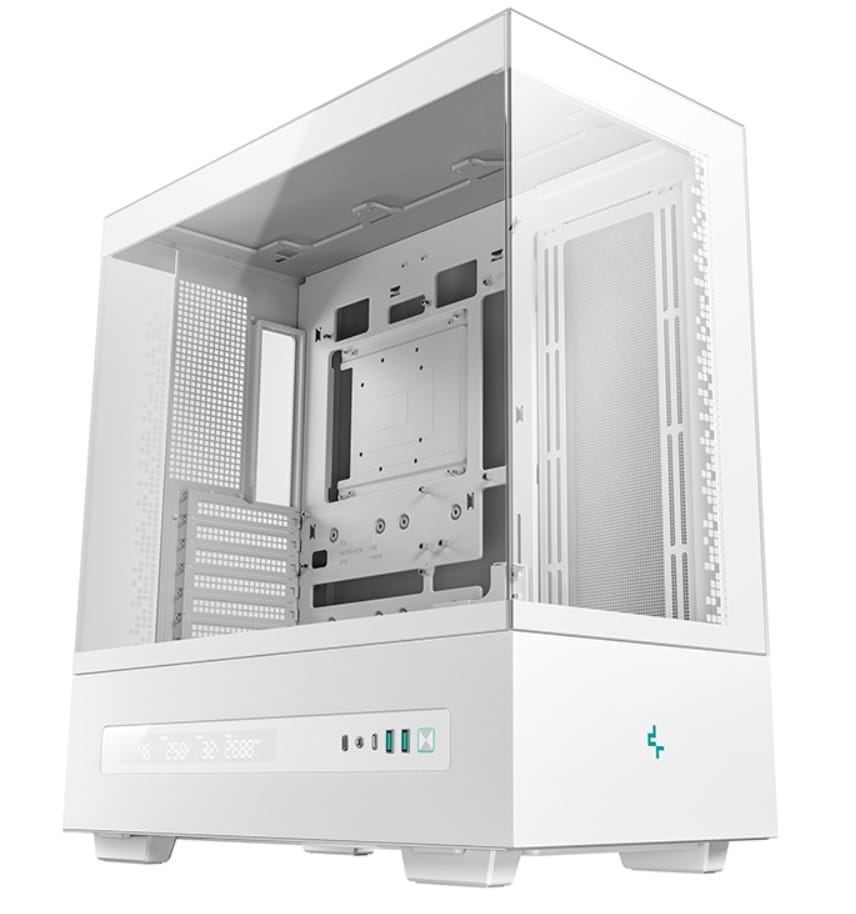

CH690 DIGITAL WHThe CH690 DIGITAL WH is designed with beauty and adaptability in mind, featuring a semi-glass panel that offers an expansive view of installed components. For those seeking enhanced performance, the rear of the case supports DIY modifications, allowing users to replace the semi-glass panel with a mesh panel and fan bracket to boost horizontal airflow. Additionally, the integrated light strip slot enables the addition of light strips to create an immersive gaming atmosphere, blending aesthetics with functionality for a truly personalized setup.
| Design | |
| Form factor The shape or design of the product. | Tower |
| Type Characteristics of the device. | PC |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Supported motherboard form factors Design of the supported motherboards. | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks. | 1 |
| Number of 2.5" bays | 3 |
| Number of expansion slots | 8 |
| Side window A side window is a transparent side (or part of side) in a housing which enables you to see the internal space of the device. |
 |
| Reset button |
|
| On/off button |
|
| Maximum CPU cooler height | 18.2 cm |
| Maximum graphics card length | 45 cm |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| Combo headphone/mic port |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Display type Type of display (screen) e.g. LCD. | LCD |
| Cooling | |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,130 mm |
| Number of side fans supported (max) | 3 |
| Side fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120 mm |
| Side radiator sizes supported | 120,140,240,280 mm |
| Bottom radiator sizes supported | 120,240,360 mm |
| Top radiator sizes supported | 120,140,240,280,360,420 mm |
| Storage | |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 3.5" |
| SSD form factor The size of the solid-state drive, given in inches | 2.5" |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 240 mm |
| Depth The distance from the front to the back of something. | 481 mm |
| Height The measurement of the product from head to foot or from base to top. | 516 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 9.8 kg |
| SKU | 812111 |
| MPN | R-CH690-WHNNA0D-G-1 |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.deepcool.com/ |
