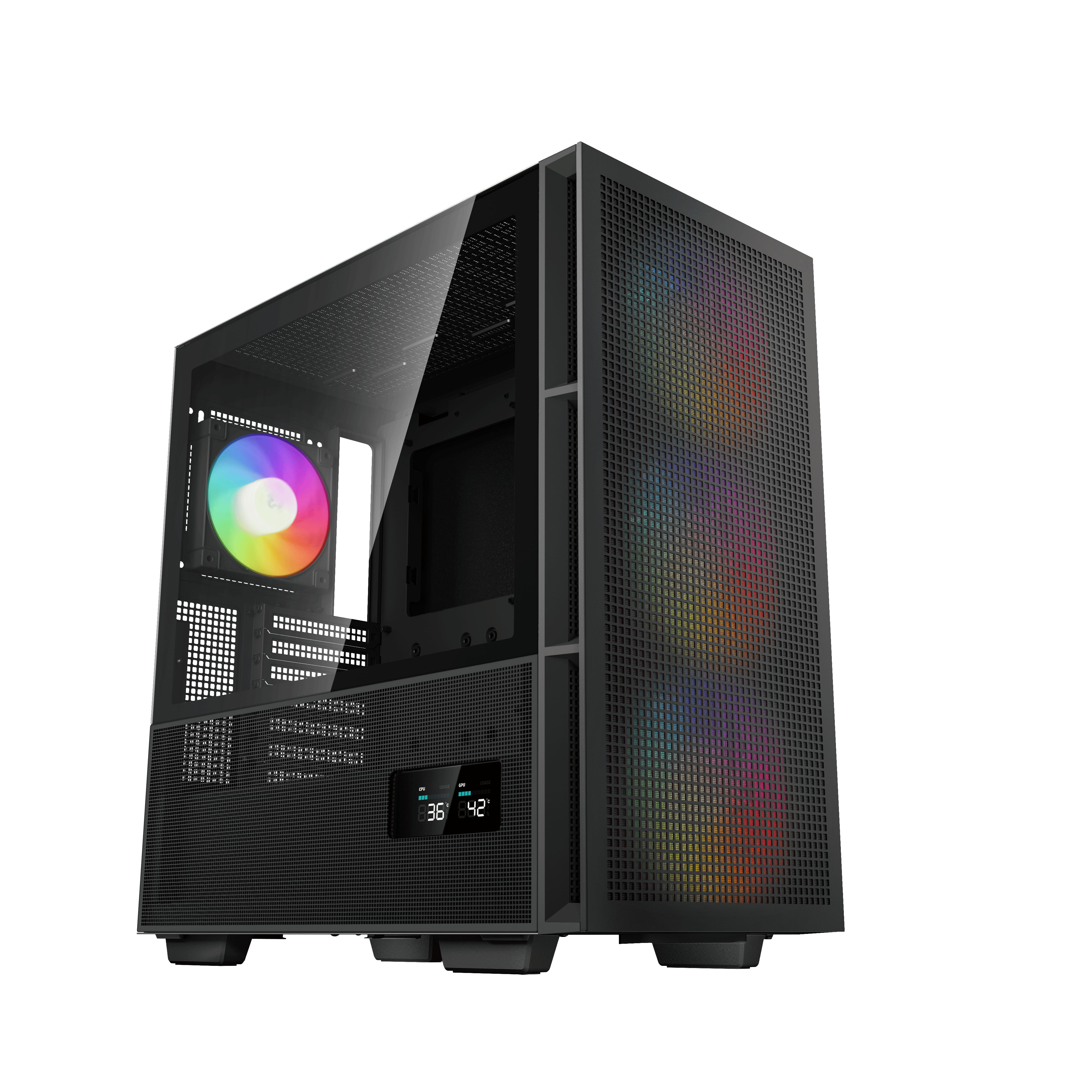

DeepCool CH560 DIGITAL, Midi Tower, PC, Black, ATX, EATX, micro ATX, Mini ITX, ABS, Steel, Tempered glass, Multi
CH560 DIGITAL
The next generation of airflow cases from DeepCool has arrived, and they are indeed glorious. The CH560 DIGITAL is a newly designed mid tower case with a concentrated focus on increased airflow throughout the entire chassis. Three bright PWM enabled 140mm ARGB fans are mounted in front of the main compartment, a hybrid side panel, and a dual status digital screen sets the CH560 DIGITAL apart from the competition.
CH560 DIGITAL
HIGH AIRFLOW CASES REIMAGINED
A BREATH OF FRESH AIR
The CH560 DIGITAL provides exceptional airflow from all sides of the case, from the high airflow front to the hybrid tempered glass side panel, cool air is always available for the modern power hungry components.
HYBRID AIRFLOW GLASS SIDE PANEL
A unique tempered glass and mesh hybrid side panel provides a crystal clear view into the heart of your system while also supplying modern GPUs with additional ventilation: a functional yet elegant design.
REAL TIME DUAL STATUS DIGITAL DISPLAY
Monitor vital CPU and GPU information from the cockpit of your gaming station with the integrated double status digital screen. Choose between CPU and GPU temperatures, utilization, or both (switches between temperature and utilization in 5 second intervals). A
The next generation of airflow cases from DeepCool has arrived, and they are indeed glorious. The CH560 DIGITAL is a newly designed mid tower case with a concentrated focus on increased airflow throughout the entire chassis. Three bright PWM enabled 140mm ARGB fans are mounted in front of the main compartment, a hybrid side panel, and a dual status digital screen sets the CH560 DIGITAL apart from the competition.
CH560 DIGITAL
HIGH AIRFLOW CASES REIMAGINED
A BREATH OF FRESH AIR
The CH560 DIGITAL provides exceptional airflow from all sides of the case, from the high airflow front to the hybrid tempered glass side panel, cool air is always available for the modern power hungry components.
HYBRID AIRFLOW GLASS SIDE PANEL
A unique tempered glass and mesh hybrid side panel provides a crystal clear view into the heart of your system while also supplying modern GPUs with additional ventilation: a functional yet elegant design.
REAL TIME DUAL STATUS DIGITAL DISPLAY
Monitor vital CPU and GPU information from the cockpit of your gaming station with the integrated double status digital screen. Choose between CPU and GPU temperatures, utilization, or both (switches between temperature and utilization in 5 second intervals). A
| Design | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | ABS, Steel, Tempered glass |
| Form factor The shape or design of the product. | Midi Tower |
| Type Characteristics of the device. | PC |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Supported motherboard form factors Design of the supported motherboards. | ATX, EATX, micro ATX, Mini-ITX |
| Number of 3.5" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks. | 2 |
| Number of 2.5" bays | 3 |
| Number of expansion slots | 7 |
| Side window A side window is a transparent side (or part of side) in a housing which enables you to see the internal space of the device. |
 |
| Illumination The device has illumination. |
|
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Multi |
| Illumination location | Case fans |
| Tempered glass panel(s) |
|
| Anti-dust filter |
|
| Cable management Description of improved cable management |
|
| On/off button |
|
| LED indicators |
|
| Maximum CPU cooler height | 17.5 cm |
| Maximum graphics card length | 38 cm |
| Maximum PSU length | 17 cm |
| Power supply | |
| Power supply included There is a power supply with this product. |
 |
| Power supply location Where the power supply is positioned. | Bottom |
| Supported power supply form factors | ATX, PS2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| Combo headphone/mic port |
|
| Cooling | |
| Front fans installed | 3x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator sizes supported | 120,140 mm |
| Top radiator sizes supported | 120,140,240,280,360 mm |
| Storage | |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 2.5,3.5" |
| HDD/SSD combo cage |
|
| Packaging content | |
| Manual |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 230 mm |
| Depth The distance from the front to the back of something. | 458 mm |
| Height The measurement of the product from head to foot or from base to top. | 471 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 7.5 kg |
| SKU | 737702 |
| MPN | R-CH560-BKAPE4D-G-1 |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | E-ATX |
| Case Colour | Black |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.deepcool.com/ |
