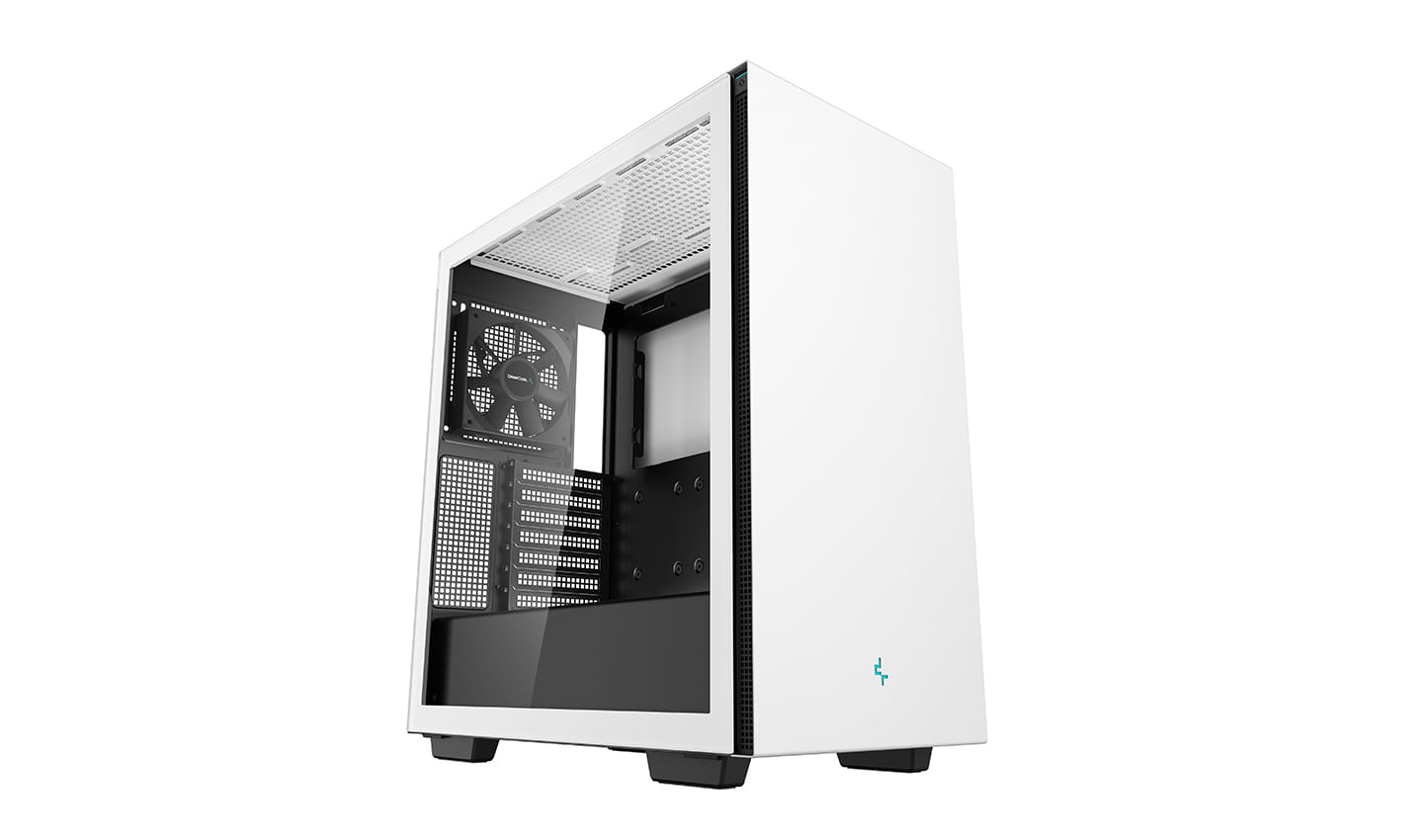

DeepCool CH510, Midi Tower, PC, White, ATX, EATX, micro ATX, Mini-ATX, ABS, SPCC, Tempered glass, 17.5 cm
The DeepCool CH510 is a sleek and minimalistic mid-tower ATX case with great component compatibility and extensive cooling capacity support for a truly flexible build experience.
A COMPLETE BUILD EXPERIENCE
The CH510 is an ideal case for any level builder needing a spacious interior and robust features designed for the modern PC gamer.
EXPAND YOUR COOLING
Install up to a 360mm radiator either on top or in front for water cooling setups and support up to 9x 120mm or 5x 140mm cooling fans for proper airflow ventilation that also reaches your GPU.
WIDE AND SPACIOUS INTERIOR
Maximize potential with flexible configurations that meet the needs of any system setup. With space for large GPUs up to 380mm and CPU coolers up to 175mm in height, the CH510 provides ample space without being too bulky.
MODULAR FRONT I/O
A standard 2x USB 3.0 sit conveniently at the top for quick-access and features a modular design.
A COMPLETE BUILD EXPERIENCE
The CH510 is an ideal case for any level builder needing a spacious interior and robust features designed for the modern PC gamer.
EXPAND YOUR COOLING
Install up to a 360mm radiator either on top or in front for water cooling setups and support up to 9x 120mm or 5x 140mm cooling fans for proper airflow ventilation that also reaches your GPU.
WIDE AND SPACIOUS INTERIOR
Maximize potential with flexible configurations that meet the needs of any system setup. With space for large GPUs up to 380mm and CPU coolers up to 175mm in height, the CH510 provides ample space without being too bulky.
MODULAR FRONT I/O
A standard 2x USB 3.0 sit conveniently at the top for quick-access and features a modular design.
| Design | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | ABS, SPCC, Tempered glass |
| Form factor The shape or design of the product. | Midi Tower |
| Type Characteristics of the device. | PC |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Supported motherboard form factors Design of the supported motherboards. | ATX, EATX, micro ATX, Mini-ATX |
| Number of 3.5" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks. | 2 |
| Number of 2.5" bays | 3 |
| Number of expansion slots | 7 |
| Side window A side window is a transparent side (or part of side) in a housing which enables you to see the internal space of the device. |
 |
| Tempered glass panel(s) |
|
| Anti-dust filter |
|
| Reset button |
|
| On/off button |
|
| Maximum CPU cooler height | 17.5 cm |
| Maximum graphics card length | 38 cm |
| Maximum PSU length | 17 cm |
| Power supply | |
| Power supply included There is a power supply with this product. |
 |
| Ports & interfaces | |
| Audio input The type of audio input that the device requires, and the connection needed. |
|
| Audio output The type of audio output that the device produces, and the connector(s). |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Liquid cooling capability |
|
| Front radiator fan sizes supported | 120,140,240,280,360 mm |
| Rear radiator fan sizes supported | 120,140 mm |
| Top radiator fan sizes supported | 120,140,240,280,360 mm |
| Storage | |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 2.5,3.5" |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 230 mm |
| Depth The distance from the front to the back of something. | 435 mm |
| Height The measurement of the product from head to foot or from base to top. | 471 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 7.2 kg |
| SKU | 674464 |
| MPN | R-CH510-WHNNE1-G-1 |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | ATX |
| Case Colour | White |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.deepcool.com/ |
