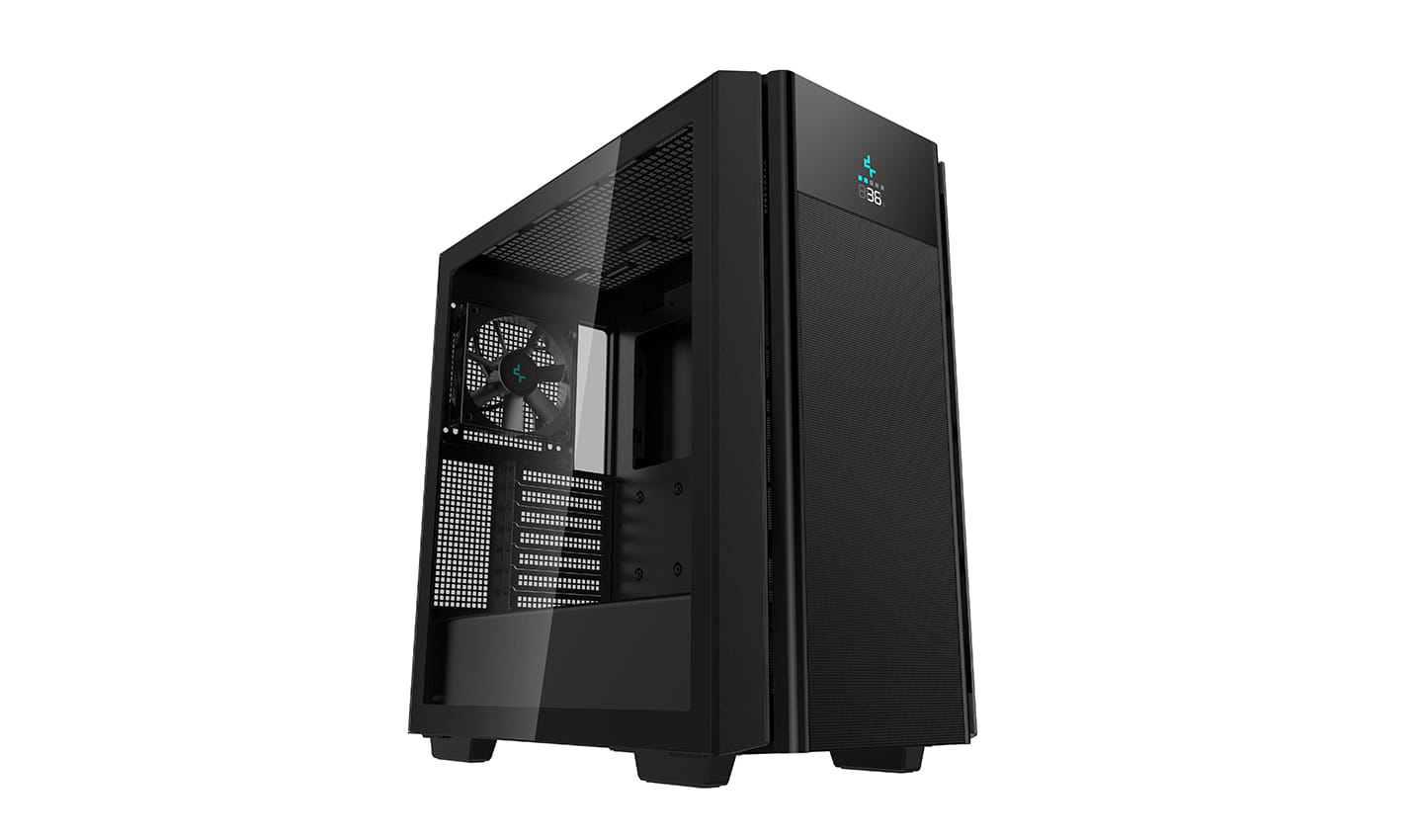

DeepCool CH510 MESH DIGITAL, Midi Tower, PC, Black, ATX, EATX, micro ATX, Mini ATX, Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass, Power
The DeepCool CH510 MESH DIGITAL is a high airflow mid tower ATX case with great flexibility and wide component compatibility for any system build. Featuring a display screen that is programmable to monitor internal system temperatures for critical information up front.
HIGH AIRFLOW PANEL
The CH510 MESH DIGITAL is an ideal case for any level builder needing a spacious interior and robust features designed for the modern PC gamer. The large metal mesh front panel allows vast amounts of airflow for optimal system cooling.
BUILT IN DISPLAY
Monitor system information stats for critical CPU or GPU temperatures with a digital display built into the front panel for info access up close.
MORE CAPACITY, MORE POWER
Big power needs big cooling and the CH510 MESH DIGITAL provides ample amount of mounting locations to install plentiful cooling. Install large radiators up to 360mm either in front or on top, or fit up to 9x 120mm or 5x 140mm cooling fans for extreme airflow throughout.
MAGNETIC TEMPERED GLASS WINDOW
The clean tempered glass side panel offers an immaculate view inside the chassis while being fastened with a magnetic mount for simplicity and ease. Additionally the glass window can be properly locked and secured with a dedicated screw mount for extra added safety.
STREAMLINED FRONT I/O
Get connectivity for your modern devices needing a USB Type C port as well as including a USB 3.0 port, and a combo audio jack for gaming headsets.
HIGH AIRFLOW PANEL
The CH510 MESH DIGITAL is an ideal case for any level builder needing a spacious interior and robust features designed for the modern PC gamer. The large metal mesh front panel allows vast amounts of airflow for optimal system cooling.
BUILT IN DISPLAY
Monitor system information stats for critical CPU or GPU temperatures with a digital display built into the front panel for info access up close.
MORE CAPACITY, MORE POWER
Big power needs big cooling and the CH510 MESH DIGITAL provides ample amount of mounting locations to install plentiful cooling. Install large radiators up to 360mm either in front or on top, or fit up to 9x 120mm or 5x 140mm cooling fans for extreme airflow throughout.
MAGNETIC TEMPERED GLASS WINDOW
The clean tempered glass side panel offers an immaculate view inside the chassis while being fastened with a magnetic mount for simplicity and ease. Additionally the glass window can be properly locked and secured with a dedicated screw mount for extra added safety.
STREAMLINED FRONT I/O
Get connectivity for your modern devices needing a USB Type C port as well as including a USB 3.0 port, and a combo audio jack for gaming headsets.
| Design | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass |
| Form factor The shape or design of the product. | Midi Tower |
| Type Characteristics of the device. | PC |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Supported motherboard form factors Design of the supported motherboards. | ATX, EATX, micro ATX, Mini-ATX |
| Number of 3.5" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks. | 2 |
| Number of 2.5" bays | 3 |
| Number of expansion slots | 7 |
| Side window A side window is a transparent side (or part of side) in a housing which enables you to see the internal space of the device. |
 |
| Tempered glass panel(s) |
|
| Reset button |
|
| On/off button |
|
| LED indicators | Power |
| Maximum CPU cooler height | 17.5 cm |
| Maximum graphics card length | 38 cm |
| Maximum PSU length | 17 cm |
| Power supply | |
| Power supply included There is a power supply with this product. |
 |
| Supported power supply form factors | ATX, PS2 |
| Ports & interfaces | |
| Audio output The type of audio output that the device produces, and the connector(s). |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| Cooling | |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Front radiator fan sizes supported | 120,140,240,280,360 mm |
| Rear radiator fan sizes supported | 120,140 mm |
| Top radiator fan sizes supported | 120,140,240,280,360 mm |
| Storage | |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 2.5,3.5" |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 230 mm |
| Depth The distance from the front to the back of something. | 455 mm |
| Height The measurement of the product from head to foot or from base to top. | 470 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 7.5 kg |
| SKU | 708047 |
| MPN | R-CH510-BKNSE1-G-1 |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Stock Availability | In Stock at Bankstown |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.deepcool.com/ |
