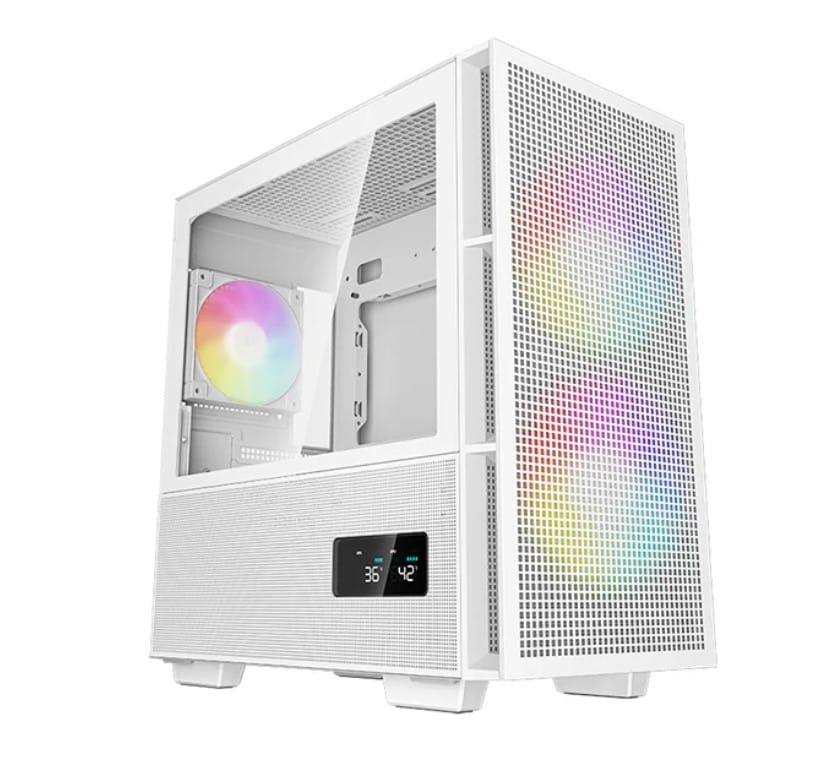

DeepCool CH360 Digital White Micro ATX Case, Tempered Glass Window,1x USB 3.0, 1x USB-C, HD Audio, 2x 140mm ARGB and 1x 120mm ARGB Pre-installed
Case Size M-ATX
Materials ABS+SPCC+Tempered Glass
Thickness Steel panel thickness: 0.6mm
Tempered Glass side panel thickness: 4mm
Motherboard Support Mini-ITX / Micro-ATX
Front I/O Ports Type-C -1, USB3.0 -1, Audio -1
3.5in Drive Bays 2
2.5in Drive Bays 2+1
Expansion Slots 4 Slots
Pre-Installed Fans Front: 2x 140mm ARGB
Rear: 1x 120mm ARGB
Fan Support Front: 3 -120 / 2 -140mm
Top: 2 -120 / 2 -140mm
Rear: 1 -120mm
PSU Shroud: 2x120mm
Radiator Support Front: 120 / 140 / 240 / 280 / 360 mm
Rear: 120 / 140 / 240 mm
Rear: 120 mm
CPU Cooler Height Limit 165mm
GPU Length Limit 320mm
Power Supply Type ATX PS2 (Max Length: 160mm)
Cable Management 20mm
Product Color White
Product Dimension (L x W x H) 428 -215 -431mm(L -W -H)
Product Weight 6 KG
Warranty 1 years
Materials ABS+SPCC+Tempered Glass
Thickness Steel panel thickness: 0.6mm
Tempered Glass side panel thickness: 4mm
Motherboard Support Mini-ITX / Micro-ATX
Front I/O Ports Type-C -1, USB3.0 -1, Audio -1
3.5in Drive Bays 2
2.5in Drive Bays 2+1
Expansion Slots 4 Slots
Pre-Installed Fans Front: 2x 140mm ARGB
Rear: 1x 120mm ARGB
Fan Support Front: 3 -120 / 2 -140mm
Top: 2 -120 / 2 -140mm
Rear: 1 -120mm
PSU Shroud: 2x120mm
Radiator Support Front: 120 / 140 / 240 / 280 / 360 mm
Rear: 120 / 140 / 240 mm
Rear: 120 mm
CPU Cooler Height Limit 165mm
GPU Length Limit 320mm
Power Supply Type ATX PS2 (Max Length: 160mm)
Cable Management 20mm
Product Color White
Product Dimension (L x W x H) 428 -215 -431mm(L -W -H)
Product Weight 6 KG
Warranty 1 years
| Design | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | ABS, SPCC, Tempered glass |
| Form factor The shape or design of the product. | Micro Tower |
| Type Characteristics of the device. | PC |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Supported motherboard form factors Design of the supported motherboards. | micro ATX, Mini-ITX |
| Number of 3.5" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks. | 2 |
| Number of 2.5" bays | 3 |
| Number of expansion slots | 4 |
| Side window A side window is a transparent side (or part of side) in a housing which enables you to see the internal space of the device. |
 |
| Suitable for Who can use the product, or what the product can be used for. | Gaming |
| Illumination The device has illumination. |
|
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Multi |
| Illumination location | Case fans |
| Tempered glass panel(s) |
|
| Maximum CPU cooler height | 16.5 cm |
| Maximum graphics card length | 32 cm |
| Maximum PSU length | 16 cm |
| Power supply | |
| Power supply included There is a power supply with this product. |
 |
| Power supply location Where the power supply is positioned. | Bottom |
| Supported power supply form factors | ATX |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB Type-C ports quantity | 1 |
| Combo headphone/mic port |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Cooling | |
| Front fans installed | 2x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120,140,240 mm |
| Storage | |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 2.5,3.5" |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 215 mm |
| Depth The distance from the front to the back of something. | 428 mm |
| Height The measurement of the product from head to foot or from base to top. | 431 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 6 kg |
| SKU | 766799 |
| MPN | R-CH360-WHAPE3D-G-1 |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | Micro-ATX |
| Case Colour | White |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.deepcool.com/ |
