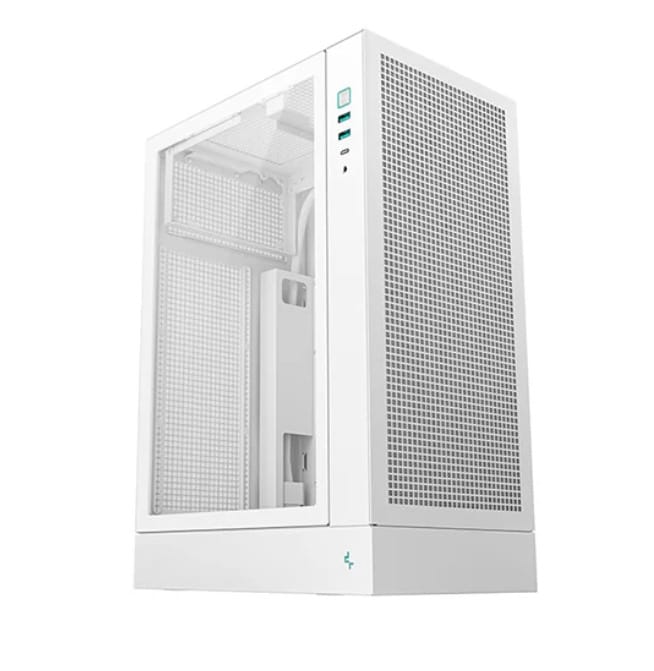

DeepCool CH170 PLUS WH Vertical Micro-ATX Compact Case, USB3.0-2, Gen2 Type-C x1, Audio/Mic-1
CH170 PLUS WHThe CH170 PLUS WH is a vertical mid-tower case with all the high-airflow features, offering flexibility for coolers and PSU options in a compact design.
| Design | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Acrylonitrile butadiene styrene (ABS), Tempered glass, SPCC |
| Form factor The shape or design of the product. | Midi Tower |
| Type Characteristics of the device. | PC |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Supported motherboard form factors Design of the supported motherboards. | micro ATX, Mini-ITX |
| Number of 3.5" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks. | 1 |
| Number of 2.5" bays | 1 |
| Number of expansion slots | 4 |
| Side window A side window is a transparent side (or part of side) in a housing which enables you to see the internal space of the device. |
 |
| Tempered glass panel(s) |
|
| Anti-dust filter |
|
| On/off button |
|
| Maximum CPU cooler height | 16.4 cm |
| Maximum graphics card length | 34.2 cm |
| Maximum PSU length | 14 cm |
| Power supply | |
| Power supply included There is a power supply with this product. |
 |
| Power supply location Where the power supply is positioned. | Top |
| Supported power supply form factors | ATX, PS2, SFX, SFX-L |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| Combo headphone/mic port |
|
| Cooling | |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120 mm |
| Liquid cooling capability |
|
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120 mm |
| Storage | |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 2.5,3.5" |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 195 mm |
| Depth The distance from the front to the back of something. | 290 mm |
| Height The measurement of the product from head to foot or from base to top. | 424.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 4.4 kg |
| SKU | 828791 |
| MPN | R-CH170-WHNGM0-G |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | Micro-ATX |
| Case Colour | White |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.deepcool.com/ |
