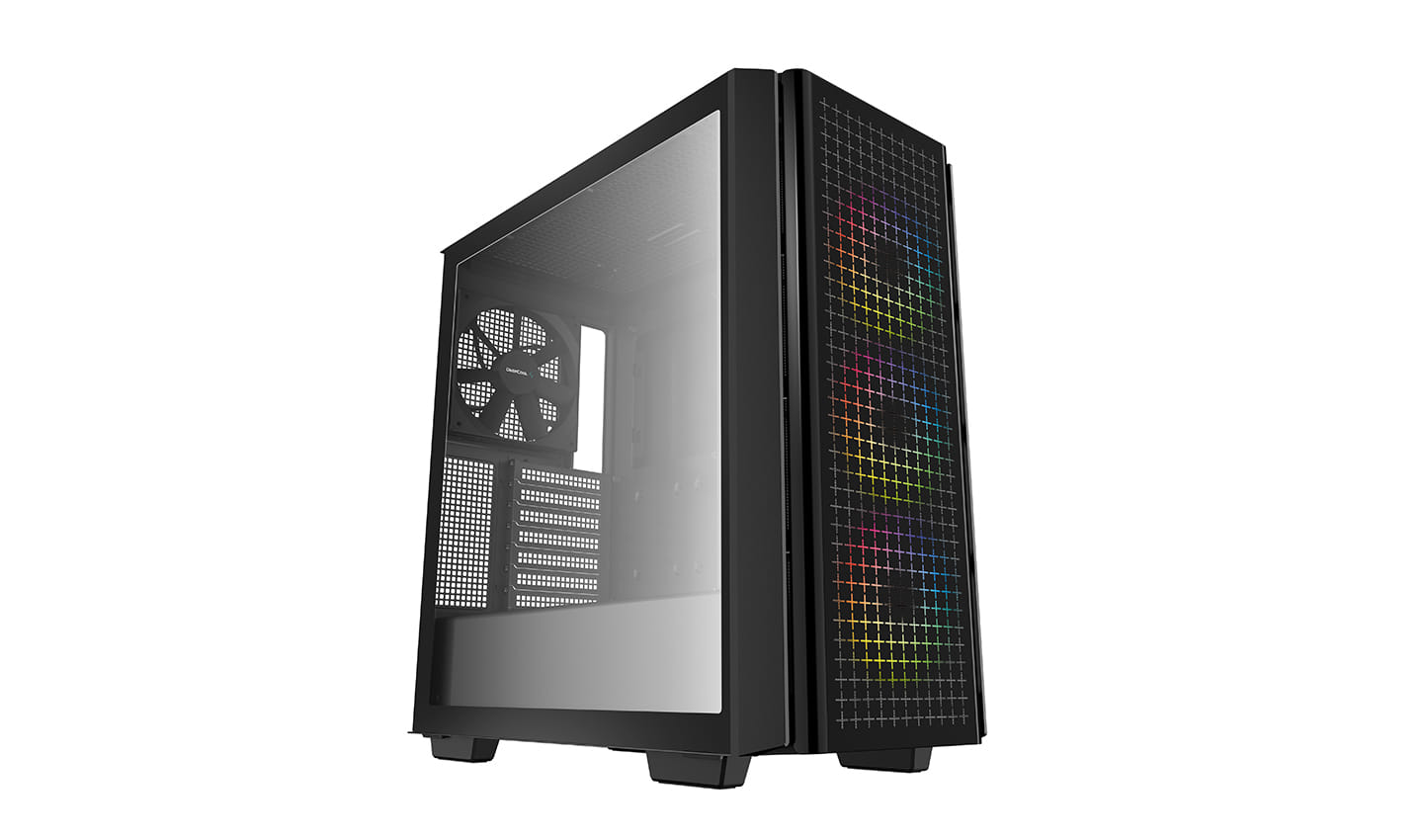

Deepcool CG540 ATX Mid-Tower Case, Tempered Glass, Supports Mini-ITX / Mico-ATX / ATX / E-ATX, 2x 3.5', 2x 2.5', 7 Slots, 2x USB 3.0, 1x Audio
Technical Spec
Product Dimensions 455 -230 -470mm(L -W -H)
Net Weight 7.5Kg
Materials ABS+SPCC+Tempered Glass
Motherboard Support Mini-ITX / Mico-ATX / ATX / E-ATX
Front I/O Ports USB3.0 -2
Product Dimensions 455 -230 -470mm(L -W -H)
Net Weight 7.5Kg
Materials ABS+SPCC+Tempered Glass
Motherboard Support Mini-ITX / Mico-ATX / ATX / E-ATX
Front I/O Ports USB3.0 -2
| Design | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | ABS, SPCC, Tempered glass |
| Form factor The shape or design of the product. | Midi Tower |
| Type Characteristics of the device. | PC |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Supported motherboard form factors Design of the supported motherboards. | ATX, EATX, micro ATX, Mini-ITX |
| Number of 3.5" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks. | 2 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 7 |
| Illumination The device has illumination. |
 |
| Illumination location | Case fans |
| Tempered glass panel(s) |
|
| Heat sink included |
 |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Anti-dust filter |
|
| Cable management Description of improved cable management |
|
| On/off button |
|
| RGB control button |
|
| Maximum CPU cooler height | 17.5 cm |
| Maximum graphics card length | 38 cm |
| Maximum PSU length | 16 cm |
| Power supply | |
| Power supply included There is a power supply with this product. |
|
| Supported power supply form factors | ATX,PS2 |
| Ports & interfaces | |
| Audio input The type of audio input that the device requires, and the connection needed. |
|
| Audio output The type of audio output that the device produces, and the connector(s). |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Liquid cooling capability |
|
| Front radiator fan sizes supported | 120,140,240,280,360 mm |
| Rear radiator fan sizes supported | 120,140 mm |
| Top radiator fan sizes supported | 120,140,240,280 mm |
| Storage | |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 2.5,3.5" |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 230 mm |
| Depth The distance from the front to the back of something. | 455 mm |
| Height The measurement of the product from head to foot or from base to top. | 470 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 7.5 kg |
| SKU | 541211 |
| MPN | R-CG540-BKAGE4-G-1 |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | ATX |
| Case Colour | Black |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.deepcool.com/ |
