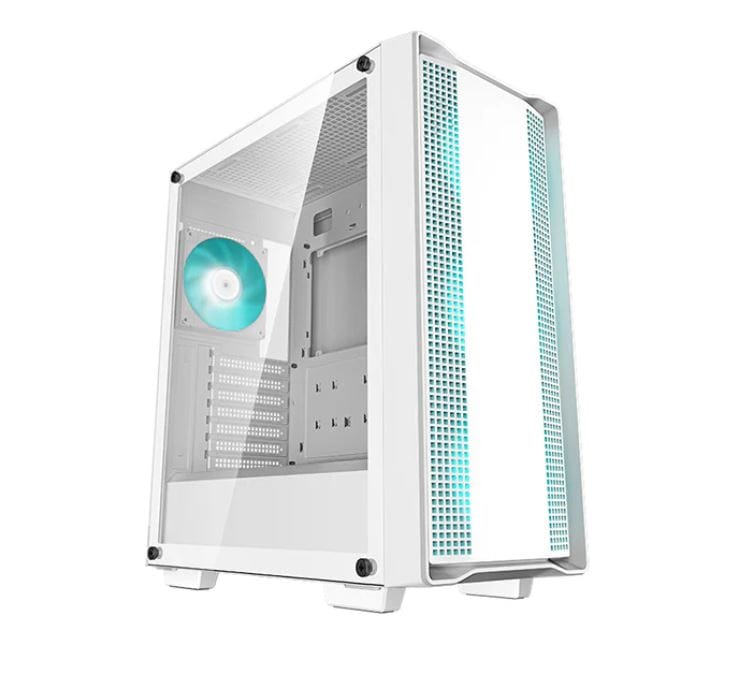

DeepCool CC560 White V2 Mid-Tower Computer Case, Tempered Glass Window, 4x Pre-Installed LED Fans, Top Mesh Panel, Support Up To 6x120mm or 4x140mm
CC560 WH V2
The DeepCool CC560 WH V2 mid-tower case offers great value with spacious component compatibility, a full-sized tempered glass window, and a total of four pre-installed LED fans that get any build started right. The V2 models build upon the success of the previous generation and raise the bar.
Technical Spec
Product Dimensions 432 -215 -483mm(L -W -H)
Net Weight 7.2Kg
Materials ABS+SPCC+Tempered Glass
Motherboard Support Mini-ITX / Micro-ATX / ATX
Front I/O Ports USB3.0 -1 / USB2.0 -1 / Audio -1
3.5 Drive Bays 2
2.5 Drive Bays 2+1
Expansion Slots 7 Slots
Pre-Installed Fans Front: 3 -120mm LED
Rear: 1 -120mm LED
Fan Support Front: 3 -120 / 3 -140mm
Top: 2 -120 / 2 -140mm
Rear: 1 -120mm
PSU Shrouded: 2 -120mm
Radiator Support Front: 120/140/240/280/360mm
Top: 120/140/240mm
Rear: 120mm
CPU Cooler Height Limit 165mm
GPU Length Limit 320mm
Power Supply Type ATX PS2 1/4 maximum length: 170mm 1/4
P/N R-CC560-WHGAA4-G-2
The DeepCool CC560 WH V2 mid-tower case offers great value with spacious component compatibility, a full-sized tempered glass window, and a total of four pre-installed LED fans that get any build started right. The V2 models build upon the success of the previous generation and raise the bar.
Technical Spec
Product Dimensions 432 -215 -483mm(L -W -H)
Net Weight 7.2Kg
Materials ABS+SPCC+Tempered Glass
Motherboard Support Mini-ITX / Micro-ATX / ATX
Front I/O Ports USB3.0 -1 / USB2.0 -1 / Audio -1
3.5 Drive Bays 2
2.5 Drive Bays 2+1
Expansion Slots 7 Slots
Pre-Installed Fans Front: 3 -120mm LED
Rear: 1 -120mm LED
Fan Support Front: 3 -120 / 3 -140mm
Top: 2 -120 / 2 -140mm
Rear: 1 -120mm
PSU Shrouded: 2 -120mm
Radiator Support Front: 120/140/240/280/360mm
Top: 120/140/240mm
Rear: 120mm
CPU Cooler Height Limit 165mm
GPU Length Limit 320mm
Power Supply Type ATX PS2 1/4 maximum length: 170mm 1/4
P/N R-CC560-WHGAA4-G-2
| Design | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | ABS, SPCC, Tempered glass |
| Form factor The shape or design of the product. | Midi Tower |
| Type Characteristics of the device. | PC |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Supported motherboard form factors Design of the supported motherboards. | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks. | 2 |
| Number of 2.5" bays | 3 |
| Number of internal 3.5" bays | 2 |
| Number of expansion slots | 7 |
| Side window A side window is a transparent side (or part of side) in a housing which enables you to see the internal space of the device. |
 |
| Suitable for Who can use the product, or what the product can be used for. | Gaming |
| Illumination The device has illumination. |
|
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Blue |
| Illumination location | Case fans |
| Tempered glass panel(s) |
|
| Anti-dust filter |
|
| Cable management Description of improved cable management |
|
| On/off button |
|
| RGB control button |
|
| LED indicators |
|
| Maximum CPU cooler height | 16.5 cm |
| Maximum graphics card length | 37 cm |
| Maximum PSU length | 17 cm |
| Power supply | |
| Power supply included There is a power supply with this product. |
 |
| Power supply location Where the power supply is positioned. | Bottom |
| Supported power supply form factors | ATX |
| Ports & interfaces | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Combo headphone/mic port |
|
| Cooling | |
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 2 |
| Bottom fans diameters supported | 120 mm |
| Front radiator sizes supported | 140,240,360,120,280 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120,240,140 mm |
| Storage | |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 2.5,3.5" |
| SSD form factor The size of the solid-state drive, given in inches | 2.5" |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 215 mm |
| Depth The distance from the front to the back of something. | 432 mm |
| Height The measurement of the product from head to foot or from base to top. | 483 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 7.2 kg |
| SKU | 764672 |
| MPN | R-CC560-WHGAA4-G-2 |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | ATX |
| Case Colour | White |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.deepcool.com/ |
