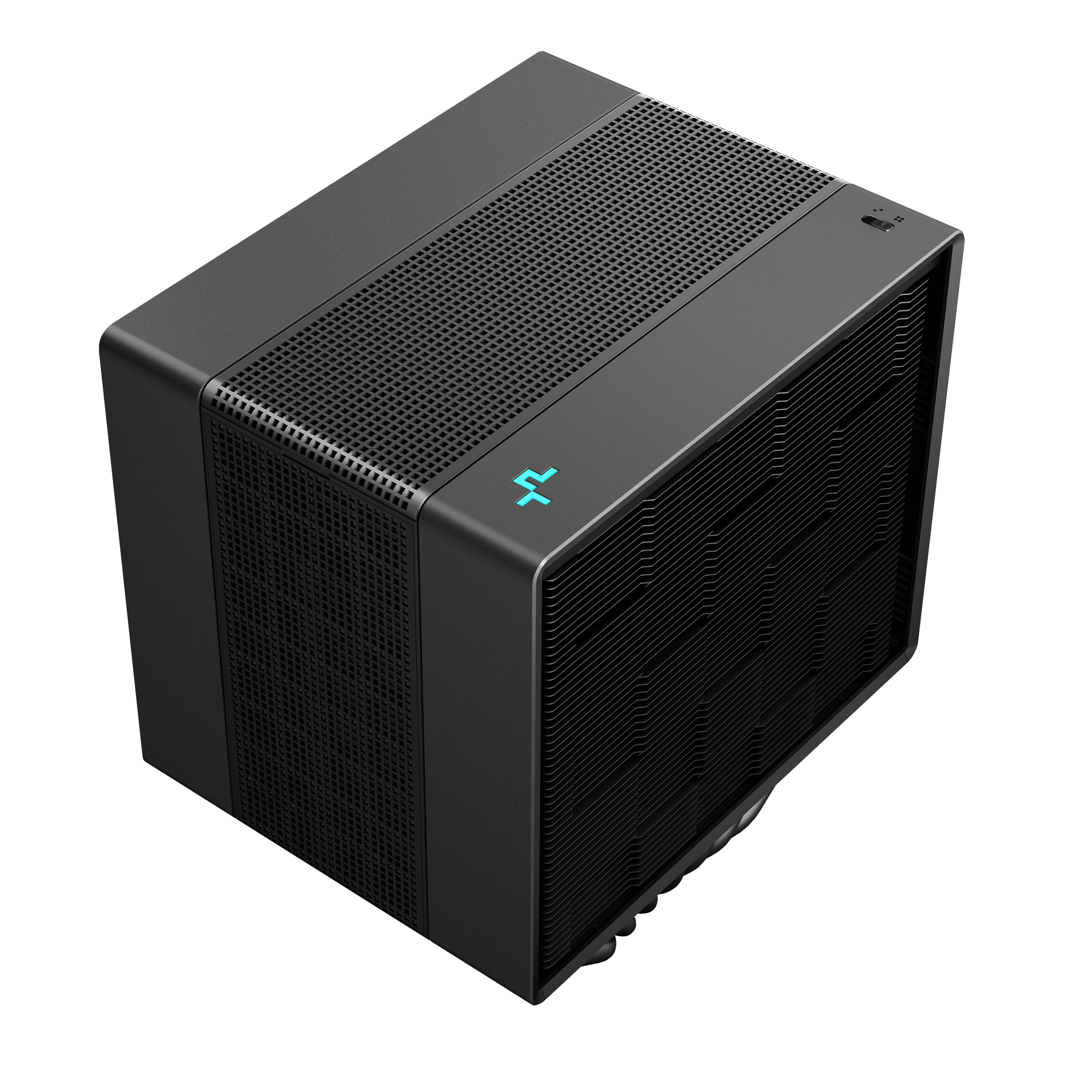

DeepCool ASSASSIN 4S, Air cooler, 14 cm, 61.25 cfm, Black
ASSASSIN 4S
The ASSASSIN 4S provides exceptional performance and is armed with seven 6mm heat pipes and a redesigned 140mm FDB fan. The 4S models eliminate the rear 120mm fan, providing a slimmer, more symmetrical cooler.
ASSASSIN 4S
SOPHISTICATED ELEGANCE
BEAUTY IN SIMPLICITY
The elegant design of the ASSASSIN 4S is not just visually pleasing; it also leads to optimal air flow and maximum compatibility.
QUIET OR PERFORMANCE MODE
With a simple slide of a switch, the ASSASSIN 4S can morph from a whisper-quiet cooler when low noise is of the utmost importance to the efficient cooling force DeepCool air coolers are known for.
LET IT SHINE!
The shell of ASSASSIN 4S is clean, sleek, and helps channel air through the fin towers, while the slimmer profile provides unobstructed clearance for high-profile RGB RAM.
BE COOL, BE CALM
A key factor in the ASSASSIN 4S s extremely silent operation is the use of three-phase, six-pole fan motors with low voltage and power consumption. DeepCool is so confident in our new design that the ASSASSIN 4S comes with 6 years of limited warranty coverage!
EXCEPTIONAL BY DESIGN
Featuring seven heat pipes that deliver improved heat transfer through two fin-array heat sink towers for high performance efficiency. The included DM9 thermal paste meets the rigorous standards used in industrial applications.
THE FLOW BELOW
Due to the center 140mm fan sitting deep into the heart of the ASSASSIN 4S, there is a lower flow of air that provides additional cooling to the toasty surrounding VRMs.
STREAMLINED INSTALLATION
Installing larger air coolers can be difficult and is a prime reason the hardware and installation was designed to be extremely user friendly. Even the magnetic top fan cover was crafted with ease of installation in mind.
The ASSASSIN 4S provides exceptional performance and is armed with seven 6mm heat pipes and a redesigned 140mm FDB fan. The 4S models eliminate the rear 120mm fan, providing a slimmer, more symmetrical cooler.
ASSASSIN 4S
SOPHISTICATED ELEGANCE
BEAUTY IN SIMPLICITY
The elegant design of the ASSASSIN 4S is not just visually pleasing; it also leads to optimal air flow and maximum compatibility.
QUIET OR PERFORMANCE MODE
With a simple slide of a switch, the ASSASSIN 4S can morph from a whisper-quiet cooler when low noise is of the utmost importance to the efficient cooling force DeepCool air coolers are known for.
LET IT SHINE!
The shell of ASSASSIN 4S is clean, sleek, and helps channel air through the fin towers, while the slimmer profile provides unobstructed clearance for high-profile RGB RAM.
BE COOL, BE CALM
A key factor in the ASSASSIN 4S s extremely silent operation is the use of three-phase, six-pole fan motors with low voltage and power consumption. DeepCool is so confident in our new design that the ASSASSIN 4S comes with 6 years of limited warranty coverage!
EXCEPTIONAL BY DESIGN
Featuring seven heat pipes that deliver improved heat transfer through two fin-array heat sink towers for high performance efficiency. The included DM9 thermal paste meets the rigorous standards used in industrial applications.
THE FLOW BELOW
Due to the center 140mm fan sitting deep into the heart of the ASSASSIN 4S, there is a lower flow of air that provides additional cooling to the toasty surrounding VRMs.
STREAMLINED INSTALLATION
Installing larger air coolers can be difficult and is a prime reason the hardware and installation was designed to be extremely user friendly. Even the magnetic top fan cover was crafted with ease of installation in mind.
| Performance | |
| Suitable location Locations in which the product can be used. | Processor |
| Type Characteristics of the device. | Air cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 14 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Maximum airflow | 61.25 cfm |
| Minimum air pressure | 2.46 mmH2O |
| Maximum air pressure | 3.76 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Fan noise level (min) | 22.6 dB |
| Fan noise level (max) | 29.3 dB |
| Quantity per pack | 1 pc(s) |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1800 RPM |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Number of heat pipes | 7 |
| Fan connector | 4-pin |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 3.6 W |
| Rated voltage | 12 V |
| Fan power consumption | 2.4 W |
| Fan voltage | 12 V |
| Fan current | 0.2 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 147 mm |
| Radiator width | 11 cm |
| Radiator depth | 14 cm |
| Radiator height | 16 cm |
| Depth The distance from the front to the back of something. | 116 mm |
| Height The measurement of the product from head to foot or from base to top. | 164 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.38 kg |
| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Heat pipes diameter | 6 mm |
| Packaging content | |
| Package type The type of product package e.g. box. | Box |
| Mounting kit |
|
| Screws included |
|
| CPU bracket(s) |
|
| Adapter frame included |
|
| SKU | 771749 |
| MPN | R-ASN4S-BKGPMN-G |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://www.deepcool.com/ |
| Stock Availability | Available for Shipping |
