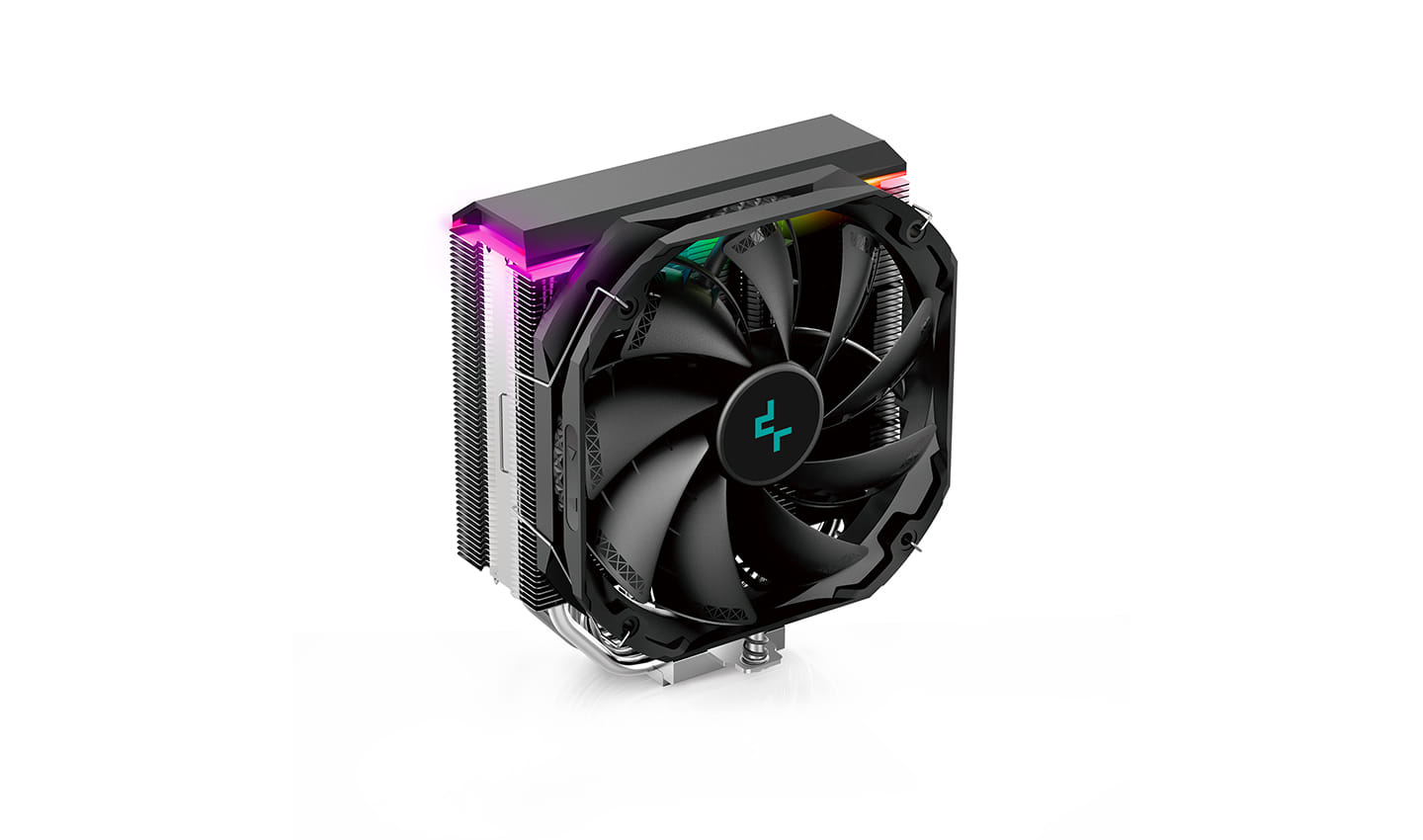

Deepcool AS500 CPU Cooler 5x6mm Heatpipes, Universal RAM Compatibility, TDP 220W, TF140S FDP Fan, ARGB LED Top Cover, Intel LGA2066/2011 AMD AM4 AM3
DeepCool AS500 single tower CPU cooler boasts a five heat pipe design with a TF140S PWM fan for great performance in a slim profile.
Single tower cooler with 5 heat pipes high fin density.
Slim profile for maximum RAM height compatibility.
High-performance TF140S PWM fan included.
A-RGB LED controller included.
ELEVATED COOLING PERFORMANCE
Optimize heat exchange through a solid copper base with optimal surface contact that runs five 6mm heat pipes in a single tower with high fin density
SIZED JUST RIGHT
Designed for maximum RAM height compatibility in a slim (48mm) profile.
CONTROL YOUR TEMPS
The high-performance TF140S PWM fan provides precise control between extreme cooling or low-noise operation with long-life durability.
Application For
Intel LGA2066/2011-v3/2011/1200/1151/1150/1155
AMD AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
Technical Spec
Product Dimensions142 -98 -164 mm
Heatsink Dimensions140 -49 -159 mm
Net Weight1030 g
Heatpipe
Single tower cooler with 5 heat pipes high fin density.
Slim profile for maximum RAM height compatibility.
High-performance TF140S PWM fan included.
A-RGB LED controller included.
ELEVATED COOLING PERFORMANCE
Optimize heat exchange through a solid copper base with optimal surface contact that runs five 6mm heat pipes in a single tower with high fin density
SIZED JUST RIGHT
Designed for maximum RAM height compatibility in a slim (48mm) profile.
CONTROL YOUR TEMPS
The high-performance TF140S PWM fan provides precise control between extreme cooling or low-noise operation with long-life durability.
Application For
Intel LGA2066/2011-v3/2011/1200/1151/1150/1155
AMD AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
Technical Spec
Product Dimensions142 -98 -164 mm
Heatsink Dimensions140 -49 -159 mm
Net Weight1030 g
Heatpipe
| Performance | |
| Suitable for Who can use the product, or what the product can be used for. | Processor |
| Type Characteristics of the device. | Cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 14 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | AMD Athlon, AMD Phenom, AMD Ryzen 3, 2nd Generation AMD Ryzen™ 3, AMD Ryzen 3 3rd Gen, AMD Ryzen 5, 2nd Generation AMD Ryzen™ 5, 3rd Generation AMD Ryzen 5, AMD Ryzen 7, 2nd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9, AMD Ryzen Threadripper, AMD Ryzen™ Threadripper™: The Second Generation, AMD Ryzen Threadripper 3rd Gen, AMD Ryzen Threadripper Pro 3rd Gen, Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel Core i7 Extreme Edition, Intel Core i9, Intel Core i9 Extreme Edition, Intel® Pentium®, Intel® Xeon® |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 1200 RPM |
| Noise level (low speed) | 26 dB |
| Noise level (high speed) How loud the device is when used at high speed. | 29.2 dB |
| Minimum airflow (imperial) | 70.81 cfm |
| Maximum air pressure | 1.14 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Aluminium, Copper, Plastic |
| Radiator material | Copper |
| Base plate material | Aluminium |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Number of fan blades | 9 |
| Number of heat pipes | 5 |
| Illumination LED |
|
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Red/Green/Blue |
| Fan connector | 4-pin |
| Ports & interfaces | |
| RGB ports quantity | 1 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.32 W |
| Rated voltage | 12 V |
| Rated current (hub) | 0.11 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 142 mm |
| Depth The distance from the front to the back of something. | 98 mm |
| Height The measurement of the product from head to foot or from base to top. | 164 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.03 kg |
| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Fan thickness | 2.5 cm |
| Heat pipes diameter | 6 mm |
| Packaging content | |
| Package type The type of product package e.g. box. | Box |
| Cables included | Fan, SATA |
| Mounting kit |
|
| Screws included |
|
| Thermal pad included |
|
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| SKU | 483377 |
| MPN | R-AS500-BKNLMN-G |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Fan Size (mm) | 140mm |
| Cooling Technology | Air |
| Product Use | General |
| Product Features | RGB |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.deepcool.com/ |
