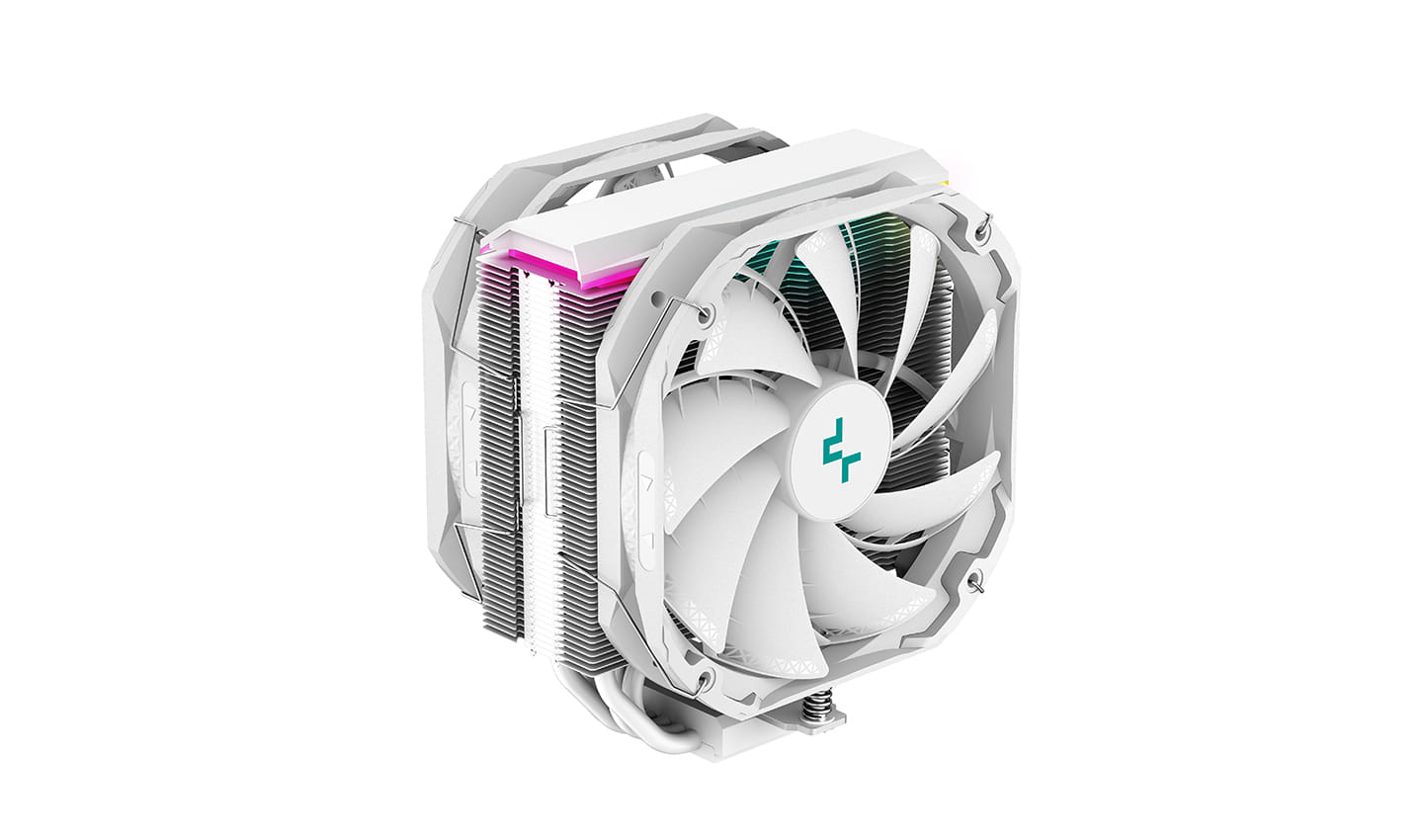

DeepCool AS500 PLUS, Cooler, 14 cm, 500 RPM, 1200 RPM, 29.2 dB, 70.81 cfm
The DeepCool AS500 PLUS WH single tower CPU cooler boasts a five heat pipe, all white design with two TF140S PWM fans for great performance in a slim profile.
ELEVATED COOLING PERFORMANCE
Optimize heat exchange through a solid copper base with optimal surface contact that runs five 6mm heat pipes in a single tower with high fin density
SIZED JUST RIGHT
Designed for maximum RAM height compatibility in a slim (48mm) profile.
CONTROL YOUR TEMPS
The high-performance TF140S PWM fans provide precise control between extreme cooling or low-noise operation with long-life durability.
A-RGB LED CONTROLLER
An included wire controller allows for a quick and easy way to adjust lighting effects without installing additional software.Appropriate A-RGB connector cables for motherboard control are also provided.
ELEVATED COOLING PERFORMANCE
Optimize heat exchange through a solid copper base with optimal surface contact that runs five 6mm heat pipes in a single tower with high fin density
SIZED JUST RIGHT
Designed for maximum RAM height compatibility in a slim (48mm) profile.
CONTROL YOUR TEMPS
The high-performance TF140S PWM fans provide precise control between extreme cooling or low-noise operation with long-life durability.
A-RGB LED CONTROLLER
An included wire controller allows for a quick and easy way to adjust lighting effects without installing additional software.Appropriate A-RGB connector cables for motherboard control are also provided.
| Performance | |
| Suitable for Who can use the product, or what the product can be used for. | Processor |
| Type Characteristics of the device. | Cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 14 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2 |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 1200 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 29.2 dB |
| Maximum airflow | 70.81 cfm |
| Maximum air pressure | 1.14 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Illumination LED |
|
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Multi |
| Fan connector | 4-pin |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.32 W |
| Rated voltage | 12 V |
| Rated current | 0.11 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 142 mm |
| Depth The distance from the front to the back of something. | 162 mm |
| Height The measurement of the product from head to foot or from base to top. | 102 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.2 kg |
| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Heat pipes diameter | 6 mm |
| SKU | 541208 |
| MPN | R-AS500-WHNLMP-G |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.deepcool.com/ |
| Stock Availability | Available for Shipping |
