DeepCool AN600, Air cooler, 12 cm, 61.56 cfm, Aluminium, Black
AN600

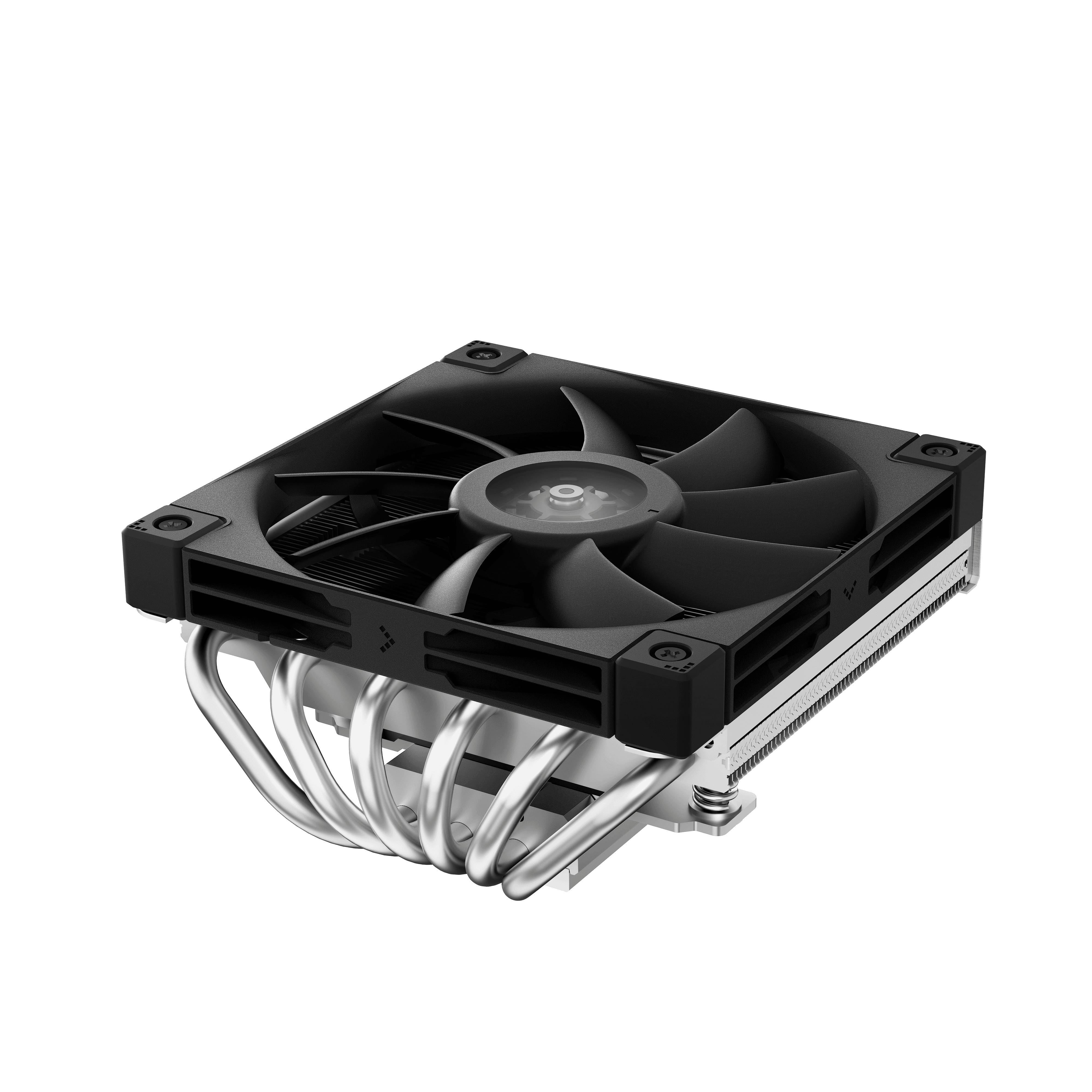

The AN600 is a low profile CPU cooler that provides 180W of cooling to the CPU while also cooling the RAM modules. Making full use of a 120mm high airflow fan and an overhanging design, the AN600 actively cools RAM modules up to 40mm tall, while being compatible with ITX motherboards.
AN600
Top Flow Low Profile Cooler
KEEPING THINGS COOL
Utilizing 62 aluminum fins, a slim profile 120mm fan, 6 optimized heatpipes, and a raised copper coldplate, the AN600 packs a lot of cooling potential in a short 67mm tall CPU cooler.
MORE THAN A CPU COOLER
Taking full advantage of the slim 120mm PWM enabled FDB fan and a top down air flow, the AN600 pushes massive amounts of air through the fin array and down onto the RAM and VRMs below. The visible 6 phase fan motor ensures all of this is accomplished while staying under 24.2 dB(A). A low noise adapter cable is included.
SIMPLIFIED SUPPORT
The all metal back plate is easy to install and evenly distributes pressure from the rear of the motherboard, while providing reinforcement behind the CPU socket.
The AN600 is a low profile CPU cooler that provides 180W of cooling to the CPU while also cooling the RAM modules. Making full use of a 120mm high airflow fan and an overhanging design, the AN600 actively cools RAM modules up to 40mm tall, while being compatible with ITX motherboards.
AN600
Top Flow Low Profile Cooler
KEEPING THINGS COOL
Utilizing 62 aluminum fins, a slim profile 120mm fan, 6 optimized heatpipes, and a raised copper coldplate, the AN600 packs a lot of cooling potential in a short 67mm tall CPU cooler.
MORE THAN A CPU COOLER
Taking full advantage of the slim 120mm PWM enabled FDB fan and a top down air flow, the AN600 pushes massive amounts of air through the fin array and down onto the RAM and VRMs below. The visible 6 phase fan motor ensures all of this is accomplished while staying under 24.2 dB(A). A low noise adapter cable is included.
SIMPLIFIED SUPPORT
The all metal back plate is easy to install and evenly distributes pressure from the rear of the motherboard, while providing reinforcement behind the CPU socket.
| Performance | |
| Suitable location Locations in which the product can be used. | Processor |
| Type Characteristics of the device. | Air cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Maximum airflow | 61.56 cfm |
| Maximum air pressure | 1.97 mmH2O |
| Fan noise level (max) | 24.2 dB |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1850 RPM |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Aluminium, Black |
| Radiator material | Aluminum |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Number of fan blades | 9 |
| Number of heat pipes | 6 |
| Illumination LED |
 |
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | White |
| Fan connector | 4-pin |
| Power | |
| Fan power consumption | 3.24 W |
| Thermal Design Power (TDP) | 180 W |
| Fan voltage | 12 V |
| Fan current | 0.27 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 122 mm |
| Radiator width | 12.1 cm |
| Radiator depth | 12 cm |
| Radiator height | 5.2 cm |
| Depth The distance from the front to the back of something. | 120 mm |
| Height The measurement of the product from head to foot or from base to top. | 67 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 628 g |
| Fan dimensions (W x D x H) | 120 x 120 x 15 mm |
| Heat pipes diameter | 6 mm |
| Packaging content | |
| Package type The type of product package e.g. box. | Box |
| Mounting kit |
|
| Screws included |
|
| CPU bracket(s) |
|
| SKU | 737696 |
| MPN | R-AN600-BKNNMN-G |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.deepcool.com/ |
| Stock Availability | Available for Shipping |
