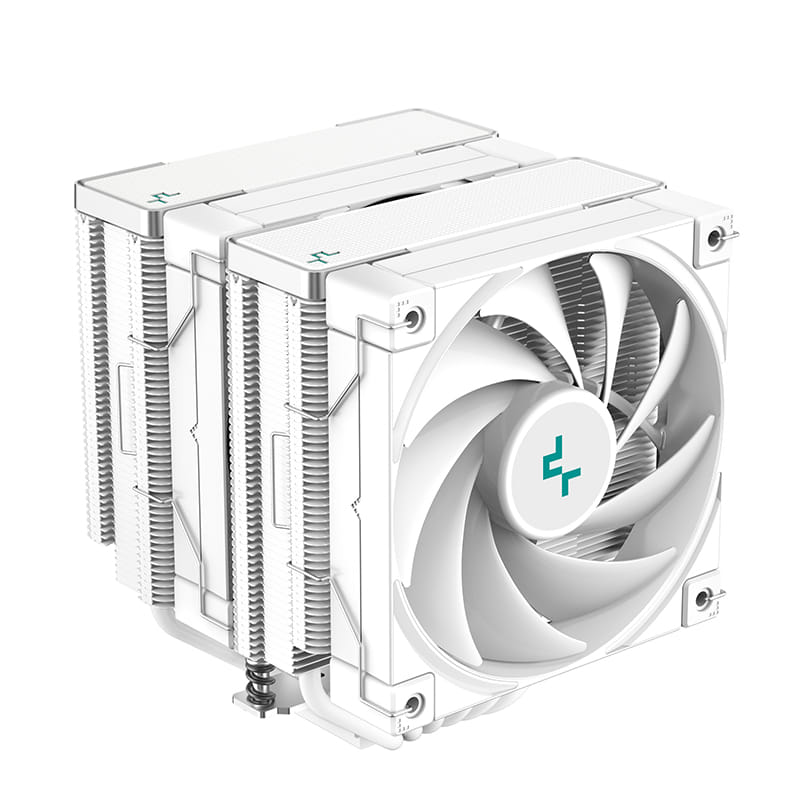

DeepCool AK620 WH, Air cooler, 12 cm, 500 RPM, 1850 RPM, 28 dB, 68.99 cfm
UNLOCKED POTENTIAL
Achieve peak performance on your CPU with substantial cooling capacity for high frequency overclocking. The AK620 WH features a maximum heat dissipation power of 260W and improved airflow to lower temperatures during demanding system applications.
COOL, QUIET, AND POWERFUL
Two 120 PWM fans with superior fluid dynamic bearings offer low noise operation without losing cooling output for a perfect balance.
EXCEPTIONAL COOLING BY DESIGN
The AK620 WH features a precision-machined convex copper base and six copper heat pipes that deliver improved heat transfer capabilities. The dense matrix fin array in a dual tower heat sink layout offers better efficiency for high performance systems.
MULTI-PLATFORM SIMPLICITY
The all-metal mounting bracket kit provides a sturdy and easy installation process for both Intel and AMD platforms with additional tools included.
Achieve peak performance on your CPU with substantial cooling capacity for high frequency overclocking. The AK620 WH features a maximum heat dissipation power of 260W and improved airflow to lower temperatures during demanding system applications.
COOL, QUIET, AND POWERFUL
Two 120 PWM fans with superior fluid dynamic bearings offer low noise operation without losing cooling output for a perfect balance.
EXCEPTIONAL COOLING BY DESIGN
The AK620 WH features a precision-machined convex copper base and six copper heat pipes that deliver improved heat transfer capabilities. The dense matrix fin array in a dual tower heat sink layout offers better efficiency for high performance systems.
MULTI-PLATFORM SIMPLICITY
The all-metal mounting bracket kit provides a sturdy and easy installation process for both Intel and AMD platforms with additional tools included.
| Performance | |
| Suitable location Locations in which the product can be used. | Processor |
| Type Characteristics of the device. | Air cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4 |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 1850 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 28 dB |
| Maximum airflow | 68.99 cfm |
| Maximum air pressure | 2.19 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Number of heat pipes | 6 |
| Fan connector | 4-pin |
| Power | |
| Rated voltage | 12 V |
| Fan power consumption | 1.44 W |
| Rated current | 0.12 A |
| Thermal Design Power (TDP) | 260 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 129 mm |
| Depth The distance from the front to the back of something. | 138 mm |
| Height The measurement of the product from head to foot or from base to top. | 160 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.46 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Packaging content | |
| Package type The type of product package e.g. box. | Box |
| Mounting kit |
|
| Screws included |
|
| Thermal pad included |
|
| Installation instruction |
|
| CPU bracket(s) |
|
| SKU | 643216 |
| MPN | R-AK620-WHNNMT-G-1 |
