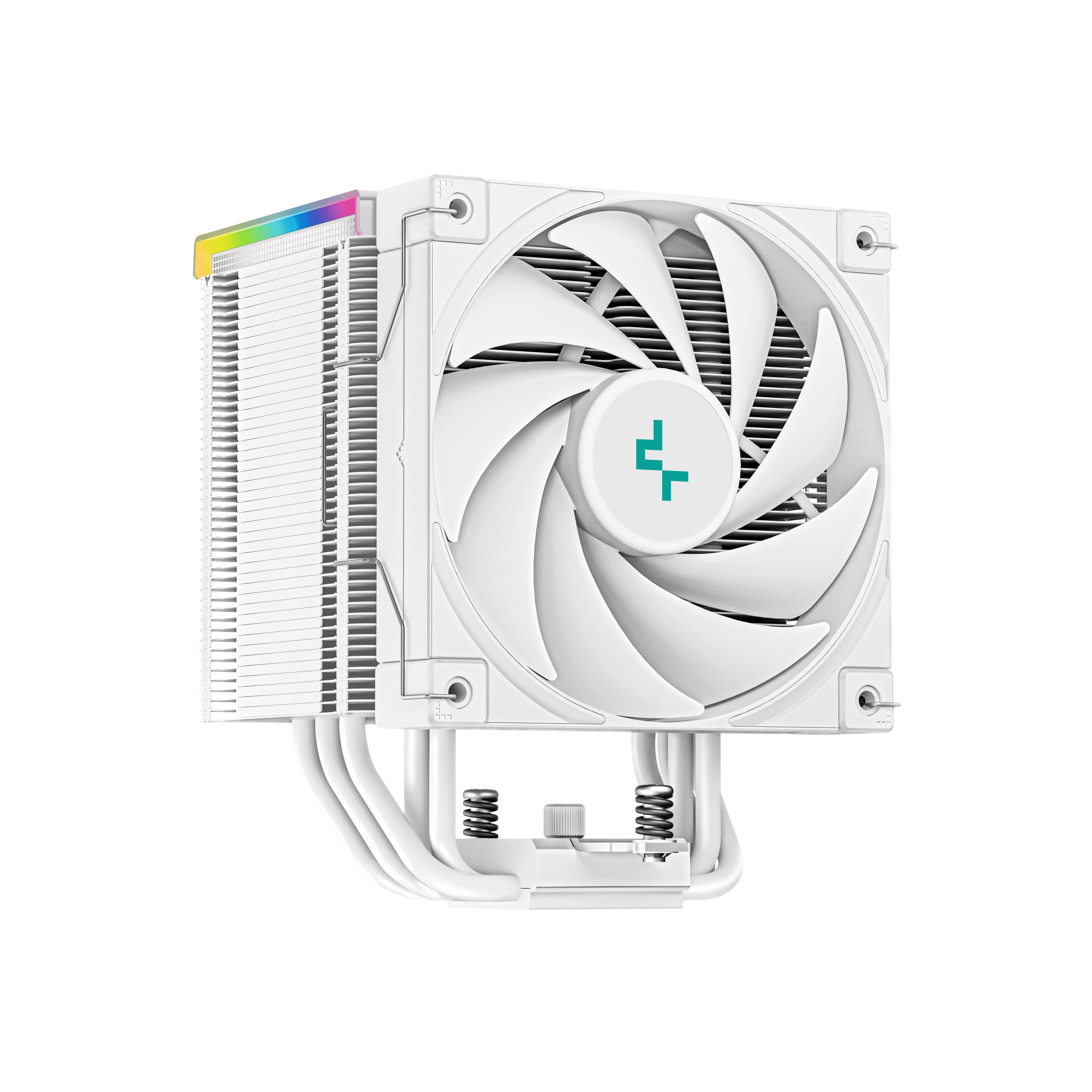

DeepCool AK500 Digital WH, Air cooler, 12 cm, 68.99 cfm, White
The era of digital air coolers has arrived, and DeepCool is proud to introduce the AK500 DIGITAL WH. Everything you loved about the original AK500 WH, but with a sleek magnetic status display and ARGB LED strips.
AK500 DIGITAL WH
WELCOME TO THE DIGITAL ERA
REAL-TIME STATUS SCREEN
The crystal-clear digital screen displays the temperature and usage of your system's CPU in real time, and there is also a high temperature warning. The display is controlled via a simple application that only requires an open USB 2.0 header.
PROVEN AK WH DESIGN
An all-white variant of our highly compatible AK500 CPU cooler featuring an offset direct touch, a five heat pipe wide tower layout, a unique white matrix fin design, and a high-performance FDB fan that delivers excellent heat dissipation and extremely low noise levels.
STELLAR COOLING
The exceptional cooling performance of the AK500 DIGITAL WH on modern CPUs makes it the perfect choice for mainstream systems needing impressive price-performance ratio in a compact size.
COOL, QUIET, AND POWERFUL
Achieve high-performance cooling with minimal noise levels thanks to the included FK120 fan that maximizes airflow and static pressure when needed and intelligently ramps down for silent efficiency.
PREMIUM DRAM COMPATIBILITY
The angled offset heat pipe design offers clear access to your DIMM slots for better compatibility with tall heat spreaders and also shows off any RGB lighting. For quad-channel motherboards, the rear slots have a clearance of 45mm.
SIMPLE AND SECURE INSTALLATION
The provided all metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.
AK500 DIGITAL WH
WELCOME TO THE DIGITAL ERA
REAL-TIME STATUS SCREEN
The crystal-clear digital screen displays the temperature and usage of your system's CPU in real time, and there is also a high temperature warning. The display is controlled via a simple application that only requires an open USB 2.0 header.
PROVEN AK WH DESIGN
An all-white variant of our highly compatible AK500 CPU cooler featuring an offset direct touch, a five heat pipe wide tower layout, a unique white matrix fin design, and a high-performance FDB fan that delivers excellent heat dissipation and extremely low noise levels.
STELLAR COOLING
The exceptional cooling performance of the AK500 DIGITAL WH on modern CPUs makes it the perfect choice for mainstream systems needing impressive price-performance ratio in a compact size.
COOL, QUIET, AND POWERFUL
Achieve high-performance cooling with minimal noise levels thanks to the included FK120 fan that maximizes airflow and static pressure when needed and intelligently ramps down for silent efficiency.
PREMIUM DRAM COMPATIBILITY
The angled offset heat pipe design offers clear access to your DIMM slots for better compatibility with tall heat spreaders and also shows off any RGB lighting. For quad-channel motherboards, the rear slots have a clearance of 45mm.
SIMPLE AND SECURE INSTALLATION
The provided all metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.
| Performance | |
| Suitable location Locations in which the product can be used. | Processor |
| Type Characteristics of the device. | Air cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Maximum airflow | 68.99 cfm |
| Maximum air pressure | 2.19 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Fan noise level (max) | 28 dB |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1850 RPM |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Radiator material | Aluminum |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Number of fan blades | 9 |
| Number of heat pipes | 5 |
| Illumination LED |
|
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Multi |
| LED connector type | 3-pin |
| Fan connector | 4-pin |
| Power | |
| Fan power consumption | 1.44 W |
| LED voltage | 5 V |
| Fan voltage | 12 V |
| Fan current | 0.12 A |
| LED power consumption (fan) | 4.5 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 117 mm |
| Radiator width | 9.2 cm |
| Radiator depth | 12.7 cm |
| Radiator height | 15.6 cm |
| Depth The distance from the front to the back of something. | 127 mm |
| Height The measurement of the product from head to foot or from base to top. | 160 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.29 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Heat pipes diameter | 6 mm |
| Package width The distance from one side of the packaging to the other. | 219 mm |
| Package depth The distance from the front to the back of the packaging. | 173 mm |
| Package height The distance from the top to the bottom of the packaging. | 162 mm |
| Package weight Weight of the packaged product. | 1.59 kg |
| Packaging content | |
| Package type The type of product package e.g. box. | Box |
| Mounting kit |
|
| Screws included |
|
| CPU bracket(s) |
|
| SKU | 756992 |
| MPN | R-AK500-WHADMN-G |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.deepcool.com/ |
| Stock Availability | In Stock at Bankstown |
