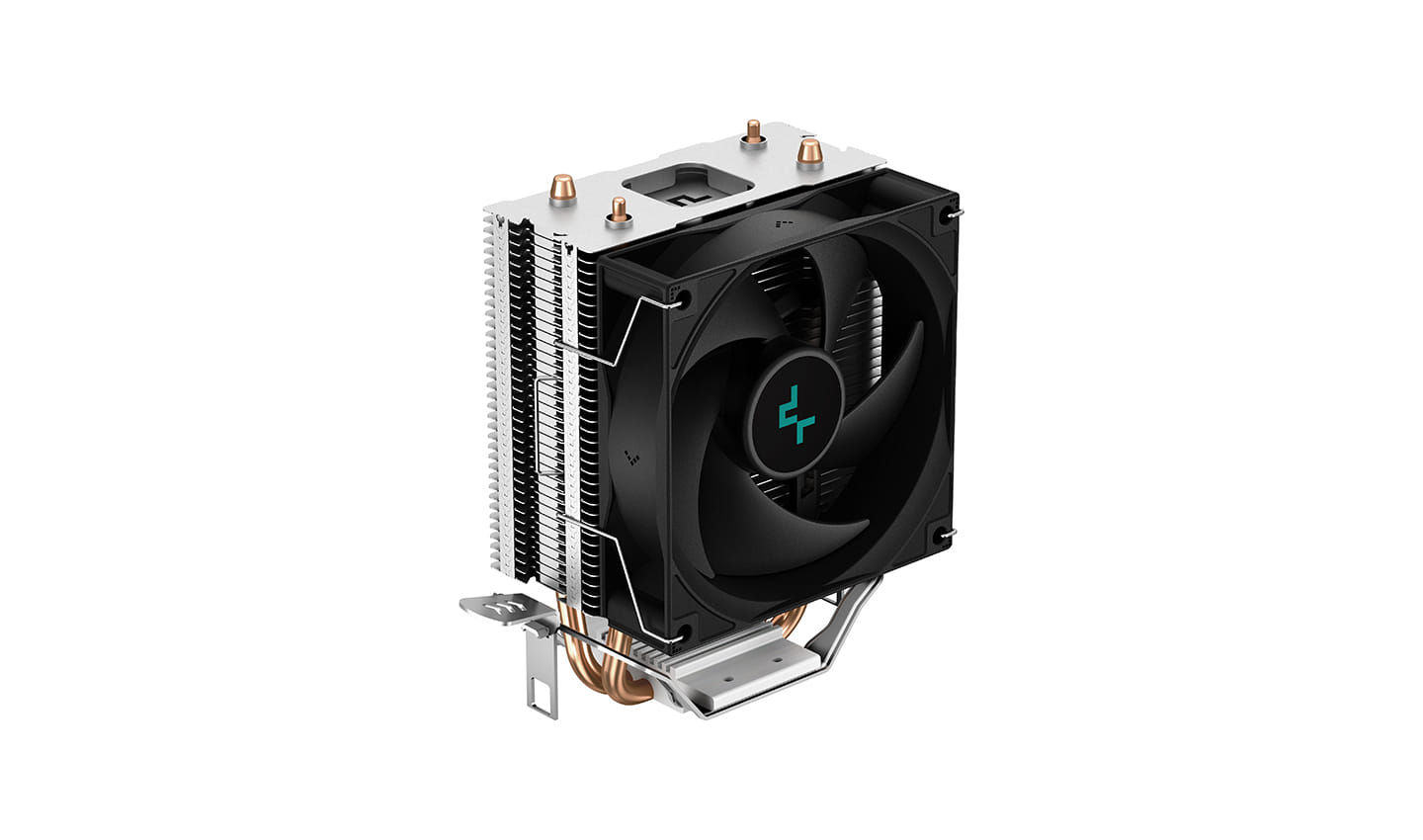

DeepCool AG200, Air cooler, 9.2 cm, 500 RPM, 3050 RPM, 30.5 dB, 36.75 cfm
EFFICIENT
COOLING POWER
Two direct contact copper heat pipes effectively transfer heat for optimal dissipation through the heat sink tower. The 92mm PWM fan outputs balanced airflow for performance and silence.
NEW FAMILY APPEARANCE
The AG200 adopts a new DeepCool family design and features a unique matrix fin array that densely packs each fin for a neat and firm construction.
EASY INSTALLATION
Compatible with multiple socket platforms from Intel and AMD with support for the latest changes. Ensure a proper mount pressure with the included brackets for a seamless installation.
COOLING POWER
Two direct contact copper heat pipes effectively transfer heat for optimal dissipation through the heat sink tower. The 92mm PWM fan outputs balanced airflow for performance and silence.
NEW FAMILY APPEARANCE
The AG200 adopts a new DeepCool family design and features a unique matrix fin array that densely packs each fin for a neat and firm construction.
EASY INSTALLATION
Compatible with multiple socket platforms from Intel and AMD with support for the latest changes. Ensure a proper mount pressure with the included brackets for a seamless installation.
| Performance | |
| Suitable location Locations in which the product can be used. | Processor |
| Type Characteristics of the device. | Air cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 9.2 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 3050 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 30.5 dB |
| Maximum airflow | 36.75 cfm |
| Maximum air pressure | 2.89 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Bearing type | Hydraulic |
| Quantity per pack | 1 pc(s) |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Aluminium, Black |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Number of fan blades | 5 |
| Number of heat pipes | 2 |
| Fan connector | 4-pin |
| Power | |
| Rated voltage | 12 V |
| Fan power consumption | 1.56 W |
| Rated current | 0.13 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 119 mm |
| Radiator width | 9.4 cm |
| Radiator depth | 13.3 cm |
| Radiator height | 5.7 cm |
| Depth The distance from the front to the back of something. | 133 mm |
| Height The measurement of the product from head to foot or from base to top. | 77 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 304 g |
| Fan dimensions (W x D x H) | 92 x 92 x 25 mm |
| Heat pipes diameter | 6 mm |
| Packaging content | |
| Package type The type of product package e.g. box. | Box |
| CPU socket spacer(s) |
|
| SKU | 743234 |
| MPN | R-AG200-BKNNMN-G |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.deepcool.com/ |
| Stock Availability | Available for Shipping |
