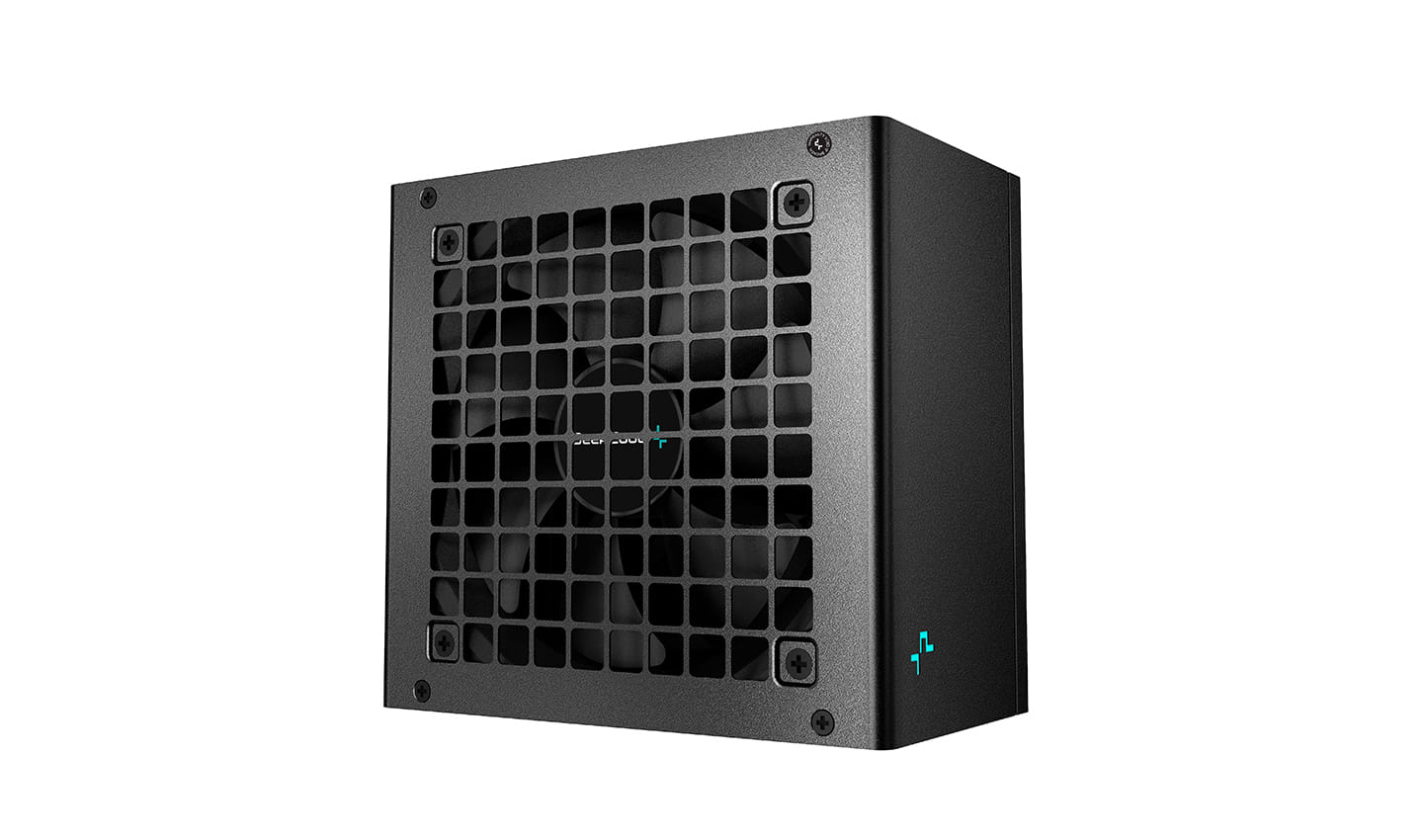

DeepCool PK650D 80+ Bronze Power Supply Unit, 120mm Fan, Taiwan Capacitor, DC to DC, ATX12V V2.4, 100,000 MTBF, 85% Efficiency
DeepCool PK-D series power supply offers reliable 80 PLUS Bronze efficiency to power computer system builds with stability and low noise performance.
BEAUTIFUL IN BRONZE The PK-D series is certified 80 PLUS Bronze, delivering up to 85% efficiency under typical load minimizing excess heat waste and lowering energy costs.
DC-DC CONVERSION A highly efficient DC-DC board designed for the +3.3V and +5V rails help achieve tighter voltage regulation and improve system compatibility for next-generation components.
TOUGH AND DURABLE Designed to operate effortlessly in high temperatures up to 40 DegC and high altitudes up to 5000m while providing continuous stable power output.
ERP LOT 6 COMPLIANT Designed to be highly power efficient when in power standby mode to meet international ErP Lot 6 standards to lower overall energy consumption.
Technical Spec
Type ATX12V V2.4
Product Dimensions 150 -140 -86mm (W x L x H)
80PLUS Certifications Bronze
Fan Size 120mm
Fan Bearing Hypro Bearing
Topology Active PFC+DC to DC
Capacitors Taiwan capacitor
Power Good Signal 100-150ms
Hold Up Time 16ms(80% Load)
Efficiency 85% Under Typical Load(50% Loading)
Protection SCP,OPP,OTP,OVP,OCP,UVP
Operation Temperature 0 - 40 DegC
Regulatory CB/CE/FCC/CAN ICES-003(B)/NMB-003(B)/ TUV-RH/CCC/UKCA/EAC/RCM/BIS
Erp Regulation ErP 2013
MTBF 100,000 Hours
BEAUTIFUL IN BRONZE The PK-D series is certified 80 PLUS Bronze, delivering up to 85% efficiency under typical load minimizing excess heat waste and lowering energy costs.
DC-DC CONVERSION A highly efficient DC-DC board designed for the +3.3V and +5V rails help achieve tighter voltage regulation and improve system compatibility for next-generation components.
TOUGH AND DURABLE Designed to operate effortlessly in high temperatures up to 40 DegC and high altitudes up to 5000m while providing continuous stable power output.
ERP LOT 6 COMPLIANT Designed to be highly power efficient when in power standby mode to meet international ErP Lot 6 standards to lower overall energy consumption.
Technical Spec
Type ATX12V V2.4
Product Dimensions 150 -140 -86mm (W x L x H)
80PLUS Certifications Bronze
Fan Size 120mm
Fan Bearing Hypro Bearing
Topology Active PFC+DC to DC
Capacitors Taiwan capacitor
Power Good Signal 100-150ms
Hold Up Time 16ms(80% Load)
Efficiency 85% Under Typical Load(50% Loading)
Protection SCP,OPP,OTP,OVP,OCP,UVP
Operation Temperature 0 - 40 DegC
Regulatory CB/CE/FCC/CAN ICES-003(B)/NMB-003(B)/ TUV-RH/CCC/UKCA/EAC/RCM/BIS
Erp Regulation ErP 2013
MTBF 100,000 Hours
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 650 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10 - 5 A |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Hold time | 16 ms |
| Efficiency | 85% |
| Power Good signal delay range | 100 - 150 ms |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Motherboard power cable length | 50 cm |
| Number of SATA power connectors | 7 |
| SATA power cable length | 100,400 mm |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 4 |
| Peripheral (Molex) power cable length | 100,400 mm |
| EPS power connector (4+4 pin) |
 |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 62 cm |
| CPU power cable length | 62 cm |
| ATX power connector (20+4 pin) |
|
| Cabling type | Non-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 2.4 |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 100000 h |
| Certification | CB/CE/FCC/CAN ICES-003(B)/NMB-003(B)/ TUV-RH/CCC/UKCA/EAC/RCM/BIS |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Packaging content | |
| Cables included | AC |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 140 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Packaging data | |
| Package type The type of product package e.g. box. | Box |
| Technical details | |
| Sustainability certificates | ErP |
| Other features | |
| Screws included |
|
| Number of screws | 4 |
| Technical features | Capacitors - Taiwan capacitor; Topology - Active PFC+DC to DC; Fan Bearing - Hypro Bearing |
| SKU | 643244 |
| MPN | R-PK650D-FA0B-AU |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
