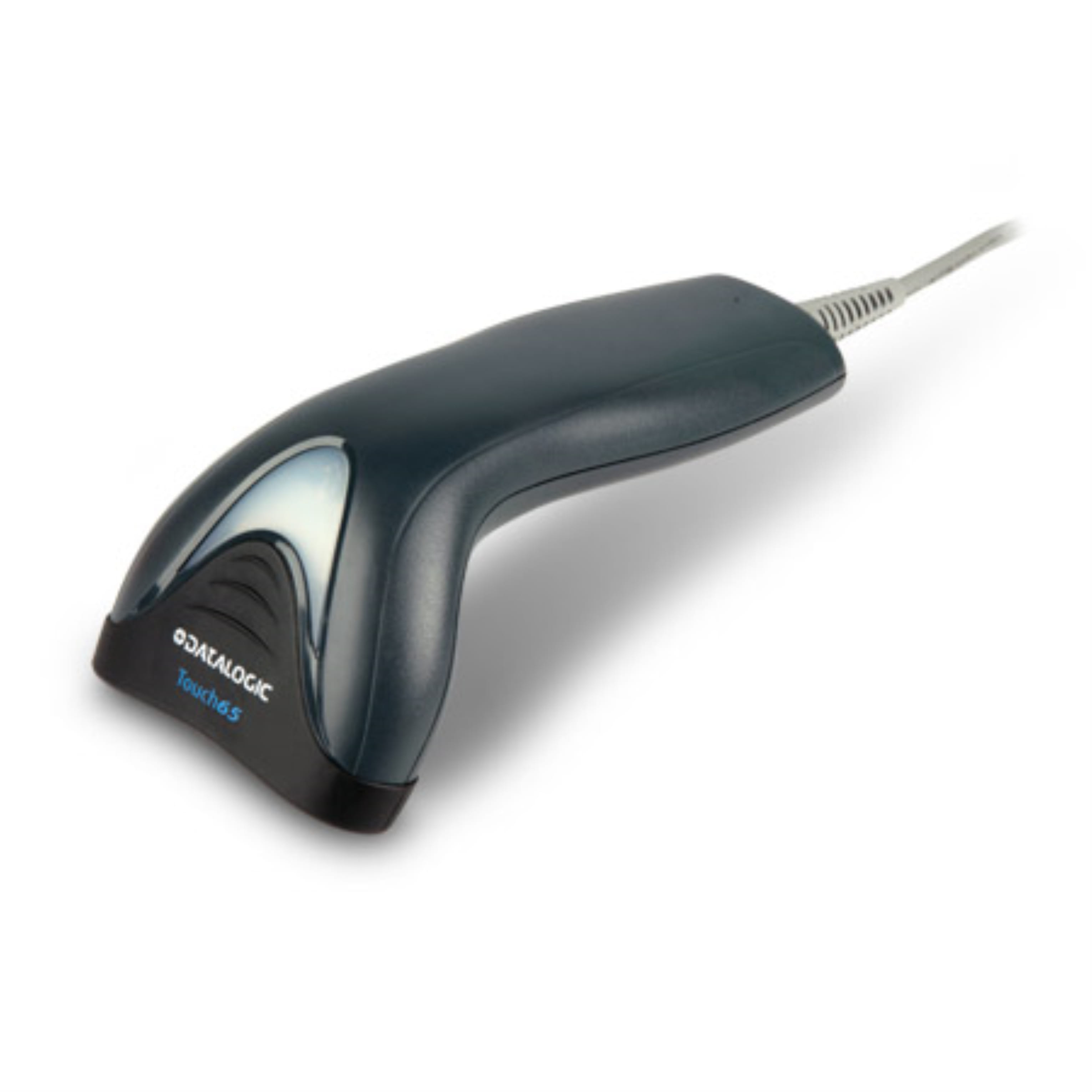

Datalogic Touch 65 Lite, Handheld bar code reader, 1D, Laser, Code 39,EAN-13, 15 cm, 0 - 20000 lx
The Touch TD1100 readers are available with the option of two different sizes of reading windows: 6.5 cm / 2.6 in (TD1100-65) for reading standard bar codes or 9.0 cm / 3.5 in (TD1100-90) for reading wide bar codes. Both options are provided with a complete all-in-one multi-interface solution including RS-232, USB and Keyboard Wedge (TD1130) and with USB or RS-232 / Keyboard Wedge interfaces (TD1120/TD1170). All models include the new innovative 'read-through' holder. Cables, power cords and supplies are all sold separately.
| Scanning | |
| Type Characteristics of the device. | Handheld bar code reader |
| Scanner type Indicates the type of scanner this product is. | 1D |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | Laser |
| Linear (1D) barcodes supported The product can read linear (1D) barcordes. | Code 39,EAN-13 |
| 2D (matrix & stacked) barcodes supported The product can read matrix (2D) barcordes. | Not supported |
| Working distance | 15 cm |
| Light levels (direct sunlight) | 0 - 20000 lx |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 640 nm |
| Tilt reading angle | -45 - 45° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -70 - 70° |
| Tilt angle range | -45 - 45° |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | USB |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
 |
| Performance | |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP30 |
| Buzzer |
 |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | RoHS |
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 5 V |
| Power consumption | 100 mA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 84 mm |
| Depth The distance from the front to the back of something. | 160 mm |
| Height The measurement of the product from head to foot or from base to top. | 58 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 130 g |
| Packaging data | |
| Cables included | USB |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Sustainability certificates | RoHS |
| SKU | 539135 |
| MPN | TD1120-BK-65K1 |
| Brand | DataLogic |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
