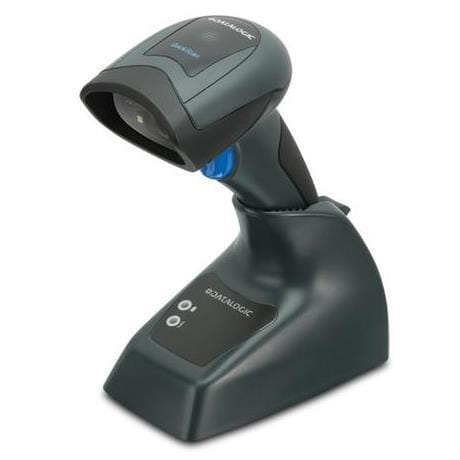

Datalogic QuickScan Mobile QM2131, Handheld bar code reader, 1D, CCD, 400 reads/s, 0 - 120000 lx, 0 - 45 deg
LINEAR DECODING
Today there is an increased trend towards 2D bar codes, however, linear bar codes are still dominant in the automatic data capture industry. Long bar codes are commonly used in a variety of applications including utilities bills, document processing and packaging. These long codes are a challenge for full
area imagers to read due to their narrow field of view and shorter depth of field.
ENHANCED PERFORMANCE
The QuickScan QM2131 imager s extrawide field of view and extra-long scan line makes reading long bar codes in closer distances much easier. The sharp and highly visible scan line makes the scanner more user-friendly to use, while the enhanced depth of field enables bar codes to be read at an intuitive distance. The stylish design is the signature of the QuickScan series, completing a consistent family appearance.
CORDLESS FEATURES
Featuring Datalogic s STAR 2.0 Cordless System for narrow band 433 MHz radio communications, the QM2131 linear imager provides secure radio communications with no risk of interference from Wi-Fi infrastructure and very low sensitivity to obstacles like concrete walls, wood or metal shelves.
An innovative, long lasting and user replaceable Li-Ion battery package allows the simultaneous replacement of battery and scanner contacts for a refresh of the most significant parts related to a mobile product s functionality. A microUSB port on the scanner foot allows an auxiliary method for
battery recharging and host download configuration, and also allows the product to be used without the cradle.
Today there is an increased trend towards 2D bar codes, however, linear bar codes are still dominant in the automatic data capture industry. Long bar codes are commonly used in a variety of applications including utilities bills, document processing and packaging. These long codes are a challenge for full
area imagers to read due to their narrow field of view and shorter depth of field.
ENHANCED PERFORMANCE
The QuickScan QM2131 imager s extrawide field of view and extra-long scan line makes reading long bar codes in closer distances much easier. The sharp and highly visible scan line makes the scanner more user-friendly to use, while the enhanced depth of field enables bar codes to be read at an intuitive distance. The stylish design is the signature of the QuickScan series, completing a consistent family appearance.
CORDLESS FEATURES
Featuring Datalogic s STAR 2.0 Cordless System for narrow band 433 MHz radio communications, the QM2131 linear imager provides secure radio communications with no risk of interference from Wi-Fi infrastructure and very low sensitivity to obstacles like concrete walls, wood or metal shelves.
An innovative, long lasting and user replaceable Li-Ion battery package allows the simultaneous replacement of battery and scanner contacts for a refresh of the most significant parts related to a mobile product s functionality. A microUSB port on the scanner foot allows an auxiliary method for
battery recharging and host download configuration, and also allows the product to be used without the cradle.
| Scanning | |
| Type Characteristics of the device. | Handheld bar code reader |
| Scanner type Indicates the type of scanner this product is. | 1D |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CCD |
| Read rate (max) | 400 reads/s |
| Light levels (direct sunlight) | 0 - 120000 lx |
| Tilt reading angle | 0 - 45° |
| Pitch reading angle | 0 - 65° |
| Yaw reading angle | 0 - 70° |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired & Wireless |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | USB |
| Operating frequency The rate at which an electrical current alternates, usually measured in Hertz (Hz). Also the way to note a general location on the radio frequency spectrum such as 800 MHz, 900 MHz or 1900 MHz. | 433 MHz |
| Cable length How long the cable is. | 1.5 m |
| Performance | |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP42 |
| LED indicators | Power |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | China RoHS, EU RoHS |
| Power | |
| Power source type What the power source is. | Battery, DC |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Lithium-Ion (Li-Ion) |
| Battery capacity A measure of the charge stored by the battery. Determined by the mass of active material contained in the battery. | 1400 mAh |
| Number of reads per charge | 30000 |
| Charging time The amount of time needed to charge the product. | 4 h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 91 mm |
| Depth The distance from the front to the back of something. | 41 mm |
| Height The measurement of the product from head to foot or from base to top. | 163 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 190 g |
| Base weight | 215 g |
| Packaging data | |
| Cables included | USB |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | 40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 50% |
| SKU | 457520 |
| MPN | QM2131-BK-433K1 |
| Brand | DataLogic |
| Product Condition | Brand New/Unused |
| Product Use | General |
