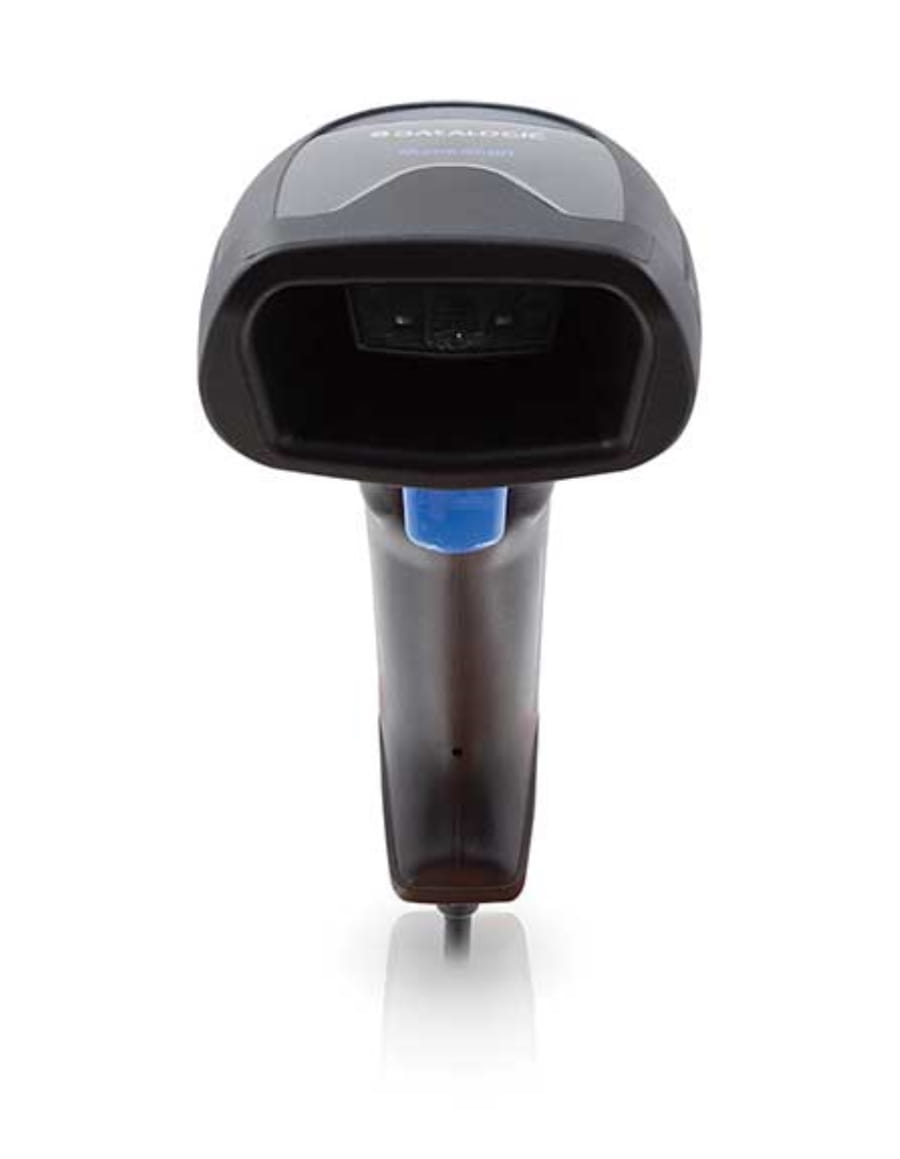

Datalogic QW2520, Handheld bar code reader, 1D/2D, Laser, GS1 DataBar, Han Xin, Aztec Code, Data Matrix, QR Code, Micro QR Code, 640 x 480 pixels
The QuickScan QW2500 is the simplest model within the 2500 Series. It comes in the same rugged, durable IP52 rated housing as the QD2500. The only moving part is the trigger, which will comfortably give you a class-leading 10 million hits. It offers consistent, reliable reading of all standard barcodes. For applications requiring high efficiency and fast throughput, the QW2500 represents one of the best value for money handheld scanners on the market today.
| Scanning | |
| Type Characteristics of the device. | Handheld bar code reader |
| Scanner type Indicates the type of scanner this product is. | 1D/2D |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | Laser |
| Linear (1D) barcodes supported The product can read linear (1D) barcordes. | GS1 DataBar |
| 2D (matrix & stacked) barcodes supported The product can read matrix (2D) barcordes. | Han Xin, Aztec Code, Data Matrix, QR Code, Micro QR Code |
| Optical sensor resolution (W x H) | 640 x 480 pixels |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | 0 - 65° |
| Yaw reading angle | 0 - 65° |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | Keyboard wedge, RS-232, USB |
| Performance | |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP52 |
| Protection features Physical effects from which the product is protected e.g. water resistant, crash proof. | Shock resistant, Water resistant |
| Keys quantity | 1 keys |
| LED indicators |
 |
| Image formats supported The type of image files that the device can use/display e.g. gif, JPEG (jpg). | BMP,JPEG,TIFF |
| Ambient lighting |
|
| Print contrast | 15% |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| Power source type What the power source is. | DC, USB |
| Input voltage The voltage (V) which is required to power the product. | 5 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 148 mm |
| Depth The distance from the front to the back of something. | 68 mm |
| Height The measurement of the product from head to foot or from base to top. | 126 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 145 g |
| Packaging data | |
| Cables included | USB |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | RoHS |
| SKU | 539120 |
| MPN | QW2520-BKK1S |
| Brand | DataLogic |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
