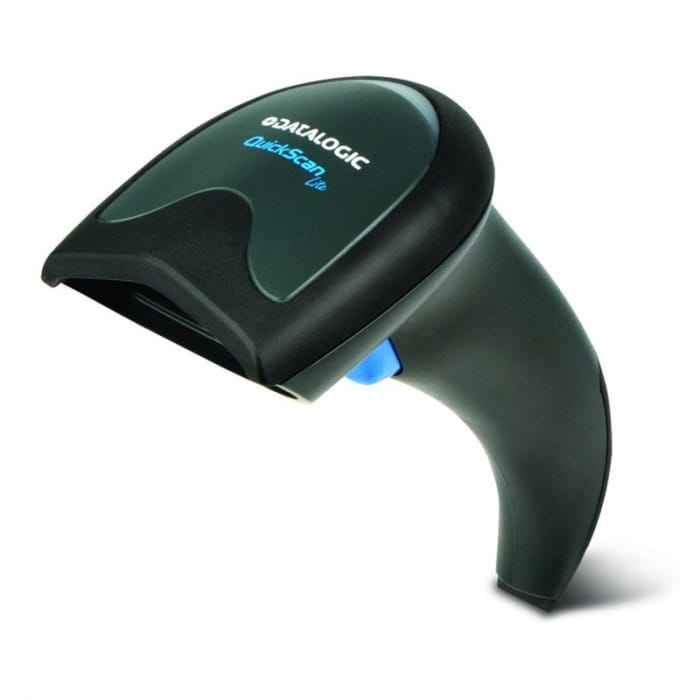

QuickScan Lite Imager, Black, USB Interface w/ Enhanced USB Cable and Stand
The QuickScan reader series is Datalogic ADC's value line of general purpose handheld data collection products. The QuickScan Lite QW2100 linear imager is an entry level product created specifically for reading long and truncated bar codes which is common in some areas of the world. It is perfect for use in retail, light manufacturing, document/bill processing and banking/finance environments.
The QW2100 imager is small, lightweight and its ergonomic design is comfortable to use during daily operations. It offers snappy reading performance on most 1D bar codes and features a wide scanning angle with an extended scanning line which is perfect for capturing longer and wider bar codes typically found on utility bills and used by manufacturers of electronic parts. Additionally, the scanning line is thinner and brighter, allowing users to scan at wide angles without having to increase the scanning distance.
A specially designed stand has been created for the QW2100 imager which is light in weight, collapsible to use as a holder instead of a stand, and also has a tiltable head for various angle settings.
The QW2100 imager is available with two interface options: USB or Keyboard Wedge / RS-232 and includes various packaging options so that it can be ordered as a scanner only or as a kit equipped with a scanner, cable and stand to facilitate hands-free reading options. The Datalogic Aladdin configuration software provides user-friendly features that simplify the start-up procedure, even for inexperienced users.
Features
Wide scan angle
Laser-like thinner and extended scan line
Datalogic s patented Green Spot technology for good-read feedback
Water and Particulate Sealing Rating: IP42
Drop Resistance to 1.5 m / 5.0 ft
Uses the same cables and power supplies as the current QuickScan products
Bulk packaging available (10 scanners per box)
USB Certified Kits available
The QW2100 imager is small, lightweight and its ergonomic design is comfortable to use during daily operations. It offers snappy reading performance on most 1D bar codes and features a wide scanning angle with an extended scanning line which is perfect for capturing longer and wider bar codes typically found on utility bills and used by manufacturers of electronic parts. Additionally, the scanning line is thinner and brighter, allowing users to scan at wide angles without having to increase the scanning distance.
A specially designed stand has been created for the QW2100 imager which is light in weight, collapsible to use as a holder instead of a stand, and also has a tiltable head for various angle settings.
The QW2100 imager is available with two interface options: USB or Keyboard Wedge / RS-232 and includes various packaging options so that it can be ordered as a scanner only or as a kit equipped with a scanner, cable and stand to facilitate hands-free reading options. The Datalogic Aladdin configuration software provides user-friendly features that simplify the start-up procedure, even for inexperienced users.
Features
Wide scan angle
Laser-like thinner and extended scan line
Datalogic s patented Green Spot technology for good-read feedback
Water and Particulate Sealing Rating: IP42
Drop Resistance to 1.5 m / 5.0 ft
Uses the same cables and power supplies as the current QuickScan products
Bulk packaging available (10 scanners per box)
USB Certified Kits available
| Scanning | |
| Type Characteristics of the device. | Handheld bar code reader |
| Scanner type Indicates the type of scanner this product is. | 1D |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | Laser |
| 2D (matrix & stacked) barcodes supported The product can read matrix (2D) barcordes. | Not supported |
| Read rate (max) | 400 reads/s |
| Tilt reading angle | -45 - 45° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -70 - 70° |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | USB |
| Performance | |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP42 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 5 V |
| Power consumption | 340 mA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 170 mm |
| Depth The distance from the front to the back of something. | 65 mm |
| Height The measurement of the product from head to foot or from base to top. | 70 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 119 g |
| Packaging data | |
| Cables included | USB |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| SKU | 437924 |
| MPN | QW2120-BKK10GS |
| Brand | DataLogic |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
