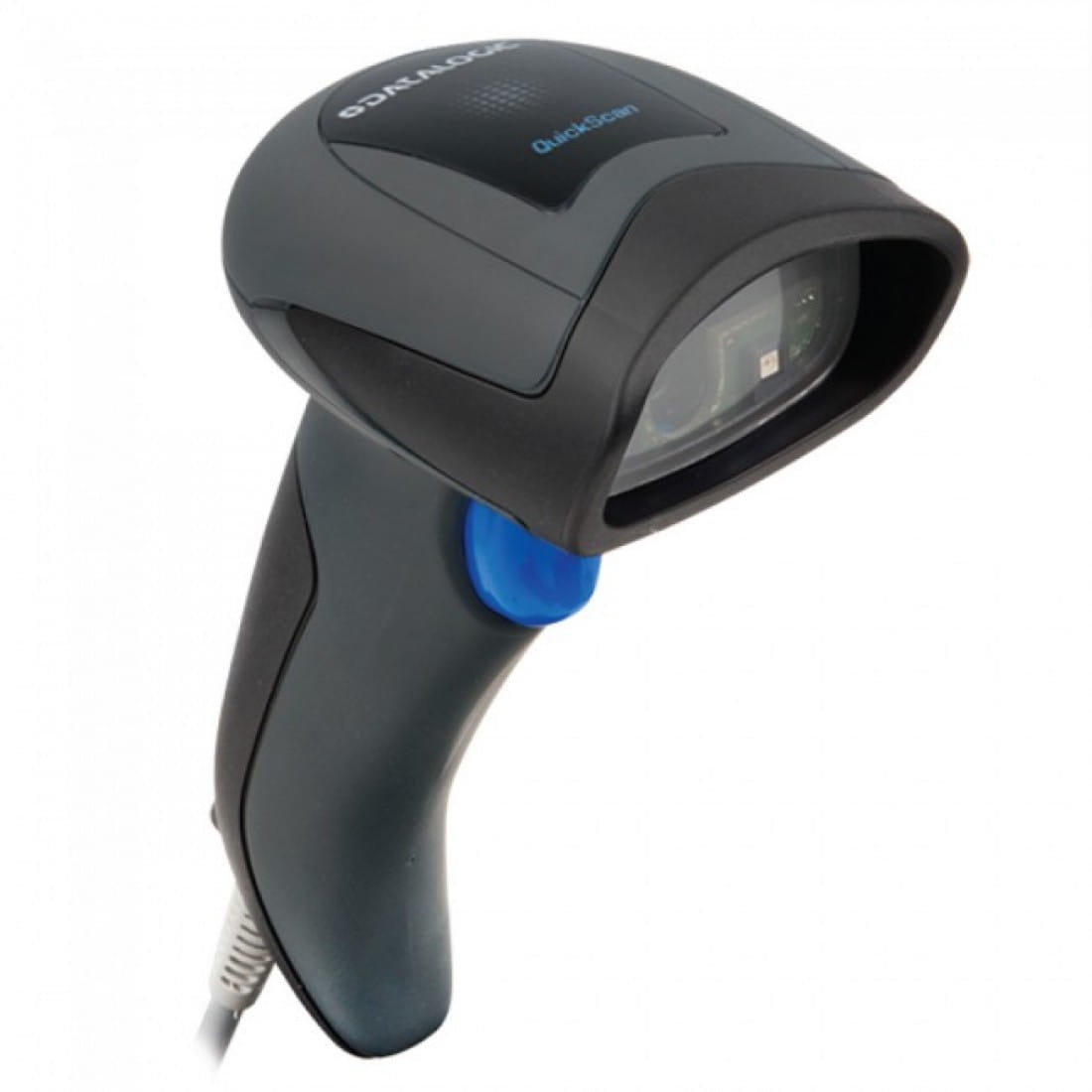

Datalogic QuickScan QD2430, Handheld bar code reader, 2D, Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, 650 nm, 0 - 360 Deg, 0 - 65 Deg
The popularity of 2D bar codes has spread across all market segments of the data capture industry. Now, with more affordable pricing and virtually no drawbacks with area imaging technology, 2D bar code readers are in high demand with features such as reading from mobile phone displays or in planning ahead for future 2D codes and imaging needs.
The QuickScan QD2400 2D imager was specifically created to address the needs of retailers and meet the market demand with outstanding omnidirectional reading performance on virtually all codes at an affordable price. Elegant design details are incorporated into a smaller, balanced lightweight enclosure without sacrificing Datalogic s well-known durability.
Ideally suited for applications at the point-of-sale (POS), the QuickScan QD2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during the daily scanning activities. It consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code. The result is a precise aiming system which contributes to low eye fatigue, yet still allows top operator efficiency.
The QuickScan QD2400 imager reads typical printed linear bar codes as well as complex 2D bar codes displayed on the screen of a mobile device or loyalty cards. The QD2400 imager provides a fast, reliable scan from an elegant and robust 2D imager.
Imaging technology meets or exceeds the productivity compared to laser scanners and provides the additional advantages of a lower cost-of-ownership and greater product reliability over the long term.
- Outstanding snappiness.
- Omnidirectional reading.
- Reduced visual stress with LED-based aiming system.
- Datalogic s patented Green Spot technology for good-read feedback.
- Advanced motion tolerance optics.
- Host download capability ready.
The QuickScan QD2400 2D imager was specifically created to address the needs of retailers and meet the market demand with outstanding omnidirectional reading performance on virtually all codes at an affordable price. Elegant design details are incorporated into a smaller, balanced lightweight enclosure without sacrificing Datalogic s well-known durability.
Ideally suited for applications at the point-of-sale (POS), the QuickScan QD2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during the daily scanning activities. It consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code. The result is a precise aiming system which contributes to low eye fatigue, yet still allows top operator efficiency.
The QuickScan QD2400 imager reads typical printed linear bar codes as well as complex 2D bar codes displayed on the screen of a mobile device or loyalty cards. The QD2400 imager provides a fast, reliable scan from an elegant and robust 2D imager.
Imaging technology meets or exceeds the productivity compared to laser scanners and provides the additional advantages of a lower cost-of-ownership and greater product reliability over the long term.
- Outstanding snappiness.
- Omnidirectional reading.
- Reduced visual stress with LED-based aiming system.
- Datalogic s patented Green Spot technology for good-read feedback.
- Advanced motion tolerance optics.
- Host download capability ready.
| Scanning | |
| Type Characteristics of the device. | Handheld bar code reader |
| Scanner type Indicates the type of scanner this product is. | 2D |
| 2D (matrix & stacked) barcodes supported The product can read matrix (2D) barcordes. | Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 650 nm |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | 0 - 65° |
| Yaw reading angle | 0 - 60° |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | USB |
| Performance | |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP42 |
| Protection features Physical effects from which the product is protected e.g. water resistant, crash proof. | Shock resistant |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| Power source type What the power source is. | DC |
| Input voltage The voltage (V) which is required to power the product. | 4.5 - 14 V |
| Power consumption | 140 mA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 41 mm |
| Depth The distance from the front to the back of something. | 91 mm |
| Height The measurement of the product from head to foot or from base to top. | 163 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 145 g |
| Packaging data | |
| Cables included | USB |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 84716070 |
| SKU | 701234 |
| MPN | QD2430-BKK1 |
| Brand | DataLogic |
| Product Condition | Brand New/Unused |
| Product Use | General |
