Datalogic PM9600-AR433RBK10, Handheld bar code reader, 1D/2D, Code 128, Code 39, GS1 DataBar, JAN, PDF417, UPC-A, UPC-E, Aztec Code, Code 39, Data Matrix, Dot Code A, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked..., 1280 x 800 pixels, 0 - 100000 lx
Bullet Proof Your Traceability Targets
The 9600 is the range-topping handheld industrial scanner in the best-selling PowerScan series from Datalogic, helping you smash your traceability targets. Achieving full traceability in manufacturing, intralogistics and retail environments is the number one priority faced by businesses today when faced with fulfilling consumer delivery demands. You need a tough device for handling the toughest jobs. This IP65 and IP67 rated scanner will withstand 2.5 m drops onto hard concrete, and the trigger is tested to resist up to 10 million hits. Even though it is impervious to dirt and water, it is wirelessly charged in its cradle. No more device failure due to grimy or corroded charging contacts. Maximum performance whilst protecting your bottom line at a great price!
Future Proof Your Connectivity
The PowerScan 9600 series of 2D barcode scanner features all the standard benefits associated with Datalogic industrial handheld scanners, but now with embedded industrial connectivity, allowing simple interfacing with a PC, Industrial PC, Tablet, or PLCs. There is no need for third part devices as the communication modules are exchangeable in the cradle, and inline for the wired version. The plug and play architecture helps to maintain network integrity, and is easily configurable between RS-232, USB, USB-C, Ethernet, Ethernet I/P or Profinet. Any future standards or changes to your networking setup are easy to switch to within a matter of minutes.
Putting Power into Your Hands

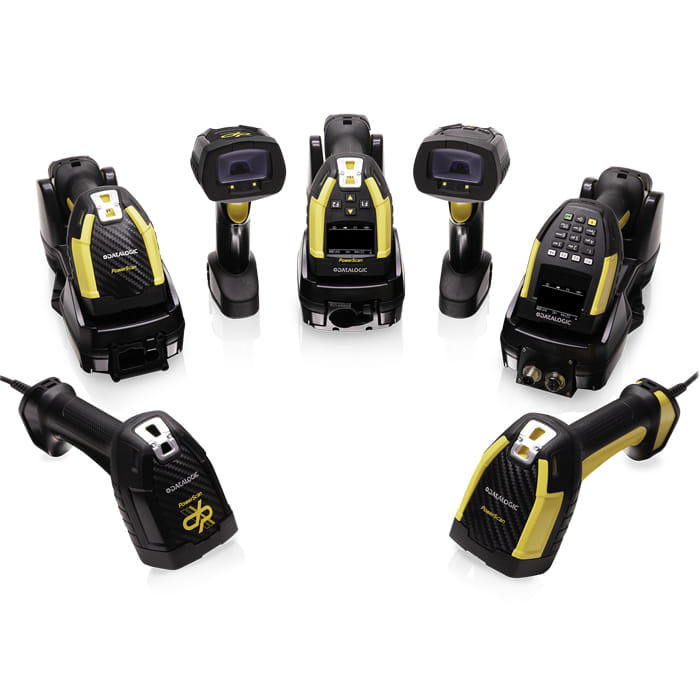

The PowerScan 9600 rugged barcode scanner range offers three different performance levels, depending on your application, with read rates 20% faster than competitive products. The Standard Range model is equipped with a single camera for capturing low density 1D and 2D codes within normal reading ranges. For longer distance reading, choose the High Performance reader with a dual camera. Finally, and unique to Datalogic, is the Document Capture model which will take color images for quality control or signatory confirmation. As with all Datalogic scanners, the 9600 Series provides gentle white light illumination and outputs a successful 'Green Spot' for a successful read, even on damaged or dirty barcodes.
Taking Wireless to The Next Level
The PowerScan PM9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System™. Bidirectional radio communication and display allow users to receive immediate feedback avoiding any risk of mistakes.
The PowerScan PBT9600 cordless model is enriched with Bluetooth® 5.0 that can be paired to any device supporting Bluetooth connections, or to the Bluetooth base station.
The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time
The 9600 is the range-topping handheld industrial scanner in the best-selling PowerScan series from Datalogic, helping you smash your traceability targets. Achieving full traceability in manufacturing, intralogistics and retail environments is the number one priority faced by businesses today when faced with fulfilling consumer delivery demands. You need a tough device for handling the toughest jobs. This IP65 and IP67 rated scanner will withstand 2.5 m drops onto hard concrete, and the trigger is tested to resist up to 10 million hits. Even though it is impervious to dirt and water, it is wirelessly charged in its cradle. No more device failure due to grimy or corroded charging contacts. Maximum performance whilst protecting your bottom line at a great price!
Future Proof Your Connectivity
The PowerScan 9600 series of 2D barcode scanner features all the standard benefits associated with Datalogic industrial handheld scanners, but now with embedded industrial connectivity, allowing simple interfacing with a PC, Industrial PC, Tablet, or PLCs. There is no need for third part devices as the communication modules are exchangeable in the cradle, and inline for the wired version. The plug and play architecture helps to maintain network integrity, and is easily configurable between RS-232, USB, USB-C, Ethernet, Ethernet I/P or Profinet. Any future standards or changes to your networking setup are easy to switch to within a matter of minutes.
Putting Power into Your Hands
The PowerScan 9600 rugged barcode scanner range offers three different performance levels, depending on your application, with read rates 20% faster than competitive products. The Standard Range model is equipped with a single camera for capturing low density 1D and 2D codes within normal reading ranges. For longer distance reading, choose the High Performance reader with a dual camera. Finally, and unique to Datalogic, is the Document Capture model which will take color images for quality control or signatory confirmation. As with all Datalogic scanners, the 9600 Series provides gentle white light illumination and outputs a successful 'Green Spot' for a successful read, even on damaged or dirty barcodes.
Taking Wireless to The Next Level
The PowerScan PM9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System™. Bidirectional radio communication and display allow users to receive immediate feedback avoiding any risk of mistakes.
The PowerScan PBT9600 cordless model is enriched with Bluetooth® 5.0 that can be paired to any device supporting Bluetooth connections, or to the Bluetooth base station.
The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time
| Scanning | |
| Type Characteristics of the device. | Handheld bar code reader |
| Scanner type Indicates the type of scanner this product is. | 1D/2D |
| Linear (1D) barcodes supported The product can read linear (1D) barcordes. | Code 128, Code 39, GS1 DataBar, JAN, PDF417, UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported The product can read matrix (2D) barcordes. | Aztec Code, Code 39, Data Matrix, Dot Code A, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417 |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | -60 - 60° |
| Yaw reading angle | -60 - 60° |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wireless |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | RF Wireless, RS-232, USB |
| Wireless range | 150 m |
| Operating frequency The rate at which an electrical current alternates, usually measured in Hertz (Hz). Also the way to note a general location on the radio frequency spectrum such as 800 MHz, 900 MHz or 1900 MHz. | 433 MHz |
| Performance | |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP65, IP67 |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Yellow |
| Power | |
| Power source type What the power source is. | Battery |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Lithium-Ion (Li-Ion) |
| Battery capacity A measure of the charge stored by the battery. Determined by the mass of active material contained in the battery. | 3350 mAh |
| Number of reads per charge | 80000 |
| Charging time The amount of time needed to charge the product. | 3.2 h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 79 mm |
| Depth The distance from the front to the back of something. | 140 mm |
| Height The measurement of the product from head to foot or from base to top. | 198 mm |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| SKU | 800099 |
| MPN | PM9600-AR433RBK10 |
| Brand | DataLogic |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
