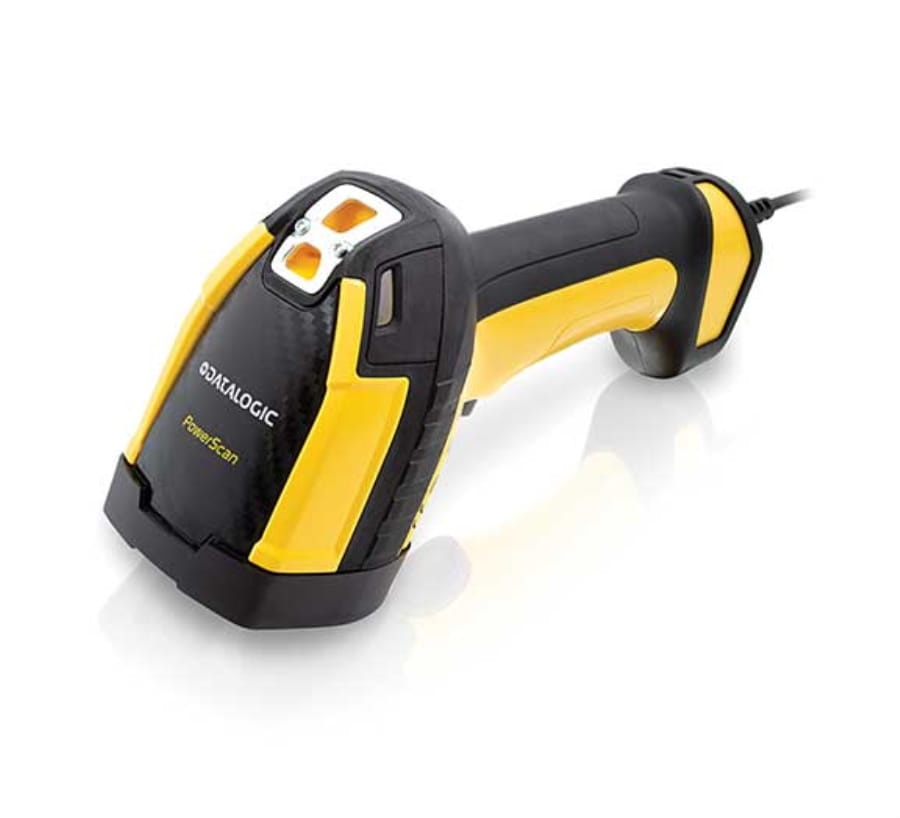

Datalogic PD9630-SRK1, Handheld bar code reader, 1D/2D, China Post, Code 128, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, UPC-A, UPC-E, Aztec Code, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, 1280 x 800 pixels, 20 cm
PowerScan PD9630-SR, Standard Range, USB Kit (Kit includes Scanner and USB Cable CAB-553)
Ultra-rugged with new balanced ergonomics
The PowerScan family of bar code readers are the ultimate industrial
handheld scanners designed and constructed to withstand the
toughest environmental conditions. The PowerScan PD9630 imagers
have an ultra-rugged design, an ergonomic shape with well-balanced
weight to reduce operator stress during daily activities and an intuitive
aiming system, allowing the highest first-pass reading rate while
reducing unnatural wrist movement.
Three optic options to fulfill any customer need
The PowerScan PD9630 area imagers are available in three different
optics, to satisfy any customer need. The Standard Range optic is
ideal for most of the applications requiring barcode reading at intuitive
distance; the High Performance optic adds the capability to decode
high density barcodes together with an increased depth of field on
standard 1D/2D codes; the Document Capture model is thought for
Wide Angle code reading and Document Capture applications.
The best feedback to the operator
The PD9630 area imagers also feature Datalogic's exclusive 3 Green
Lights (3GL™) for superior good-read feedback together with a loud
beeper and vibration. The 'Green Spot' technology directly on the
code and dual Good Read LEDs increase visibility at any angle. All
models have multi-interface capabilities featuring the most popular
interfaces: RS-232, USB and offer an optional Ethernet for standard or
industrial uses.
Datalogic's Motionix™ motion-sensing technology detects the natural
actions of the operator to automatically switch the scanner into the
desired scanning mode (handheld or presentation scanning).
Ultra-rugged with new balanced ergonomics
The PowerScan family of bar code readers are the ultimate industrial
handheld scanners designed and constructed to withstand the
toughest environmental conditions. The PowerScan PD9630 imagers
have an ultra-rugged design, an ergonomic shape with well-balanced
weight to reduce operator stress during daily activities and an intuitive
aiming system, allowing the highest first-pass reading rate while
reducing unnatural wrist movement.
Three optic options to fulfill any customer need
The PowerScan PD9630 area imagers are available in three different
optics, to satisfy any customer need. The Standard Range optic is
ideal for most of the applications requiring barcode reading at intuitive
distance; the High Performance optic adds the capability to decode
high density barcodes together with an increased depth of field on
standard 1D/2D codes; the Document Capture model is thought for
Wide Angle code reading and Document Capture applications.
The best feedback to the operator
The PD9630 area imagers also feature Datalogic's exclusive 3 Green
Lights (3GL™) for superior good-read feedback together with a loud
beeper and vibration. The 'Green Spot' technology directly on the
code and dual Good Read LEDs increase visibility at any angle. All
models have multi-interface capabilities featuring the most popular
interfaces: RS-232, USB and offer an optional Ethernet for standard or
industrial uses.
Datalogic's Motionix™ motion-sensing technology detects the natural
actions of the operator to automatically switch the scanner into the
desired scanning mode (handheld or presentation scanning).
| Scanning | |
| Type Characteristics of the device. | Handheld bar code reader |
| Scanner type Indicates the type of scanner this product is. | 1D/2D |
| Linear (1D) barcodes supported The product can read linear (1D) barcordes. | China Post, Code 128, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported The product can read matrix (2D) barcordes. | Aztec Code, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Working distance | 20 cm |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 630 nm |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | -52 - 52° |
| Yaw reading angle | -52 - 52° |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | USB |
| Performance | |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP65, IP67 |
| Protection features Physical effects from which the product is protected e.g. water resistant, crash proof. | Dirt resistant, Drop proof, Dust resistant, Electrostatic Discharge (ESD) protection, Water resistant |
| LED indicators |
 |
| Buzzer |
|
| Print contrast | 15% |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Yellow |
| Vibration function |
|
| Power | |
| Power source type What the power source is. | USB |
| Input voltage The voltage (V) which is required to power the product. | 5 - 30 V |
| Power consumption | 200 mA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 79 mm |
| Depth The distance from the front to the back of something. | 140 mm |
| Height The measurement of the product from head to foot or from base to top. | 190 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 318 g |
| Packaging data | |
| Cables included | USB |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Compliance certificates | REACH, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| SKU | 819059 |
| MPN | PD9630-SRK1 |
