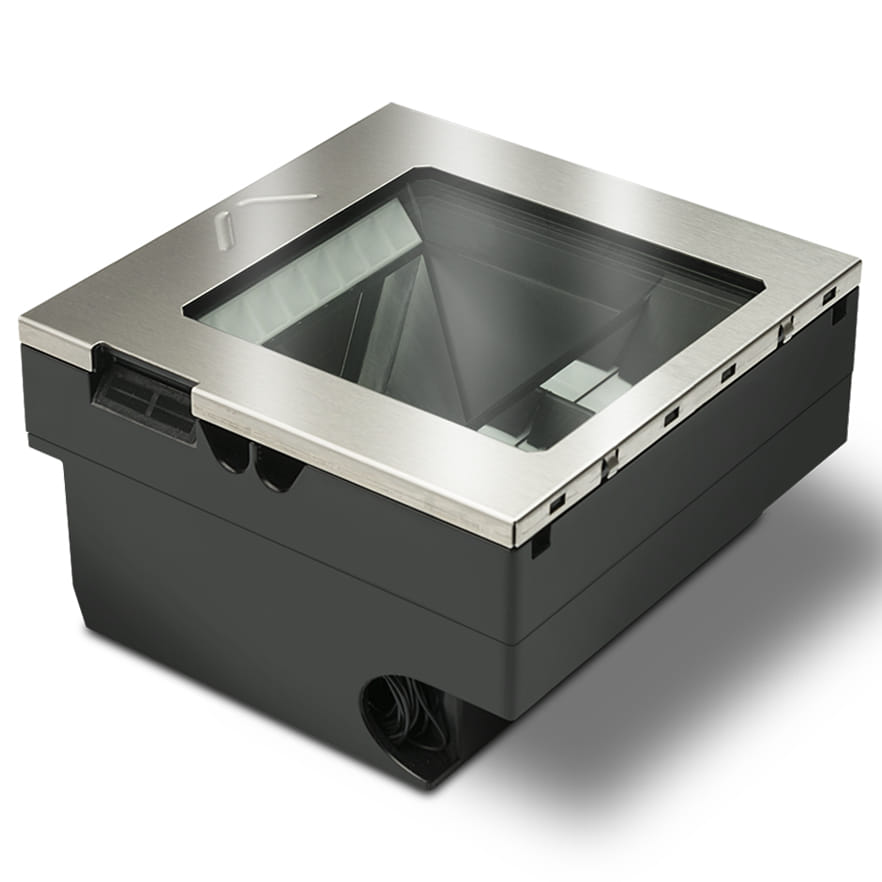

Datalogic Magellan 3510HSi, Built-in bar code reader, 1D/2D, GS1 DataBar, Aztec Code, Data Matrix, QR Code, WaterCode, 1280 x 800 pixels, 0 - 360Deg
IN-COUNTER HIGH PERFORMANCE BAR CODE READER
The Magellan 3510HSi series of scanners continue the Datalogic tradition of high performance imaging for the point-of-sale. With the same cables, mounts and exterior plastics as the Magellan 3550HSi, the 3510HSi scanner is easy to integrate into existing installations. The new electronics platform allows the M3510HSi to power from a single 5V USB connection, providing outstanding performance and easy connection to any POS system.
With a large field-of-view and the capabilities of imaging, the 3510HSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.
ENHANCING THE CUSTOMER EXPERIENCE
The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper couponsm while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
ENTERPRISE FEATURES
Remote management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
The Magellan 3510HSi series of scanners continue the Datalogic tradition of high performance imaging for the point-of-sale. With the same cables, mounts and exterior plastics as the Magellan 3550HSi, the 3510HSi scanner is easy to integrate into existing installations. The new electronics platform allows the M3510HSi to power from a single 5V USB connection, providing outstanding performance and easy connection to any POS system.
With a large field-of-view and the capabilities of imaging, the 3510HSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.
ENHANCING THE CUSTOMER EXPERIENCE
The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper couponsm while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
ENTERPRISE FEATURES
Remote management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
| Scanning | |
| Type Characteristics of the device. | Built-in bar code reader |
| Scanner type Indicates the type of scanner this product is. | 1D/2D |
| Linear (1D) barcodes supported The product can read linear (1D) barcordes. | GS1 DataBar |
| 2D (matrix & stacked) barcodes supported The product can read matrix (2D) barcordes. | Aztec Code, Data Matrix, QR Code, WaterCode |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | 0 - 65° |
| Yaw reading angle | -75 - 75° |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | RS-232, USB |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| Performance | |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP52 |
| Buzzer |
 |
| Image formats supported The type of image files that the device can use/display e.g. gif, JPEG (jpg). | BMP, JPEG |
| Ambient lighting |
|
| Print contrast | 25% |
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash) |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| Power source type What the power source is. | DC, USB |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 2.1 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 1.25 W |
| Input voltage The voltage (V) which is required to power the product. | 100 - 240 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50 - 60 Hz |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 152 mm |
| Depth The distance from the front to the back of something. | 152 mm |
| Height The measurement of the product from head to foot or from base to top. | 87 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 980 g |
| Packaging data | |
| Cables included | USB |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 10 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| SKU | 831026 |
| MPN | M3511-010210-00604 |
| Brand | DataLogic |
| Product Condition | Brand New/Unused |
| Product Use | General |
