Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store

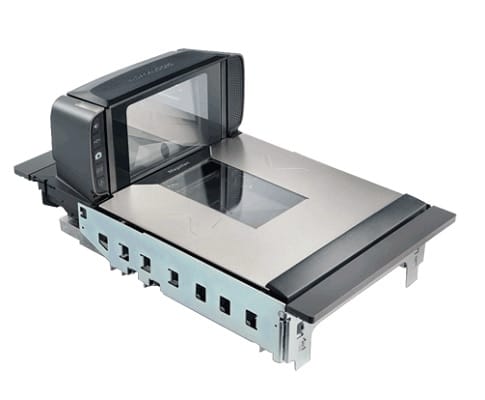

| Scan Engine | Omni-Directional Area Imager Scanner |
| Light Source | Multiple Diffused LED's. Orientation and wavelength optimized for eye comfort |
| Scan Pattern | Seamless reading of Linear and 2D codes in all planes (5 sides plus customer service scanner) |
| Scan Rate | N/A |
| Image Capture | Graphic Formats: BMP, JPEG, TIFF GreyScale: 256, 16, 2 |
| Contrast Ratio | Min. 25% |
| Resolution | 5 mil |
| Depth of field | Read Height 15.2 cm |
| Tilt Angle | 360° |
| Pitch Angle | 360° |
| Ambient Light Immunity | 0 - 86,080 lux |
| Symbologies supported | 1D:Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes 2D:Aztec Code; Data Matrix; Micro QR Code; QR Code Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MicroPDF417; PDF417; UPC A/E Composites |
| Programming Method | Magellan On-Screen Programming (OSP) configuration software is available for download at no charge. Remote Management Capabilities: WMI (OPOS and JavaPOS) and MBeans (JavaPOS) compliant Host Download: Supports IBM Director, Wavelink Avalanche™ and other ERP Management Solutions. |
| Driver available | JavaPOS Utilities are available for download at no charge. OPOS Utilities are available for download at no charge. |
| Indicators/Controls | Audio: 85dB Speaker, adjustable Tone & Volume, supports WAV file formats Visual: Good Read confirmation for all reading planes, Scale center of zero, ScaleSentry™ Event, Sensormatic EAS Status |
| Communication Type | Corded |
| Interfaces | IBM 46xx, RS232, OEM IBM USB, Powered USB, Single cable RS232 Scanner/Scale |
| I/O Ports | Powered RS232 Aux Port Powered USB host Type A x 2 EAS Controller Ports Sensormatic, Interlock Remote Scale Display port Scale Host Port |
| I/O Devices (Intergrated) | Scale (Model Dependent): Capacity: 15 kg Maximum Static weight 68 kg Minimum Increment: 0.005 kg Vibration Immunity: 4 Programmable Filter settings Adjustments required: Calibration |
| Supply Voltage | AC Input: 100-250 VAC, 50-0 Hz |
| Power Consumption | Nominal 12 Watts, Sleep mode 11 Watts |
| ESD Protection | 25 kV |
| Operating Environment | 10 ~ 40 °C RH: 5-95% Non Condensing |
| Storage Environment | -40 ~ 70 °C RH: 5-95% Non Condensing |
| EMC/Safety Standards | The product meets necessary safety and regulatory approvals for its intended use. Complete list in Quick Reference guide Complies to EU RoHS, Complies to China RoHS, Complies to R.E.A.C.H., EC1907/2006 |
| External Dimensions (WxDxH) | Width: 29.2 cm Depth Below the Counter: 10.2 cm Height Above the Counter: 13cm Length: 93/9401 Short Scanner only 35.6 cm 93/9403 Medium Scanner only 40.1 cm 93/9404 Medium Scanner/Scale 40.1 cm 93/9406Long Scanner/Scale 50.8 cm |
| Weight | Long Platter Scanner/Scale 8 Kg |
| SKU | 597184 |
| MPN | 9321140020-040431 |
| Brand | DataLogic |
| Product Condition | Brand New/Unused |
| Printer Type | None |
| Print Scan Features | Scan |
| Scanner Type | None |
| Wired/Wireless | Wired |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.datalogic.com/ |
