Datalogic Magellan 1500i, Barcode module bar barcode readers, 1D/2D, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, Aztec Code, Data Matrix, MaxiCode, QR Code, 1280 x 800 pixels, 0 86100 lx

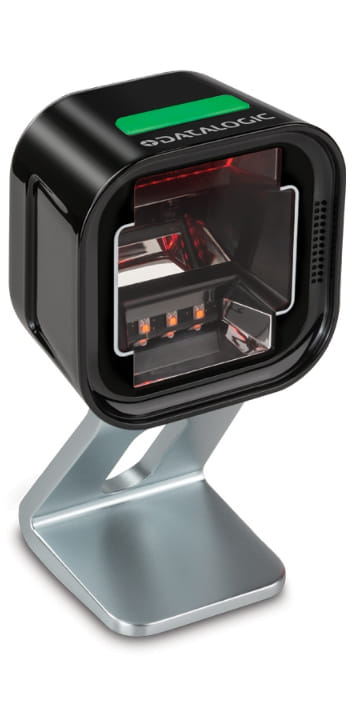

The Magellan 1500i is a high performance presentation scanner from Datalogic for a
variety of applications including retail POS, pharmacy and customer service. It provides outstanding performance on 1D and 2D barcodes from a variety of printed and mobile sources. The addition of Digimarc Barcodes watermark decoding makes this a uniquely capable scanner.
variety of applications including retail POS, pharmacy and customer service. It provides outstanding performance on 1D and 2D barcodes from a variety of printed and mobile sources. The addition of Digimarc Barcodes watermark decoding makes this a uniquely capable scanner.
| Scanning | |
| Type Characteristics of the device. | Barcode module bar barcode readers |
| Scanner type Indicates the type of scanner this product is. | 1D/2D |
| Linear (1D) barcodes supported The product can read linear (1D) barcordes. | GS1 DataBar Expanded, GS1 DataBar Omnidirectional |
| 2D (matrix & stacked) barcodes supported The product can read matrix (2D) barcordes. | Aztec Code, Data Matrix, MaxiCode, QR Code |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Light levels (direct sunlight) | 0 - 86100 lx |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | RS-232, USB |
| Performance | |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP52 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 5 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 60 mm |
| Depth The distance from the front to the back of something. | 75 mm |
| Height The measurement of the product from head to foot or from base to top. | 106 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 240 g |
| Packaging data | |
| Cables included | USB |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| SKU | 724643 |
| MPN | MG1501-10231-0200 |
| Brand | DataLogic |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
