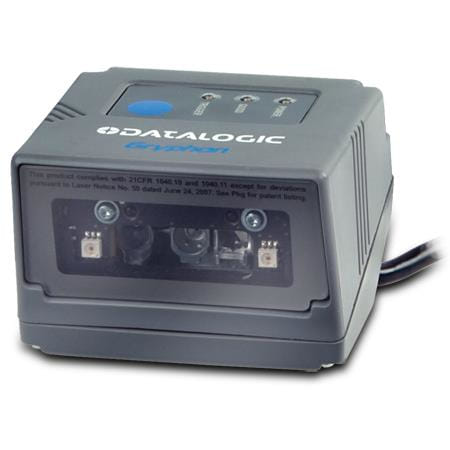

Datalogic Gryphon I GFS4400 2D, Fixed bar code reader, Laser, Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, 650 nm, 0 180 Deg, 40 40 Deg
The Gryphon 4000 series represents the premium level of data collection devices from Datalogic ADC. Using advanced imaging technology, the Gryphon GFS4400 2D fixed mount bar code reader provides a complete self contained solution for OEM use into self service kiosks, price verifiers, ticket readers, document handling, and medical laboratory applications, as well as vending machines and other automated equipment.
Designed for easy integration, the Gryphon GFS4400 2D module provides a plug and play solution for system designers. Constructed using high impact resin to withstand repeated cleanings with solvents and disinfectant solutions, the sealed enclosure meets industrial standards against water and particulates to provide dependable scanning performance.
The GFS4400 2D OEM module features outstanding near field reading, a wide angle field of view, high motion tolerance, snappy reading, and also offers excellent performance on decoding poor or damaged bar codes. As with all Gryphon readers, the GFS4400 reader offers good read visual confirmation with Datalogic s patented Green Spot technology.
User comfort is maximized with the GFS4400 OEM module s steady, deep red illumination light. Easier on the eyes than competitive products with flicker illumination, the highly visible 4 Dot aimer defines a precise reading zone and reduces accidental reads. The aimer s center cross provides a locator for targeted scanning in a multiple bar code environment.
The GFS4400 OEM module provides snappy reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes like PDF417. For mobile marketing or ticketing applications, this imager also offers excellent performance when reading bar codes from mobile devices.
The GFS4400 OEM module eliminates the need for separate equipment with signature capture and document scanning capabilities.
The GFS4400 OEM module supports several modes that can be used as a trigger. This module has the ability to automatically sense objects and trigger itself. A continuous scan mode captures data whenever a bar code passes into its field of view. The reader can also be triggered remotely through software commands or via hardware input from programmable logic controller (PLC) or sensor.
The GFS4400 OEM module supports an RS 232 serial interface or a USB (USB HID or USB COM) interface. Available in two models, the GFS4450 9 model supports an RS 232 serial interface, or the GFS4470 features a USB interface.
Features
Highly visible 4 Dot aimer with center cross for targeted scanning
Omnidirectional reading
Advanced motion tolerance optics
Image capture and document scanning capabilities
Reads bar codes down to 4mils
Reads 1D, 2D and postal codes plus stacked and composite codes
Interface options: RS 232 or USB
Datalogic s patented Green Spot for good read feedback
Integrated good read beeper
Automatic sensing or manual trigger options available
High impact resin creates a solvent tolerant enclosure
Water and Particulate Sealing Rating: IP54
Designed for easy integration, the Gryphon GFS4400 2D module provides a plug and play solution for system designers. Constructed using high impact resin to withstand repeated cleanings with solvents and disinfectant solutions, the sealed enclosure meets industrial standards against water and particulates to provide dependable scanning performance.
The GFS4400 2D OEM module features outstanding near field reading, a wide angle field of view, high motion tolerance, snappy reading, and also offers excellent performance on decoding poor or damaged bar codes. As with all Gryphon readers, the GFS4400 reader offers good read visual confirmation with Datalogic s patented Green Spot technology.
User comfort is maximized with the GFS4400 OEM module s steady, deep red illumination light. Easier on the eyes than competitive products with flicker illumination, the highly visible 4 Dot aimer defines a precise reading zone and reduces accidental reads. The aimer s center cross provides a locator for targeted scanning in a multiple bar code environment.
The GFS4400 OEM module provides snappy reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes like PDF417. For mobile marketing or ticketing applications, this imager also offers excellent performance when reading bar codes from mobile devices.
The GFS4400 OEM module eliminates the need for separate equipment with signature capture and document scanning capabilities.
The GFS4400 OEM module supports several modes that can be used as a trigger. This module has the ability to automatically sense objects and trigger itself. A continuous scan mode captures data whenever a bar code passes into its field of view. The reader can also be triggered remotely through software commands or via hardware input from programmable logic controller (PLC) or sensor.
The GFS4400 OEM module supports an RS 232 serial interface or a USB (USB HID or USB COM) interface. Available in two models, the GFS4450 9 model supports an RS 232 serial interface, or the GFS4470 features a USB interface.
Features
Highly visible 4 Dot aimer with center cross for targeted scanning
Omnidirectional reading
Advanced motion tolerance optics
Image capture and document scanning capabilities
Reads bar codes down to 4mils
Reads 1D, 2D and postal codes plus stacked and composite codes
Interface options: RS 232 or USB
Datalogic s patented Green Spot for good read feedback
Integrated good read beeper
Automatic sensing or manual trigger options available
High impact resin creates a solvent tolerant enclosure
Water and Particulate Sealing Rating: IP54
| Scanning | |
| Type Characteristics of the device. | Fixed bar code reader |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | Laser |
| 2D (matrix & stacked) barcodes supported The product can read matrix (2D) barcordes. | Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 650 nm |
| Tilt reading angle | 0 - 180° |
| Pitch reading angle | -40 - 40° |
| Yaw reading angle | -40 - 40° |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | USB |
| Performance | |
| Housing material What the casing of the product is made of. | Resin |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP54 |
| LED indicators |
 |
| Buzzer |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| Power source type What the power source is. | DC |
| Input voltage The voltage (V) which is required to power the product. | 5 V |
| Power consumption | 180 mA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 39 mm |
| Depth The distance from the front to the back of something. | 57 mm |
| Height The measurement of the product from head to foot or from base to top. | 58 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 170 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| SKU | 724640 |
| MPN | GFS4470 |
| Brand | DataLogic |
| Product Condition | Brand New/Unused |
| Product Use | General |
