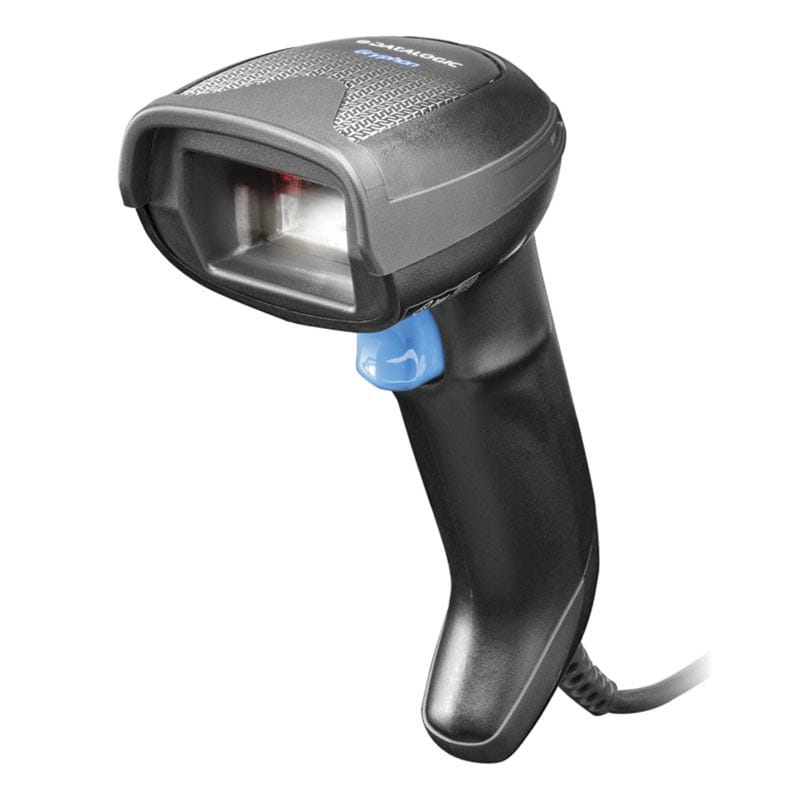

Datalogic Gryphon I GD4500, Handheld bar code reader, 1D/2D, Code 39, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, PDF417, Planet, POSTNET,..., Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, 1280 x 800 pixels, 0 - 100000 lx
The Gryphon 4500 2D series represents the premium range of hand held scanners from Datalogic. The GD4500 scanner is the desk (corded) version for general purpose applications.
The Gryphon I GD4500 imager stands out with an elegant and trendy new design, unchallenged ergonomics and features the most advanced Megapixel sensor with warm-white-illumination 2D technology for outstanding performance.
The Gryphon GD4500 imager takes advantage of Datalogic's Motionix motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering both hand held and presentation reading options.
Datalogic's reading technology with highly visible warm-white illumination is easier on the human eyes and reads colored labels much better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer's center cross provides a locator for targeted scanning in a multiple bar code environment.
The GD4500 imager is also available in a Healthcare model with disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.
The Gryphon I GD4500 imager stands out with an elegant and trendy new design, unchallenged ergonomics and features the most advanced Megapixel sensor with warm-white-illumination 2D technology for outstanding performance.
The Gryphon GD4500 imager takes advantage of Datalogic's Motionix motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering both hand held and presentation reading options.
Datalogic's reading technology with highly visible warm-white illumination is easier on the human eyes and reads colored labels much better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer's center cross provides a locator for targeted scanning in a multiple bar code environment.
The GD4500 imager is also available in a Healthcare model with disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.
| Scanning | |
| Type Characteristics of the device. | Handheld bar code reader |
| Scanner type Indicates the type of scanner this product is. | 1D/2D |
| Linear (1D) barcodes supported The product can read linear (1D) barcordes. | Code 39, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, PDF417, Planet, POSTNET, U.P.C. |
| 2D (matrix & stacked) barcodes supported The product can read matrix (2D) barcordes. | Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 650 nm |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -65 - 65° |
| Motion tolerance (cm/s) | 88.9 |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | RS-232, USB, Keyboard wedge |
| Performance | |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP52 |
| Protection features Physical effects from which the product is protected e.g. water resistant, crash proof. | Shock resistant |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Image formats supported The type of image files that the device can use/display e.g. gif, JPEG (jpg). | BMP, JPEG |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | IEC 60825 Class 2 |
| Power | |
| Power source type What the power source is. | DC |
| Input voltage The voltage (V) which is required to power the product. | 4.5 - 14 V |
| Power consumption | 300 mA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 68 mm |
| Depth The distance from the front to the back of something. | 109 mm |
| Height The measurement of the product from head to foot or from base to top. | 166 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 161 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 84716070 |
| SKU | 695249 |
| MPN | GD4590-BK-B |
