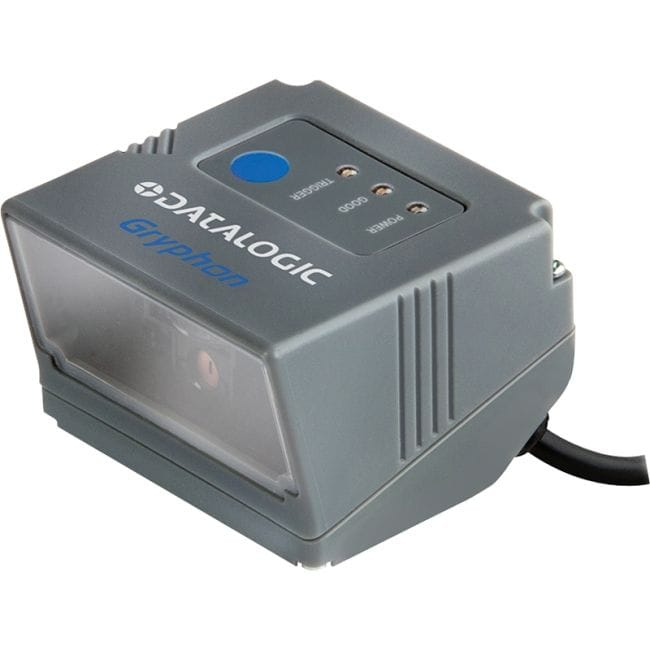

Datalogic Gryphon Fixed Mount Barcode Scanner

Fixed Mount Linear Imager Bar Code Reader
Using advanced imaging technology, the Gryphon I GFS4100 fixed mount bar code reader provides a complete self contained solution for OEM use into self service kiosks, price verifiers, ticket readers, document handling, and medical laboratory applications, as well as vending machines and other automated equipment.

Designed for easy integration, the Gryphon I GFS4100 reader provides a simple plugand play solution for system designers. Constructed using high impact resin to withstand repeated cleanings with solvents and disinfectant solutions, the sealed enclosure meets industrial standards against water and particulates to provide dependable and reliable scanning performance.

The Gryphon I GFS4100 OEM module shares the same excellent reading characteristics found in the premium line of Gryphon 4100 series of handheld devices. Featuring outstanding near field reading, a wide angle field of view, improved motion tolerance and snappy reading, it also offers integrators excellent performance on decoding poor or damaged codes. As with all Gryphon readers, the GFS4100 reader offers users additional good read visual confirmation with Datalogic s patented Green Spot technology.

The Gryphon I GFS4100 reader supports several modes that can be used as a trigger. The module has the ability to automatically sense objects and trigger itself. A continuous scan mode transmits data whenever a bar code passes into its field of view. The reader can be triggered remotely using input from programmable logic controller (PLC) or sensor.

Available in two models, the GFS4150 9 model supports an RS 232 serial interface, or the GFS4170 features a USB interface. The USB version supports both USB HID for easy integration and keyboard emulation, or USB COM for virtual serial communications.
