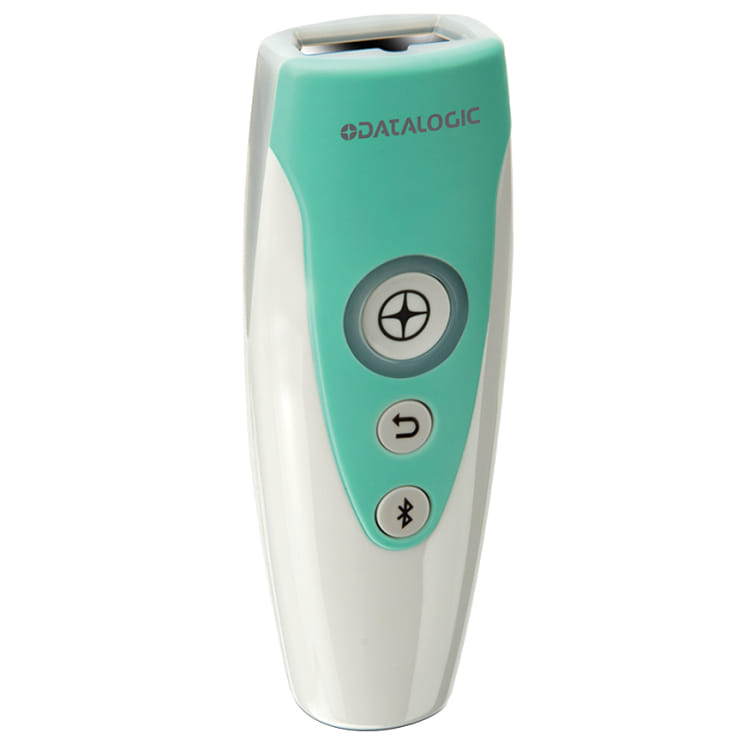

Datalogic RIDA DBT6400, Handheld bar code reader, 1D/2D, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, RM4SCC / KIX, U.P.C., Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, 650 nm, -180 - 180Deg
Datalogic
| Scanning | |
| Type Characteristics of the device. | Handheld bar code reader |
| Scanner type Indicates the type of scanner this product is. | 1D/2D |
| Linear (1D) barcodes supported The product can read linear (1D) barcordes. | GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, RM4SCC / KIX, U.P.C. |
| 2D (matrix & stacked) barcodes supported The product can read matrix (2D) barcordes. | Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 650 nm |
| Tilt reading angle | -180 - 180° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -60 - 60° |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired & Wireless |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | Bluetooth, USB |
| Wireless range | 25 m |
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 4.0 |
| Operating frequency The rate at which an electrical current alternates, usually measured in Hertz (Hz). Also the way to note a general location on the radio frequency spectrum such as 800 MHz, 900 MHz or 1900 MHz. | 2400 MHz |
| Performance | |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP50 |
| Protection features Physical effects from which the product is protected e.g. water resistant, crash proof. | Shock resistant |
| LED indicators |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Green, White |
| Power | |
| Power source type What the power source is. | Battery |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Lithium-Ion (Li-Ion) |
| Battery capacity A measure of the charge stored by the battery. Determined by the mass of active material contained in the battery. | 700 mAh |
| Battery voltage The voltage (V) of the battery. | 5 V |
| Number of reads per charge | 3000 |
| Battery life The amount of time that the battery will last for. | 5 h |
| Charging time The amount of time needed to charge the product. | 2.5 h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 112.5 mm |
| Depth The distance from the front to the back of something. | 42.3 mm |
| Height The measurement of the product from head to foot or from base to top. | 27.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 85 g |
| Packaging data | |
| Cables included | USB |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| SKU | 801326 |
| MPN | DBT6420-HC-BTK1 |
| Brand | DataLogic |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
