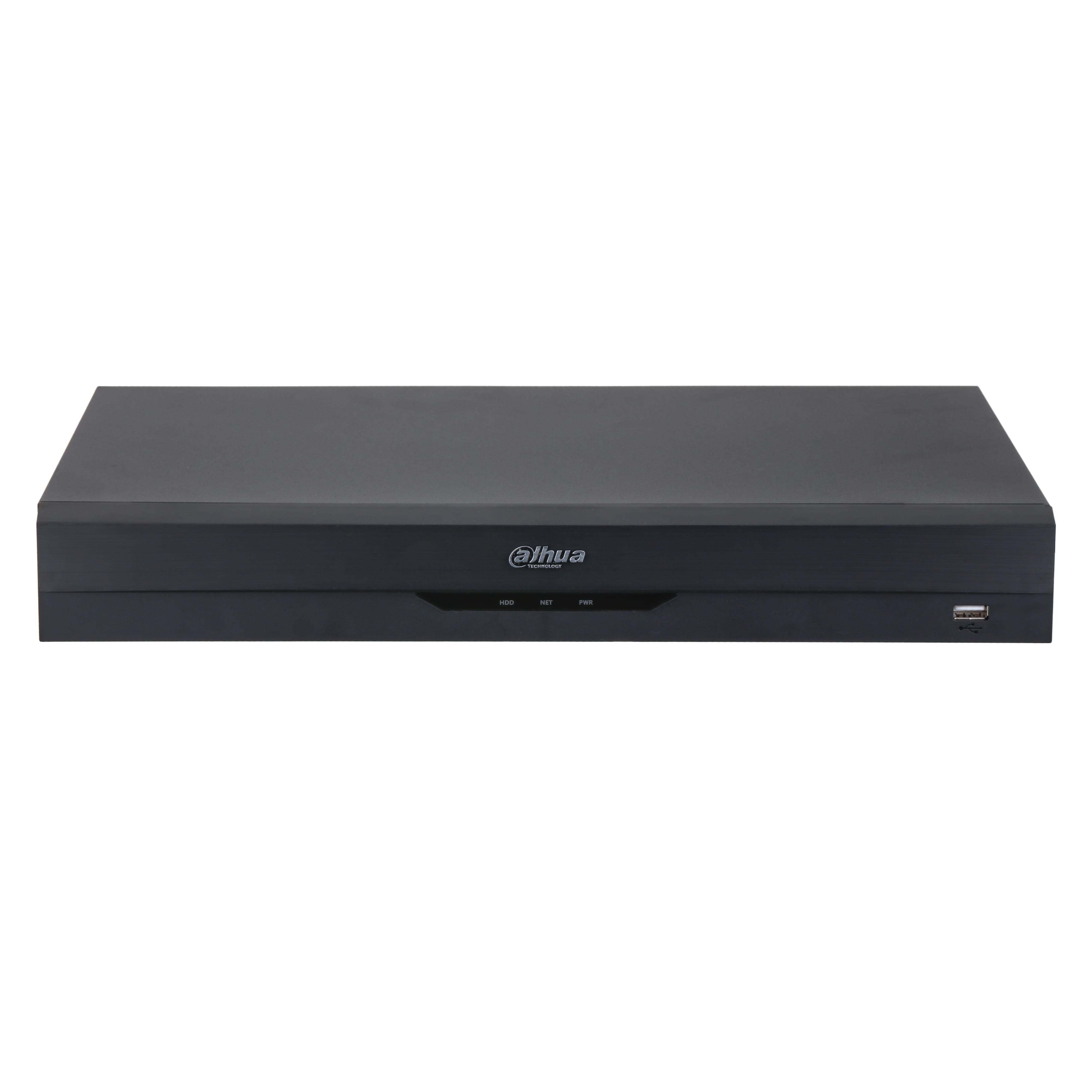

Dahua Technology DH-XVR5216A-4KL-I3, Black, 3840 x 2160 pixels, H.264, H.264+, H.265, H.265+, G.711 A-law, G.711 ?-law, PCM, 30 fps, 25 fps
| Performance | |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 3840 x 2160 pixels |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | G.711 A-law, G.711 μ-law, PCM |
| Video capturing speed | 30 fps |
| Video capturing speed (PAL) | 25 fps |
| Video capturing speed (NTSC) | 30 fps |
| Channels quantity The number of channels the device has. There can be an individual input or output for each channel. | 16 channels |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Analog signal format system The supported protocols for exchanging analog signals. | NTSC, PAL |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Embedded LINUX |
| Bit rate | 64 Kbit/s |
| Rack capacity The spase that device fill in rack. | 1U |
| Certification | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
| Ports & interfaces | |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Video RCA outputs | 1 |
| RS-485 ports | 1 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | HTTP; HTTPS; TCP / IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
| Power | |
| Power supply type The type of power supply which this product uses. | DC |
| DC voltage | 12 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 375 mm |
| Depth The distance from the front to the back of something. | 289.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 53 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.8 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 433 mm |
| Package depth The distance from the front to the back of the packaging. | 141 mm |
| Package height The distance from the top to the bottom of the packaging. | 366 mm |
| Package weight Weight of the packaged product. | 2.98 kg |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| SKU | 807740 |
| MPN | DH-XVR5216A-4KL-I3 |
| Brand | Dahua |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.dahuasecurity.com/ |
