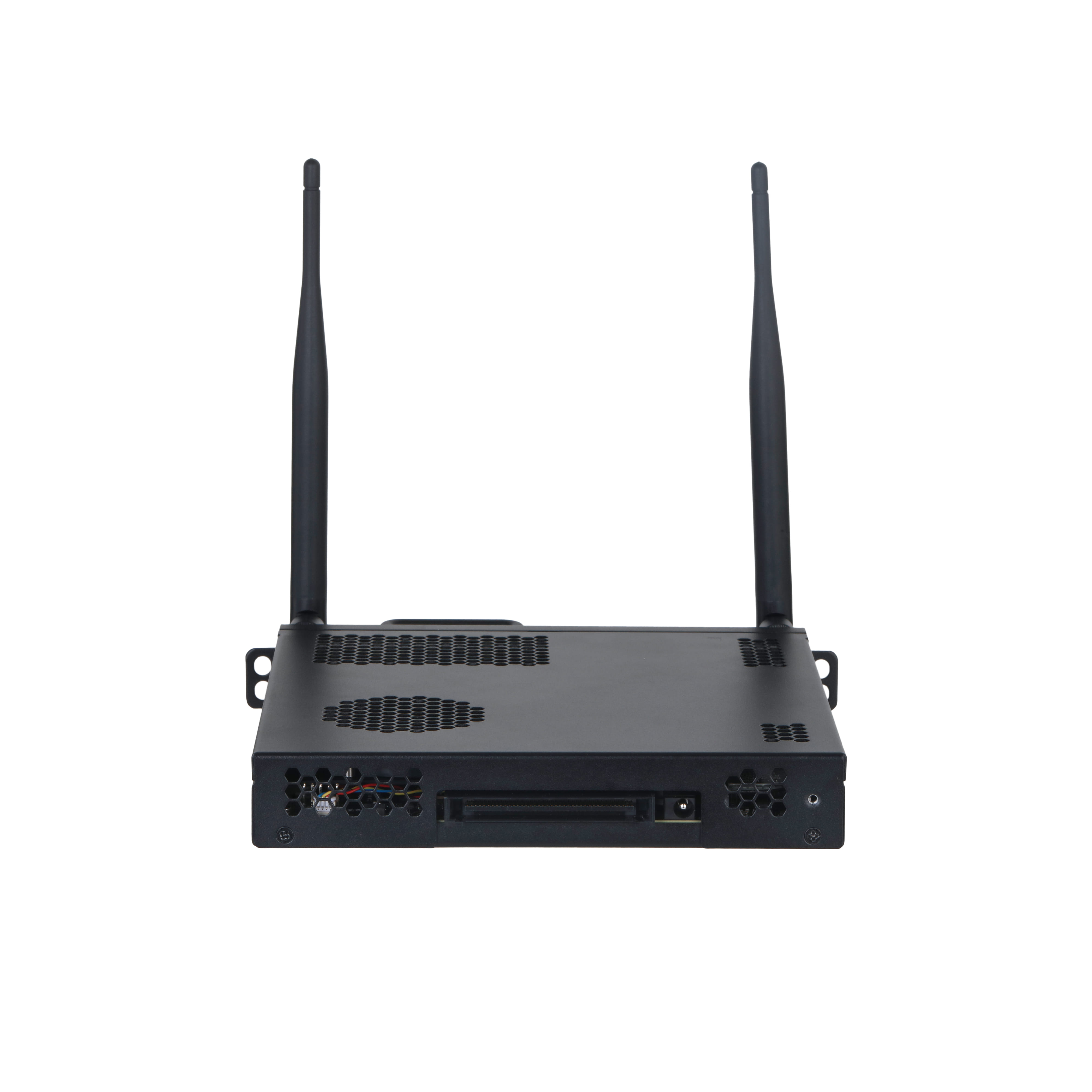

Dahua OPS Intel H510 8GB/128GB Whiteboard

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor generation	10th gen Intel® Core™ i5
Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.	3.6 GHz
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel® Core™ i5
Processor model The model number for the processor in a computer.	i5-10400T
Processor codename	Comet Lake
Thermal Design Power (TDP)	65 W
Configurable TDP-down frequency	1.3 GHz
Configurable TDP-down	25 W

Memory
Internal memory A computer's memory which is directly accessible to the CPU.	32 GB
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR4-SDRAM
Maximum internal memory The maximum internal memory which is available in the product.	32 GB
Memory layout (slots x size) The slots and size of the memory for the CPU.	2 x 16 GB
Memory slots Number and type of memory expansion slots, including connector and memory module descriptions.	2x SO-DIMM

Storage
Total storage capacity The total amount of data that can be stored on the device.	128 GB
Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).	SSD
SSD interface The type of interface(s) with which the Solid State Drive is connected to other hardware.	M.2
NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.
SSD capacity The Solid State Drive's data storage capacity.	128 GB

Graphics
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Intel® UHD Graphics 630
Discrete graphics card

Network
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Cabling technology Type of cable technology performance.	10/100/1000Base-T(X)
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).	5.0

Ports & interfaces
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.	1
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	1
HDMI version	1.4
DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.	1
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
Line-out
Microphone in The socket where a microphone is connected to the device.
DC-in jack The socket/plug where the DC electricity supply connects to the device.
USB ports quantity	7

Performance
Built-in display A display which is part of the product, so you do not need to attach another display.
Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.
Product colour The colour e.g. red, blue, green, black, white.	Black
Number of antenna connectors	2

Software
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	Windows 10

Processor special features
Enhanced Intel SpeedStep Technology
Execute Disable Bit
Idle States
Intel Trusted Execution Technology
Intel VT-x with Extended Page Tables (EPT)
Embedded options available
Intel 64
Intel Stable Image Platform Program (SIPP)
UART
Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
Intel Clear Video Technology
Intel Software Guard Extensions (Intel SGX)
Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.

Power
Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.	90 W
DC input voltage	12/19 V

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 45 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	180 mm
Depth The distance from the front to the back of something.	195 mm
Height The measurement of the product from head to foot or from base to top.	30 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	1.3 kg
Package width The distance from one side of the packaging to the other.	308 mm
Package depth The distance from the front to the back of the packaging.	123 mm
Package height The distance from the top to the bottom of the packaging.	293 mm
Package weight Weight of the packaged product.	1.7 kg

Packaging content
Manual
