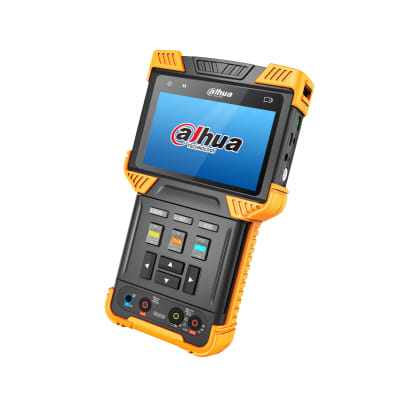

Dahua Technology DH-PFM900-E, TFT, 10.2 cm (4"), 800 x 480 pixels, Pelco-D, Gigabit Ethernet, 10,100,1000 Mbit/s
Dahua Technology DH-PFM900-E. Display: TFT, Display diagonal: 10.2 cm (4"), Display resolution: 800 x 480 pixels. PTZ protocols: Pelco-D. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Networking standards: IEEE 802.3af. USB connector type: Mini-USB B, Serial interface type: RS-485
| Display | |
| Display The description of display that can includes display type, resolution, size etc. | TFT |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 10.2 cm (4") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 800 x 480 pixels |
| Video | |
| PTZ protocols | Pelco-D |
| Ethernet LAN features | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Wireless LAN features | |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| BNC input ports Ports (sockets) to connect BNC inputs. The BNC connector (Bayonet Neill–Concelman) is a miniature quick connect/disconnect RF connector used for coaxial cable. | 1 |
| USB ports quantity | 1 |
| USB connector type The type of USB connector/port that this product has. | Mini-USB B |
| Serial interface type | RS-485 |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Yellow |
| Certification | CE FCC |
| Power | |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Lithium Polymer (LiPo) |
| Battery voltage The voltage (V) of the battery. | 7.4 V |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | 30 - 90 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 193 mm |
| Depth The distance from the front to the back of something. | 115 mm |
| Height The measurement of the product from head to foot or from base to top. | 37.1 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 540 g |
| Package weight Weight of the packaged product. | 1.4 kg |
| SKU | 774014 |
| MPN | DH-PFM900-E |
| Brand | Dahua |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.dahuasecurity.com/ |
