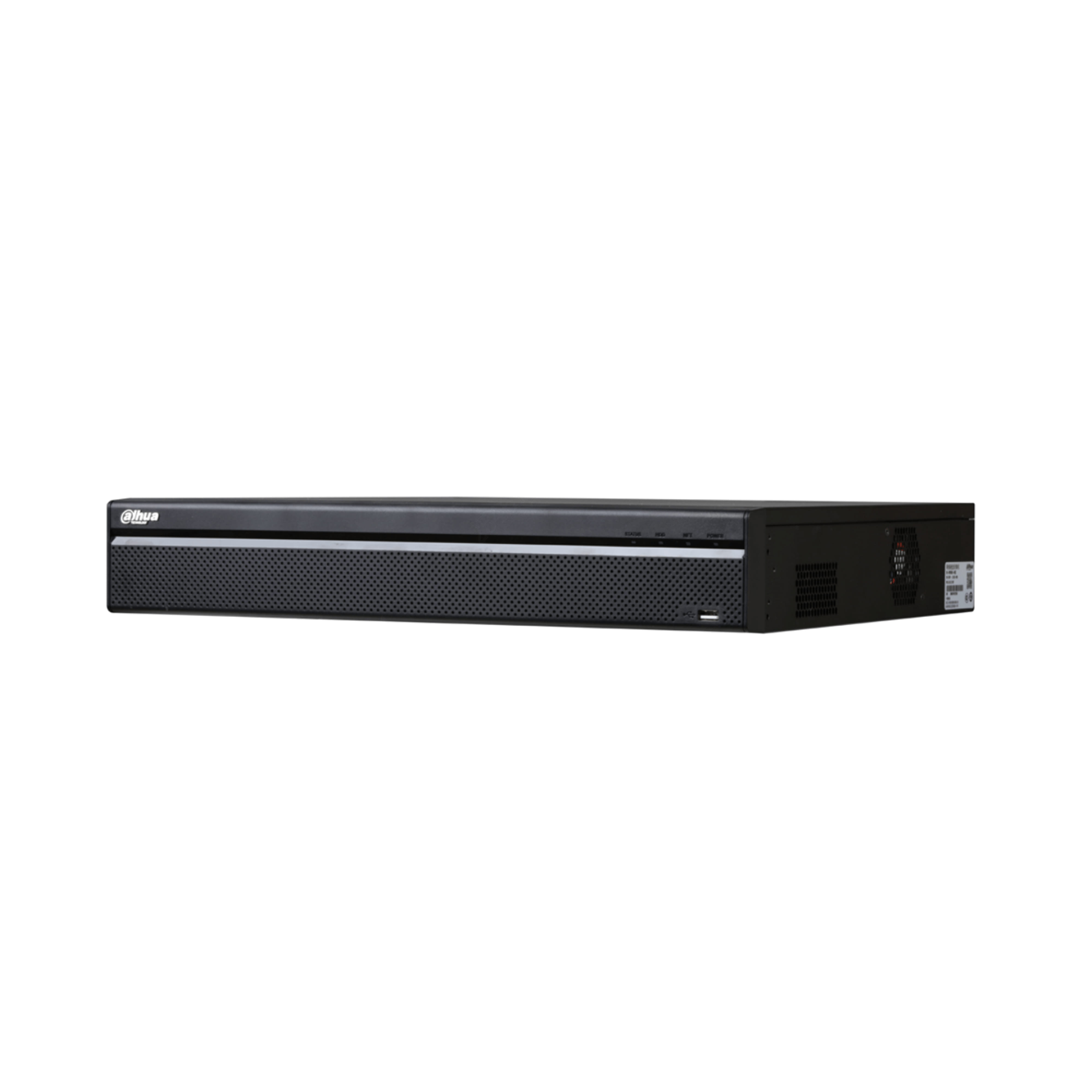

Dahua Technology Pro NVR5432 16 AI/ANZ,32CH AI,1.5U,SATA 3.5(0/4), POE(16), 3YR, 32 channels, 3840 x 2160 pixels, G.726, PCM, G.711, H.264, H.264 , H.265, H.265 , M JPEG, Embedded LINUX, 3840 - 2160, 1920 - 1080, 1280 - 1024, 1280 - 720
Dahua Technology Pro NVR5432-16-AI/ANZ,32CH AI,1.5U,SATA 3.5(0/4), POE(16), 3YR. Video input channels: 32 channels, Maximum resolution: 3840 x 2160 pixels, Audio formats supported: G.726, PCM, G.711. Maximum storage capacity: 10 TB, HDD interface: SATA III. Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE;.... Product colour: Black, Certification: CE: EN55032; EN55024; EN50130-4; EN60950-1 FCC: Part 15 Subpart B; ANSI C63.4-2014 UL: UL 60950-1. Power consumption (typical): 16.7 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz
| Performance | |
| Video input channels The number of channels for video input that the device features. | 32 channels |
| Alarm input channels | 16 |
| Alarm output channels | 6 |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Multi-screen |
 |
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | G.726, PCM, G.711 |
| Video formats supported The type of video formats that can be used by this device. | H.264, H.264+, H.265, H.265+, M-JPEG |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Embedded LINUX |
| Still image resolution(s) List of image resolutions that supported by device. | 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| PTZ control |
|
| Playback modes | Frame by Frame, Play, Forward, Stop |
| Syslog |
|
| DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network. |
|
| Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz). | 30 fps |
| Input bandwidth | 320 Mbit/s |
| Recording modes The different ways in which this device can record. | Event, Manual |
| Face detection |
|
| Wireless LAN features | |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Storage | |
| Number of HDDs supported The total number of hard drives that can be used in/with this product. | 4 |
| Maximum storage capacity The maximum amount of data that can be stored in the device. | 10 TB |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | SATA III |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Power over Ethernet (PoE) ports quantity | 16 |
| Ethernet WAN |
|
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| VGA (D-Sub) output ports | 2 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 2 |
| eSATA ports quantity The number of ports (interfaces) for eSATA. eSATA is a a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. | 1 |
| RS-485 ports | 1 |
| RS-232 interface |
|
| eSATA |
|
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, and more.) ; P2P |
| Features | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | CE: EN55032; EN55024; EN50130-4; EN60950-1 FCC: Part 15 Subpart B; ANSI C63.4-2014 UL: UL 60950-1 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 16.7 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| System requirements | |
| Mac compatibility Product can be used with Apple Mac software and/or hardware. |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Mobile operating systems supported The operating systems e.g. Android, iOS, that can be used with the mobile device. | Android |
| Browser supported List of supported browsers for this product. | Chrome; IE9 or later; Firefox |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 93% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 412.2 mm |
| Height The measurement of the product from head to foot or from base to top. | 76 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 4.3 kg |
| Package width The distance from one side of the packaging to the other. | 522 mm |
| Package depth The distance from the front to the back of the packaging. | 492 mm |
| Package height The distance from the top to the bottom of the packaging. | 200 mm |
| Package weight Weight of the packaged product. | 7 kg |
| SKU | 728834 |
| MPN | DHI-NVR5432-16P-AI/ANZ |
| Brand | Dahua |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.dahuasecurity.com/ |
