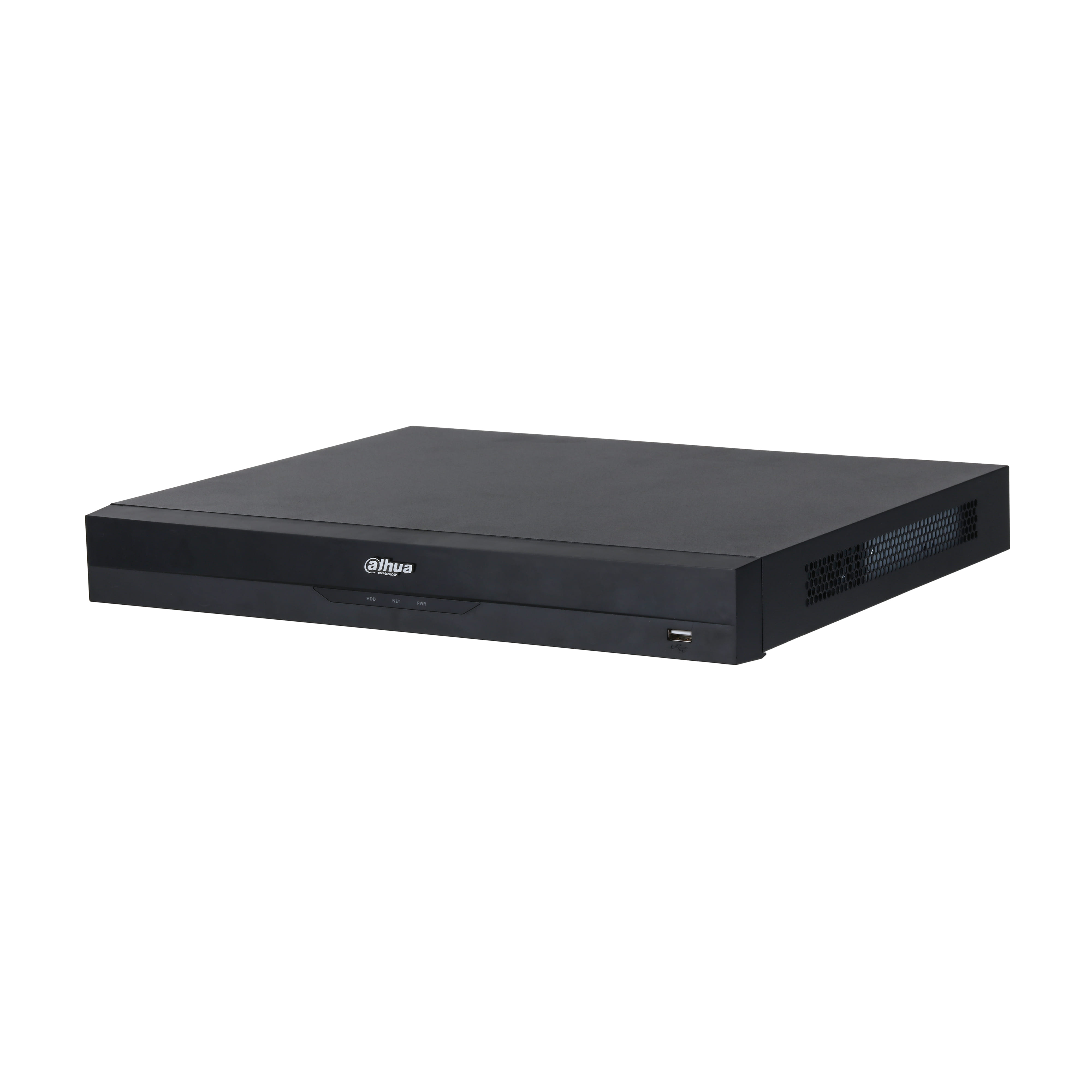

Dahua Technology WizSense NVR5216 16P AI/ANZ, 16 channels, 6528 x 4896 pixels, G.711 A law, G.711 1/4 law, G.726, PCM, H.264, H.264 , H.265, H.265 , M JPEG, Embedded LINUX, 30 fps
Dahua Technology WizSense NVR5216-16P-AI/ANZ. Video input channels: 16 channels, Maximum resolution: 6528 x 4896 pixels, Audio formats supported: G.711 A-law, G.711 ?-law, G.726, PCM. Maximum storage capacity: 16 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4/IPv6; RTSP; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE;.... Rack capacity: 1U, Product colour: Black, Certification: FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032: 2015+A1: 2020; EN IEC 61000-3-2:.... AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz, Power over Ethernet (PoE) power per port: 25.5 W
| Performance | |
| Video input channels The number of channels for video input that the device features. | 16 channels |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 6528 x 4896 pixels |
| Video motion detection |
 |
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | G.711 A-law, G.711 μ-law, G.726, PCM |
| Video formats supported The type of video formats that can be used by this device. | H.264, H.264+, H.265, H.265+, M-JPEG |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Embedded LINUX |
| Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz). | 30 fps |
| Input bandwidth | 384 Mbit/s |
| Output bandwidth | 384 Mbit/s |
| Face detection |
|
| Storage | |
| Number of HDDs supported The total number of hard drives that can be used in/with this product. | 2 |
| Maximum storage capacity The maximum amount of data that can be stored in the device. | 16 TB |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | SATA |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) ports quantity | 16 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| RS-485 ports | 1 |
| RS-232 interface |
|
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | HTTP; HTTPS; TCP/IP; IPv4/IPv6; RTSP; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration |
| Features | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Rack capacity The spase that device fill in rack. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032: 2015+A1: 2020; EN IEC 61000-3-2: 2019+A1: 2021; EN 61000-3-3:2013+A1: 2019+A2: 2021; EN 55035: 2017+A11: 2020; EN 50130-4: 2011+A1: 2014 CE-LVD: EN 62368-1: 2014 |
| Processor | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Power over Ethernet (PoE) power per port | 25.5 W |
| Total Power over Ethernet (PoE) budget | 130 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 93% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 375 mm |
| Depth The distance from the front to the back of something. | 329.3 mm |
| Height The measurement of the product from head to foot or from base to top. | 53 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.66 kg |
| Package width The distance from one side of the packaging to the other. | 449 mm |
| Package depth The distance from the front to the back of the packaging. | 170 mm |
| Package height The distance from the top to the bottom of the packaging. | 421 mm |
| Package weight Weight of the packaged product. | 3.82 kg |
| SKU | 733703 |
| MPN | DHI-NVR5216-16P-AI/ANZ |
| Brand | Dahua |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.dahuasecurity.com/ |
