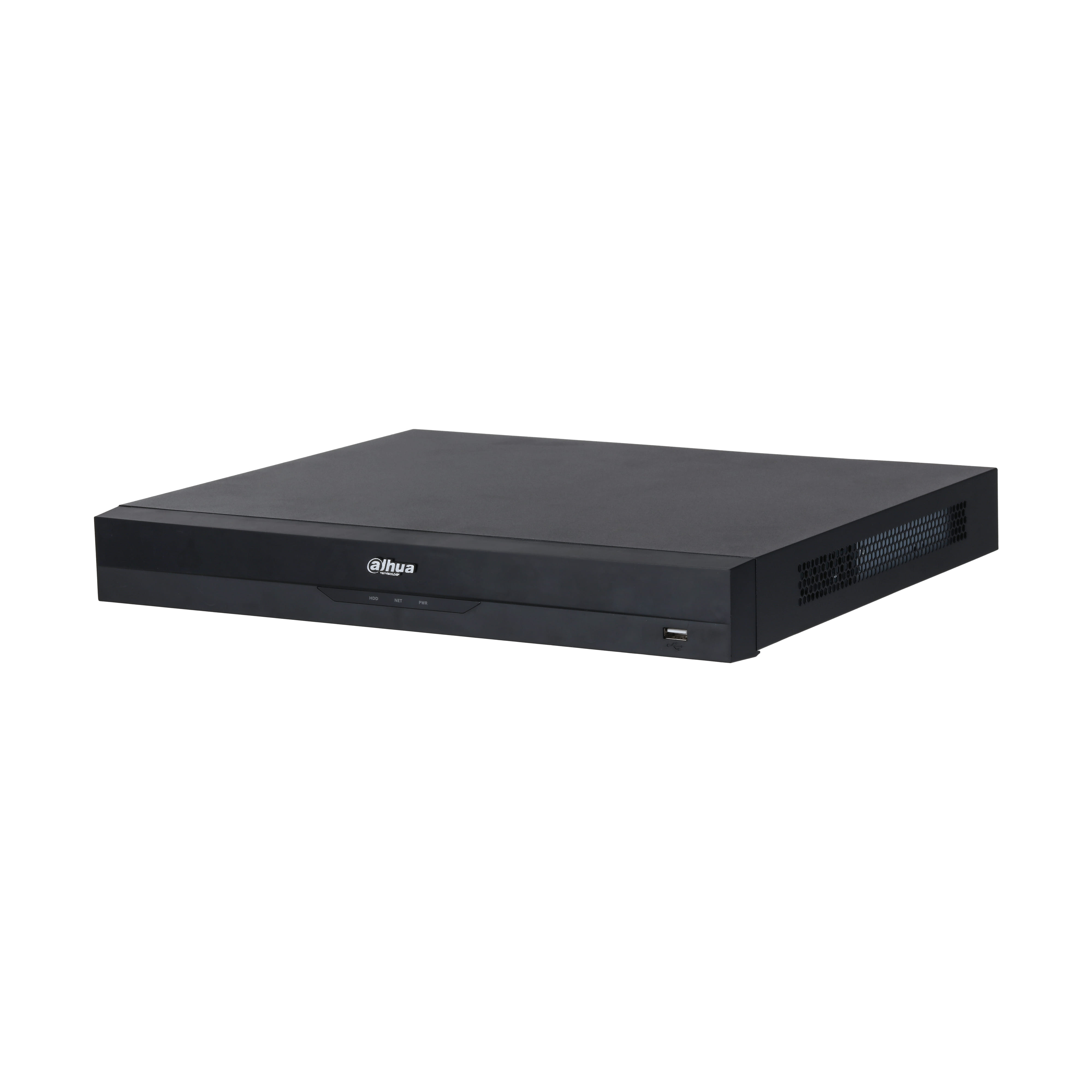

Dahua Technology WizSense NVR4216 16P AI/ANZ, 16 channels, 3840 x 2160 pixels, Embedded LINUX, 3840
Dahua Technology WizSense NVR4216-16P-AI/ANZ. Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Operating system installed: Embedded LINUX. Maximum storage capacity: 16 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s. Power consumption (typical): 10 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Width: 375 mm, Depth: 329.3 mm, Height: 53 mm
| Performance | |
| Video input channels The number of channels for video input that the device features. | 16 channels |
| Alarm input channels | 4 |
| Alarm output channels | 2 |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Multi-screen |
 |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Embedded LINUX |
| Still image resolution(s) List of image resolutions that supported by device. | 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Syslog |
|
| DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network. |
|
| Input bandwidth | 256 Mbit/s |
| Recording modes The different ways in which this device can record. | Event, Manual |
| Face detection |
|
| Wireless LAN features | |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Storage | |
| Number of HDDs supported The total number of hard drives that can be used in/with this product. | 2 |
| Maximum storage capacity The maximum amount of data that can be stored in the device. | 16 TB |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | SATA |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 16 |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Power over Ethernet (PoE) ports quantity | 16 |
| Ethernet WAN |
|
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| RS-232 interface |
|
| Features | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 10 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Power over Ethernet (PoE) power per port | 25.5 W |
| Total Power over Ethernet (PoE) budget | 130 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 93% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 375 mm |
| Depth The distance from the front to the back of something. | 329.3 mm |
| Height The measurement of the product from head to foot or from base to top. | 53 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.6 kg |
| Package width The distance from one side of the packaging to the other. | 451 mm |
| Package depth The distance from the front to the back of the packaging. | 425 mm |
| Package height The distance from the top to the bottom of the packaging. | 147 mm |
| Package weight Weight of the packaged product. | 3.8 kg |
| SKU | 733700 |
| MPN | DHI-NVR4216-16P-AI/ANZ |
| Brand | Dahua |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.dahuasecurity.com/ |
