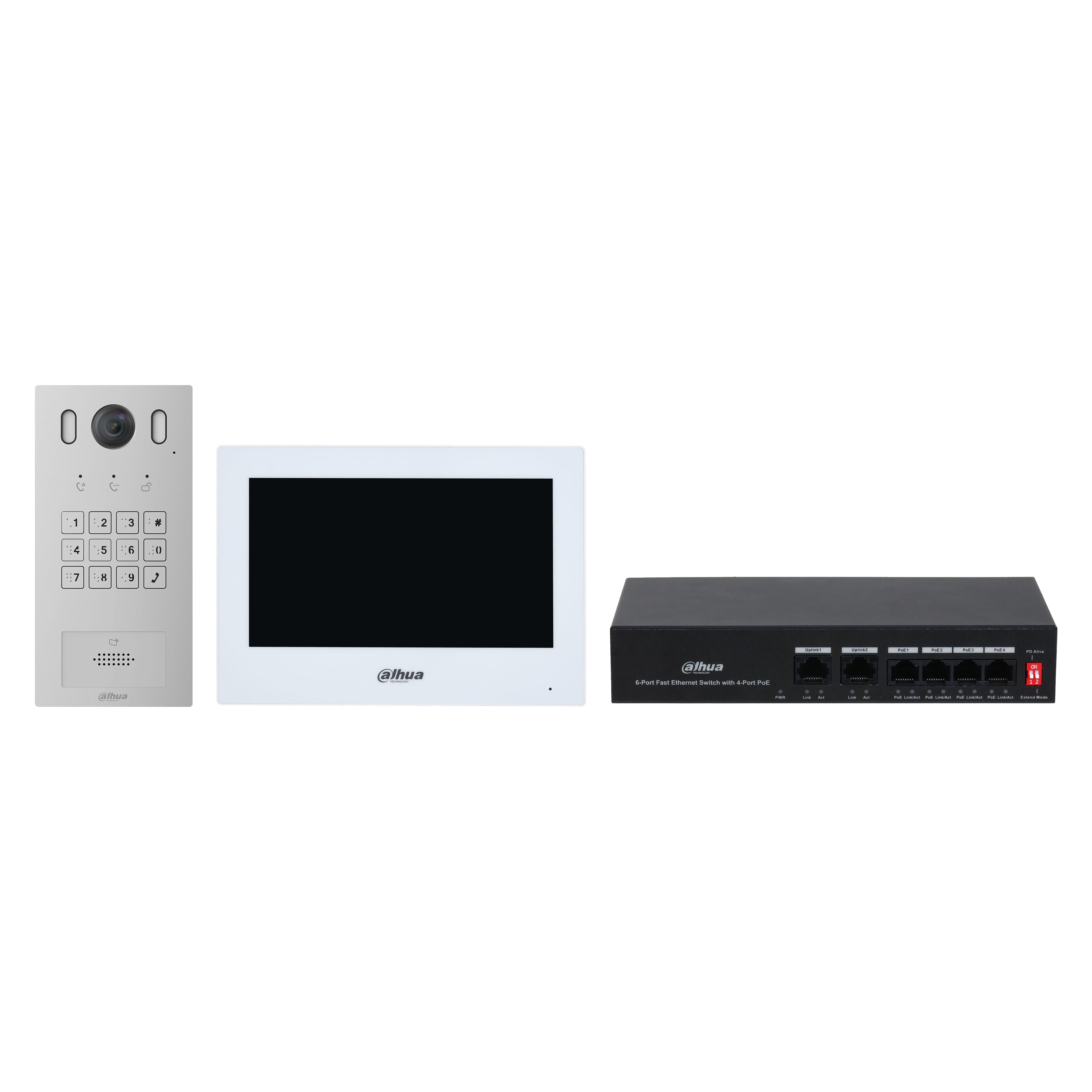

Dahua Technology KTP05(S), 17.8 cm (7"), TFT, 1024 x 600 pixels, H.264, Black, White, Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)
Dahua Technology KTP05(S). Display diagonal: 17.8 cm (7"), Display technology: TFT, Display resolution: 1024 x 600 pixels. Megapixel (approx.): 2 MP, Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Voice codecs: G.711a, G.711u, PCM. Product colour: Black, White, Housing material: Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC), Control type: Buttons. Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
| Technical details | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired & Wireless |
| Colour The main colour of the product. |
 |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.4 GHz |
| Voice codecs | G.711a, G.711u, PCM |
| Built-in microphone Microphone that is found inside the product. |
|
| Sustainability certificates | CE, Federal Communications Commission (FCC) |
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 17.8 cm (7") |
| Display technology The technology used in the display e.g. plasma, LED. | TFT |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1024 x 600 pixels |
| Video formats supported The type of video formats that can be used by this device. | H.264 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| Housing material What the casing of the product is made of. | Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC) |
| Control type The way in which the device is controlled. | Buttons |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | DNS;RTSP;SSH;SIP;RTP |
| Camera | |
| Megapixel (approx.) The number (in millions) of light-sensitive picture elements known as pixels actually used by the camera's image sensor (CCD) to record light, and which are reflected to the final number of recorded pixels stored on the memory card. | 2 MP |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.9 mm (1 / 2.9") |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 138° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 78° |
| Viewing angle, diagonal | 158° |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 6 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 2 W |
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Embedded LINUX |
| Packaging data | |
| Indoor unit included |
|
| Outdoor unit included |
|
| Indoor unit | |
| RS-485 ports | 1 |
| SKU | 777221 |
| MPN | DHI-KTP05#S |
| Brand | Dahua |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.dahuasecurity.com/ |
